DeviceNet Series Common Features
- Comply with DeviceNet specification volume I, release 2.0& volume II, release 2.0
- Support Predefined Master/Slave Connection Set (Group2 Only Server)
- I/O operating modes: Polling, Bit-Strobe, Change of State/ Cyclic
- 2500Vrms photo couple isolation on the CAN side
- Jumper or DIP switch for 120Ω terminal resistor of CAN bus
- Watchdog inside
|
|
|
|
| DeviceNet Remote I/O Unit Selection Guide |
|
|
|
CAN-8x24 series and CAN-2000D series are especially designed for combining sensors and actuators into DeviceNet network. All of them provide corresponding EDS file for standard DeviceNet master interface. The mainly differences between CAN-8x24 series and CAN-2000D series are the product size and the capabilities of expansion. CAN-8x24 series is useful for centralizing control system. It provides flexible I/O selections to match various applications. The character ‘x’ indicates how many expansion slots it has. Therefore, we provide CAN-8124/CAN-8224/CAN-8424 for 1/2/4 expansion slots. Each slot allows you plugging one I-8000/I-87K series I/O module to expansion I/O channels, and hot-swap technique is supported. CAN-2000D series is palm-size stand-along DeviceNet slave device. It specially suits for distribution control system, and can be placed in a small space even in the case of machine. For more information about these devices, please refer to the following links.
CAN-2000 Series Remote I/O Module List |
|
|
|
| DeviceNet Gateway Selection Guide |
|
|
|
The Modbus TCP/RTU and DCON protocol gateways are ready for users. This series can be used to integrate different protocol system. Users also easily update their old system to the DeviceNet system with the series. They are I-7241D, I-7242D and GW-7243D, GW-7434D.
| Models |
I-7241D |
I-7242D |
GW-7243D |
GW-7434D |
| Product Description |
DeviceNet Slave to DCON Master Gateway |
DeviceNet Slave to Modbus RTU Master Gateway |
DeviceNet Slave to Modbus TCP/RTU Master Gateway |
Modbus TCP/RTU Slave to DeviceNet Master Gateway |
| DeviceNet Interface |
| DeviceNet Connector |
1 channel (CAN_H, CAN_L), and the other is for bypass |
| DeviceNet Function |
DeviceNet slave |
DeviceNet master |
| DeviceNet Baud Rate |
125k, 250k, 500k bps |
| DeviceNet Specification |
DeviceNet specification Volume I/II, Release 2.0 |
| I/O operating modes |
Polling, Bit-Strobe, Change of State/Cycclic |
Polling |
Polling, Bit-Strobe, Change of State/Cyclic |
| Heartbeat Function |
Yes |
- |
| Shutdown Message |
Yes |
- |
| Shutdown Message |
Yes |
- |
| UART Interface |
| COM1 Connector |
RS-232 (TxD, RxD, RTS, CTS, GND) or RS-485 (Data+, Data-), Non-isolated |
RS-232 (TxD, RxD, RTS, CTS, GND), Non-isolated |
| COM1 Function |
Only for configuration |
Modbus RTU Master/Slave, VxComm |
| COM2 Connector |
RS-485 (Data+, Data-) with internal Self-Tuner ASIC; Non-isolated |
| COM2 Function |
DCON Master
(Supports Max. 15 I-7K or I-87K modules) |
Modbus RTU Master(Supports Max. 10 Modbus RTU commands) |
Modbus RTU/ASCII Master |
Modbus RTU Master/Slave, VxComm |
| Ethernet Interface |
| Ethernet |
- |
10/100 Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Ethernet Function |
- |
Modbus TCP Client |
Configuration, Modbus TCP Server, VxComm |
| Modbus Function Code |
- |
0x01, 0x 02, 0x 03, 0x04, 0x0F, 0x10 |
0x01, 0x 02, 0x 03, 0x04, 0x05, 0x06, 0x0F, 0x10 |
| System |
| WDT |
Yes (0.8 second) |
| Power Consumption |
3 W |
2.5 W |
| Power Input |
+10 VDC ~ +30 VDC |
| Dimension |
72 mm x 122 mm x 33 mm(W x L x H) |
| Operating Temperature |
-25 ℃ ~ +75 ℃ |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
|
|
|
|

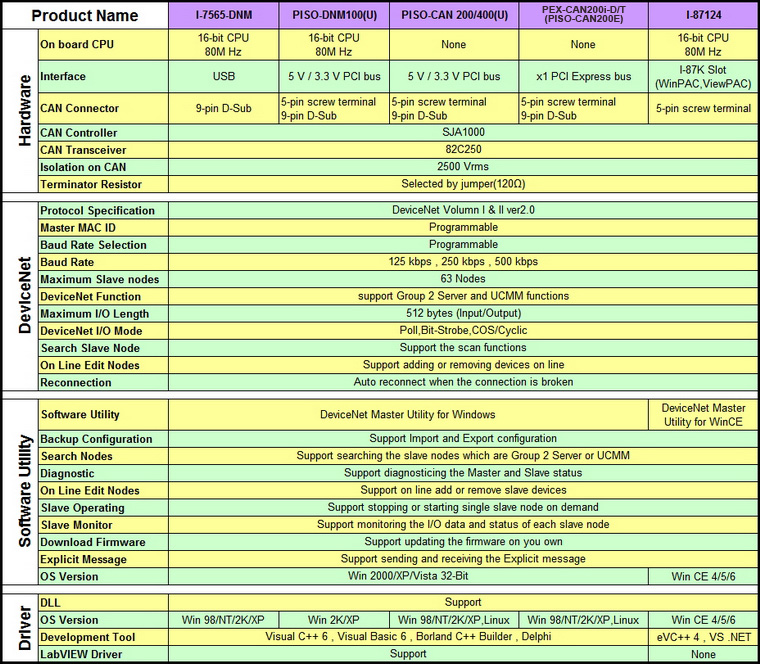

| DeviceNet Master Selection Guide |
|
|
|
Parts of DeviceNet master series are I-87124 for PACs and PISO-DNM100 for PC based. In the parts, there is a DeviceNet master kernel inside. I-7565-DNM is also master product with USB interface. These products above are built-in 80MHz 186 CPU. Therefore, they can be used in high performance system. For economical solution, we provide the PISO-CAN card with the DeviceNet master lib.
|
|
DeviceNet Master Series：
|
|
| |
|
