CAN-2024D

DeviceNet Slave Module of 4-channel 14-bit analog output

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

The CAN-2024D follows DeviceNet specification Volume I/II, Release 2.0. User can access the analog output status and set the configuration via DeviceNet EDS file. CAN-2024D has 4-channel 14-bit analog output and it can be used to various applications. By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.

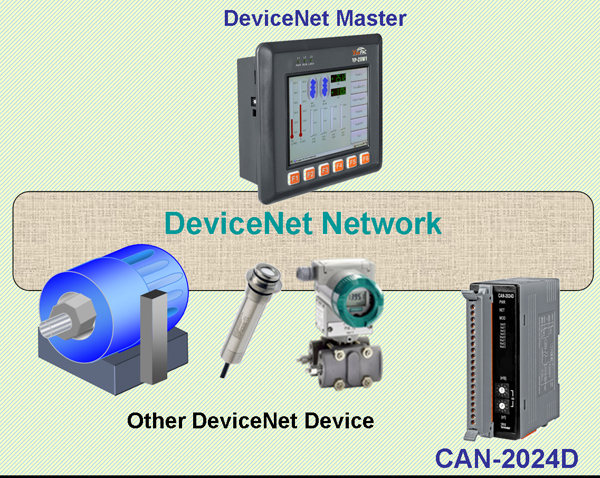

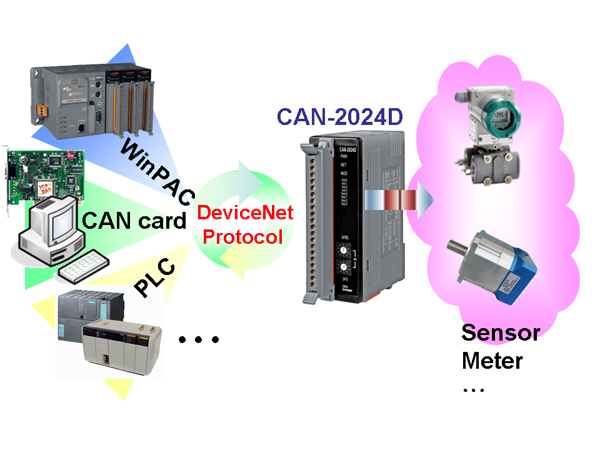

Applications

We have communicated with the following DeviceNet masters or gateways.

Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
OMRON CJ1W-DRM21
OMRON CS1W-DRM21-V1
OMRON C200HW-DRM21-V1
OMRON 3G8F7-DRM21-E

Hardware Specifications

DeviceNet Interface
DeviceNet Specification	Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
DeviceNet subscribe	Group 2 Only Server
Connection supported	1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O
Baud Rate Setting by Rotary Switch	125 kbps, 250 kbps, 500 kbps
Node ID Setting by Rotary Switch	0 ~ 63
Heartbeat message	Yes
Shutdown message	Yes
Terminal Resistor	Switch for 120 Ω terminal resistor
Connector	5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
EDS file	Yes
LED	PWR/NET/MOD
Analog Output
Channels	4
Output Type	0~ 5 V, +/- 5 V, 0~ 10 V, +/- 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Resolution	14-bit
Accuracy	+/- 0.1 % of FSR for voltage output ; +/- 0.2 % of FSR for current output
Zero Drift	Voltage: +/-30μV/°C Current: +/-0.2μV/°C
Span Drift	+/-20ppm/°C
Voltage Output Capability	10V@5mA
Max Current Load Resistance	External +24 V : 1050 Ohms
Power-Up and Safe Value	Yes
4KV ESD Protection	Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic	3000 VDC
LED
DeviceNet Status	3 LEDs for PWR/NET/MOD
Terminal Resister	1 LED as terminal resister indicators
AO LED	8 LEDs as analog output indicators
Power
Power Supply	Unregulated +10 ~ +30 VDC
Power Consumption	1.5 W
Mechanism
Installation	DIN-Rail
Dimensions	32.3 mm x 99 mm x 77.5 mm ( W x L x H )
Environment
Operating Temp.	-25 ~ 75 ℃
Storage Temp.	-30 ~ 80 ℃
Humidity	10 ~ 90% RH, non-condensing

Ordering Information

CAN-2024D

DeviceNet Slave Module of 4-channel 14-bit Analog Output
