| 1 Port Intelligent DeviceNet Multi-Slave Board |
 |
 |
| PISO-DNS100U-D |
PISO-DNS100U-T
|
|
|
|
|
The PISO-DNS100 has completed DeviceNet slave function according to DeviceNet Group 2 only server. With the built-in 80186 80M Hz CPU, this card can be applied in high transmission applications. The amazing function is that 10 slave nodes are implemented inside the PISO-DNS100. It supports up to 512 bytes of input & 512 bytes output data. DeviceNet Baud rate of 125-500 kbits/s & MACID can be set via utility setting. The PCI card also has an optically isolated DeviceNet interface.
|
|
|
|

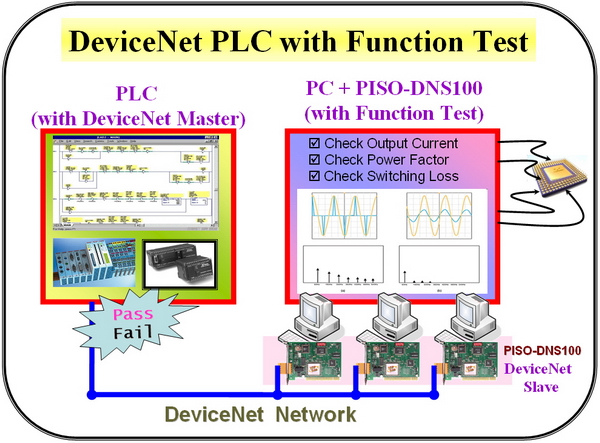

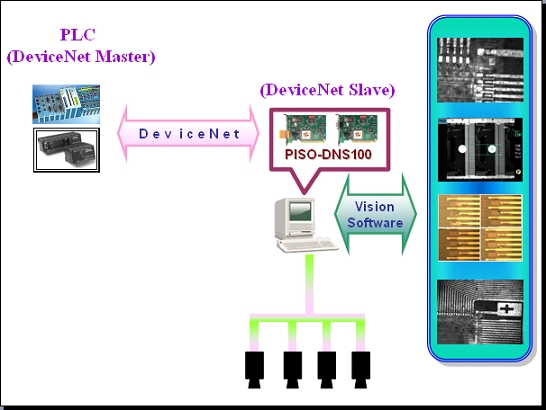

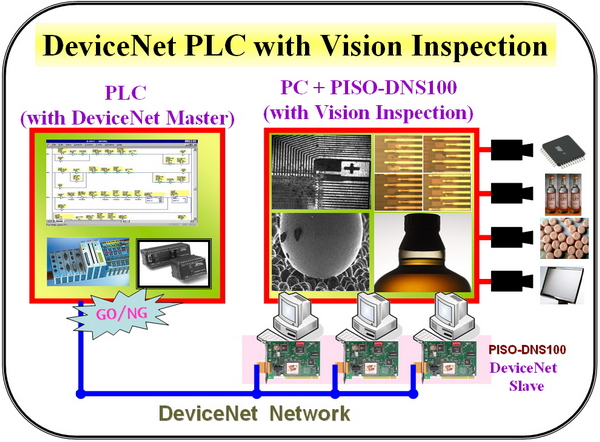

| Applications |
|
|
|
- Industrial Machinery
- Building Automation
- Medical
- Maritime
- Restaurant Appliances
- Laboratory Equipment & Research
|
|
|
|

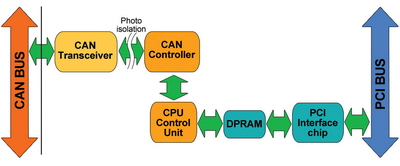

| Hardware Features |
|
|
|
|
|
|
|
| Firmware Features |
|
|
|
Firmware Feature |
Specifications |
DeviceNet Version |
DeviceNet Specification Volume I & II, Release 2.0 |
Number of Slave Nodes |
10(Max) nodes inside the board |
Baud Rate |
125K, 250K, 500K |
Support Message Groups |
Group 2 only Server |
UCMM |
Not Support |
I/O Operating Modes |
Poll, Bit-Strobe, Change of State/ Cyclic |
No. of Fragment I/O |
up to 512 bytes of input & 512 bytes output data |
MAC ID Setting |
Programmable |
Baud Rate Setting |
Programmable |
|
|
|
|

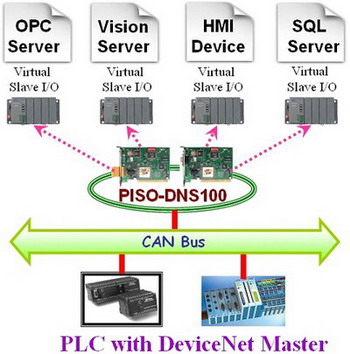

| Virtual Slave Concept |
|
|
|
|
|
|
|
| Toolkit |
|
|
|

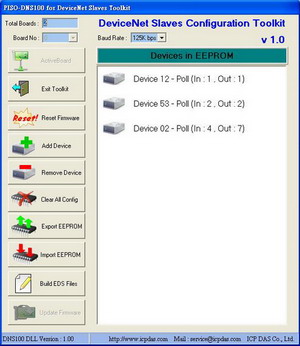

The software utility includes various useful functions.
These functions help users to manage and configure the DeviceNet virtual slave devices.
It helps the users to develop the DeviceNet virtual slave station projects easily and quickly.
The users can also develop another toolkit on your own purpose.
|
|
|
|
| LabVIEW Tool |
|
|
|
In order to apply the PISO-DNS100 to DeviceNet network with NI LabVIEW,
we provides a LabVIEW 8.0 toolkit for the purpose.
It is a useful tool to develop the DeviceNet Slave application in NI LabVIEW environment
by using PISO-DNS100. It is easy to use and can help user to rapidly reduce their
program development cycle.
Download
|
|
|
|
| Establish Connection Flowchart |
|
|
|
 |
|
|
|
| DeviceNet for LabVIEW Application Tool |
|
|
|

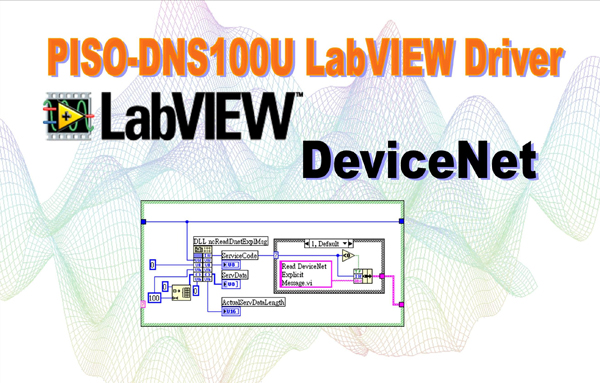

In order to develop complex DeviceNet applications, we provide a LabVIEW driver for this purpose. The PISO-DNS100(U) LabVIEW driver is the function reference to the DeviceNet slave. We provide many useful VI functions in the LabVIEW environment. We also have the "DeviceNet Slave Utility" to configure the DeviceNet hardware in your PC. The users not only operate easily and develop application rapidly, but also reduce the complexity of applications. The users can communicate with the remote DeviceNet master in a few simple steps and need not to know about the detail of the DeviceNet protocol. It is the best tool to develop various distributed systems and other industrial applications software on DeviceNet network.
|
|
|
|
| Hardware Specifications |
|
|
|
|
|
|
Bus Interface |
Type |
Universal PCI supports both 5 V and 3.3 V PCI bus |
Board No. |
By DIP switch |
CAN Interface |
Controller |
NXP SJA1000T with 16 MHz clock
Microprocessor inside with 80186 80MHz |
Transceiver |
NXP 82C250 |
Channel number |
1 |
Connector |
9-pin male D-Sub (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+, N/A for others) |
5-pin screwed terminal block (CAN_L, CAN_SHLD, CAN_H, N/A for others) |
Baud Rate (bps) |
125 k, 250 k, 500 k |
Transmission Distance (m) |
Depend on baud rate (for example, max. 1000 m at 50 kbps ) |
Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
Terminal Resistor |
Jumper for 120 Ω terminal resistor |
Specification |
ISO-11898-2, CAN 2.0A |
Protocol |
DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
LED |
Round LED |
Status LED, ERR LED |
Software |
Driver |
Windows XP/7/8/10 (32-bit/64-bit OS) |
Library |
VB 6.0, VC++ 6.0, BCB 6.0 |
Power |
Power Consumption |
300 mA @ 5 V |
Mechanism |
Dimensions |
138mm x 22mm x 105mm (W x L x H) |
Environment |
Operating Temp. |
0 ~ 60 ℃ |
Storage Temp. |
-20 ~ 70 ℃ |
Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
