The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN network, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, I-8124W can represent an economic solution of DeviceNet application and be a DeviceNet master device in the CAN bus on the DeviceNet network. It is a "Predefined Master connection Set", and supports Group 2 only Server functions to communication with slave devices. It has a independent CAN bus communication port with 5-pin screw terminal connector, and has the ability to cover a wide range of DeviceNet applications. Besides, I-8124W uses the new CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in WinPAC or ViewPAC series PAC.It is popularly applied in the industrial automation, building automation,vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-8124W module is developed for this purpose.
|
|
|
|

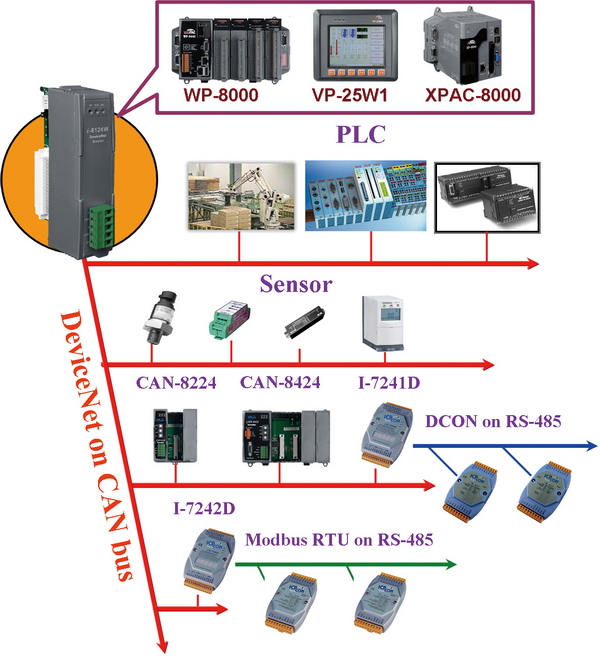

| Applications |
|
|
|
|
|
|
|

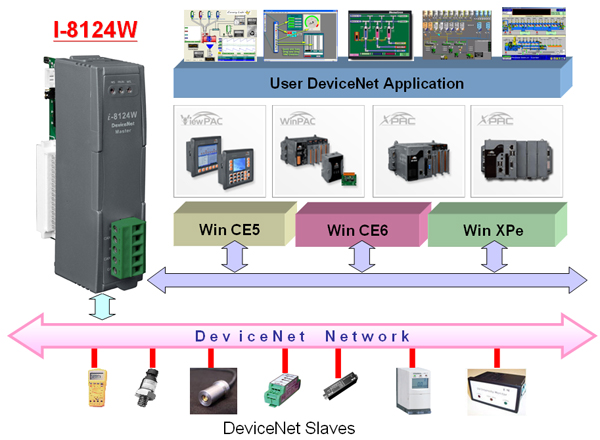

| Architecture |
|
|
|
|
|
|
|
| Features |
|
|
|
- 3 indication LEDs (Error,Status,Bus LEDs)
- Programmable master MAC ID
- Programmable transfer-rate 125K, 250K, 500K
- Support maximum nodes up to 64
- Support Group 2 and UCMM functions
- The maximum Fragment number is (Input/Output) up to 64
- Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
- Support auto-scan slave device function
- Support on-line add device into and remove device from network
- Support auto-reconnect when the connection is broken
We have communicated with the following DeviceNet slaves
- Allen-Bradley PowerFlex series DeviceNet Inverters
- BECKHOFF CX1500-B520 series DeviceNet I/O modules
- BECKHOFF BK5250 series DeviceNet I/O modules
- MKS 683 series DeviceNet exhaust throttles
- MKS MFC (Mass Flow Controller) series DeviceNet devices
- MKS DELTA II FRC (Flow Ratio Controller) DeviceNet devices
- MKS DC Power Generator (OPT- xxx) DeviceNet devices
- OMRON DRT1-ID/ODxx series DeviceNet I/O modules
- OMRON DRT2-MDxx series DeviceNet I/O modules
- COSMOS PS-7 series DeviceNet gas detectors
- CELERITY UNIT IFC-125 series DeviceNet devices
- Allen-Bradley PowerFlex AC Drives
- Allen-Bradley PowerFlex AC Drives with DriveLogix
- Allen-Bradley PowerFlex DC Drives
- OMRON DRT2-ID08(-1)/MD16
- OMRON DRT2-OD08/MD16-1
- OMRON DRT2-OD08-1
- OMRON DRT2-ID16(-1)/OD16(-1)
- OMRON GRT1-DRT
- OMRON C200HW-DRT21
- Swagelok MS-VCM-D-6-0, MS-VCM-D-6-2 DeviceNet Valve
- Swagelok SS-PTX-D-G500-S4-K DeviceNet Transducer
|
- Swagelok SS-PTX-D-G500-SM-K DeviceNet Transducer
- Weidmueller SAI-AU M12 DN 16DI/8DO
- Weidmueller SAI-AU M12 DN GW 16DI
- Weidmueller SAI-AU M12 DN AI/AO/DI
- ADVANCED ENERGY Apex RF generators and power-delivery
- SMC ITV series Electro-Pneumatic Regulator
- SMC Directional Control Valves
- SICK DME5000 series Distance Sensor
- MTS Temposonics R-Series Position Sensors
- PFEIFFER VACUUM HiPace series turbopumps
- Allen-Bradley(AB) 1769-ADN DeviceNet Adapter
- MKS Type T3B and T3P Valves With DeviceNet Interface
- ABB DSQC 350A DeviceNet/Allen Bradley remote gateway
- MTS Temposonics R-Series sensor
- MKS MicroNode I/O series module
- LINCOLN Power Wave AC/DC 1000 device
- Festo CTEU-DN Bus nodes
- MKS Baratron Type DMB Capacitance Manometer
- Sevenstar CS200/CS220 Mass Flow Controller
- Allen-Bradley(AB) E3 & E3 Plus Solid-State Overload Relay
- RF/MW Generators of DAIHEN
- KEYENCE NU-DN1
|
|
|
|
|
| Memory map of Remote I/O |
|
|
|
| There exist two memory areas, “Input Area” and “Output Area”. The input data of all DeviceNet slaves would be stored in the “Input Area” by DeviceNet master scan engine. Oppositely, the output data of those DeviceNet slaves would be in the “Output Area”. Please refer to the following figure.
Users can read a bulk data from “Input Area” in the DeviceNet Master module, like PISO-DNM100U or I-8124W. This bulk data contains multiple devices’ input statuses. If one of the input status of the remote DeviceNet slave changes, the corresponding data located in the “Input Area” would change immediately. Oppositely, the “Output Area” contains multiple devices’ output data. Users may change the output value of a certain device by changing the corresponding data located in the “Output Area”. |
|
|
|

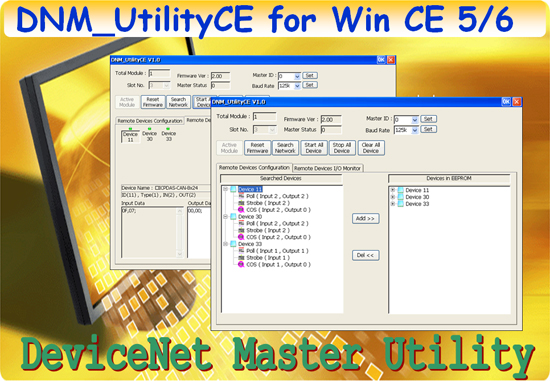

| Software Utility Features |
|
|
|
Diagnosis
This utility supports to search all devices and specific devices in the network. These functions help the users to configure the connection of the slave devices. Anymore, the software also can diagnose the remote slave devices when building the DeviceNet network.
This software supports the users to configure the I/O connection of the devices by searching devices or manual setting. After configuring the I/O connection, the information would be saved into the EEPROM. The users can export the data from the EEPROM easily. Correspondingly, the users can import the data into the EEPROM.
The software utility can easily to access the I/O data of all the slave devices. The users can monitor the input data of the specific slave device and change the output data to the remote slave device with this utility.
|
|
|
|
| Software |
|
|
|
| Item |
Description |
InduSoft Driver |
The IndoSoft is one of the famous and high performance SCADA. Nowaday, it supports the CAN, CANopen and DeviceNet driver for all the coresponding converter or master series products. [more...] |
|
|
|
|
| Hardware Specifications |
|
|
|
CAN Interface |
Controller |
NXP SJA1000T with 16 MHz clock
|
Transceiver |
NXP 82C250 |
Channel number |
1 |
Connector |
5-pin screw terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, N/A) |
Baud Rate (bps) |
125 k, 250 k, 500 k |
Transmission Distance (m) |
Depend on baud rate (for example, max. 1000 m at 50 kbps ) |
Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
Terminal Resistor |
Switch for 120 Ω terminal resistor |
Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
Protocol |
DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
Hardware |
CPU |
80186, 80 MHz or compatible |
SRAM/Flash/EEPROM |
512 KB / 512 KB / 16 KB |
Watchdog |
CPU built-in |
LED |
Round LED |
NS LED, RUN LED, MS LED |
Software |
Driver |
WinPAC, ViewPAC, XPAC-CE6 (The XPAC series PAC only support one I-8124W) |
Library |
For CE5: VB.Net, C#.Net, VC 2005 (with .Net Framework 2.0 or upper), and eVC++ 4.0
For CE6: VB.Net, C#.Net, VC 2008 (with .Net Framework 3.5 or upper) |
Power |
Power Consumption |
2 W |
Mechanism |
Dimensions |
31mm x 115mm x 91mm (W x L x H) |
Environment |
Operating Temp. |
-25 ~ 75 ℃ |
Storage Temp. |
-30 ~ 80 ℃ |
Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
| Supports MCU |
|
|
|
| WinPAC Series
ViewPAC Series
|
|
|
|
| Ordering Information |
|
|
|
|
1 Port DeviceNet Master Module with dual port RAM |
|
|
|
|
| Optional Accessories |
|
|
|
| CNT-CAN |
CAN bus Connector |
| CA-0910-C |
9-pin Female D-sub & 3-wire CAN bus cable (1M) |
| SG-770 |
7/14 channel Surge Protector |
| 4PCD-002 |
EMI Ferrite Split/Snap-On Core |
| M12A-5P-IP68 |
Field-Installation A-coded 5-pin Female |
|
|
| |
|
