    DeviceNet Embedded Device with 4 I/O Expansions




    DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for embedded network for machine control, such as textile machinery, printing machines, injection molding machinery, or packaging machines, etc. DeviceNet is a low level network that provides connections between simple industrial devices (sensors, actuators) and higher level devices (controllers). It allows direct peer to peer data exchange between nodes in an organized and, if necessary, deterministic manner. DeviceNet defines a connection-based scheme to facilitate all application communications. A DeviceNet connection provides a communication path between multiple endpoints. The endpoints of a connection are applications that need to share data.

    The CAN-8424 main unit based on the modular design offers many good features to the users and provides more flexibility in data acquisition and control system. In addition, ICP DAS also presents a CAN-8424 Utility tool to allow users to configure and create the EDS file for the specific IO modules plugged in. Therefore, users can easily apply the CAN-8424 embedded controller in DeviceNet network. The application architecture is demonstrated as follows:



    Utility

    CAN-8424 main unit can be plugged in the DCON(/I-8K/I-87K) IO modules to create a customized DeviceNet slave device and application. Before applying the CAN-8424 in DeviceNet applications, users must understand the relationship between these DeviceNet applications and assembly objects within CAN-8424 DeviceNet slave. In order to allow user to easy apply the device on the network, ICP DAS also provides the CAN-8423 Utility tool to configure the IO connection path, assembly and application objects information and create the EDS file of the device.



    Design Flowchart

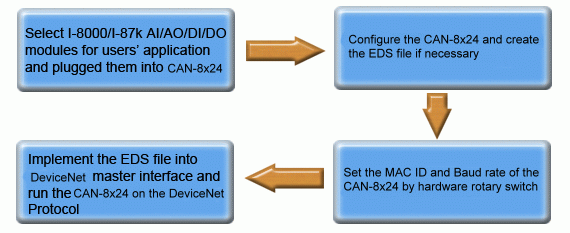

    The following simple steps show how to use CAN-8x24 in the DeviceNet protocol.



    Applications
    Diagnostic System of Wheeled Tractors Detecting Four Defect's Categories(English)
    Selection of Diagnostic Functions in a Wheeled Tractor(English)


    Features
    DeviceNet Version
    DeviceNet Specification Volume I & II, Release 2.0
    Number of Nodes
    64(Max)
    Baud Rate
    125K, 250K, 500K
    Support Message Groups
    Group 2 only Server
    UCMM
    Not Support
    I/O Operating Modes
    Poll, Bit-Strobe, Change of State/ Cyclic
    Device Heartbeat Message
    ˇ
    Device Shutdown Message
    ˇ
    Produce EDS file Dynamically
    ˇ
    No. of Fragment I/O
    128 Bytes (Max) (Input/ Output)
    MAC ID Setting
    Rotary Switch
    Baud Rate Setting
    Rotary Switch
    DeviceNet Status LED
    NET, MOD, PWR


    Hardware Specifications
    Hardware
    CPU
    80186, 80 MHz or compatible
    SRAM/Flash/EEPROM
    512 KB / 512 KB / 16 KB
    NVRAM
    31 bytes (battery backup, data valid for up to 10 years)
    RTC (Real Time Clock)
    Yes
    Watchdog
    Watchdog IC
    Expansion Slot
    4 slots
    CAN Interface
    Controller
    NXP SJA1000T with 16 MHz clock
    Transceiver
    NXP 82C250
    Channel number
    1
    Connector
    5-pin screwed terminal block (CAN_L, CAN_SHLD, CAN_H, N/A for others)
    Baud Rate (bps)
    125 k, 250 k, 500 k
    Transmission Distance (m)
    Depend on baud rate (for example, max. 500 m at 125 kbps )
    Isolation
    3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
    Terminal Resistor
    Jumper for 120 Ω terminal resistor
    Specification
    ISO-11898-2, CAN 2.0
    Protocol
    DeviceNet Volumn I ver2.0, Volumn II ver2.0
    Predefined Master/Slave Connection set
    UART Interface

    COM 1

    RS-232 (For configuration)

    COM 1 Connector

    9-pin male D-Sub (DTE: RxD, TxD, RTS, CTS, DTR, DSR, RI, GND)
    LED
    Round LED
    PWR LED, NET LED, MOD LED
    Power
    Power supply
    Unregulated +10 ~ +30 VDC
    Protection
    Power reverse polarity protection, Over-voltage brown-out protection
    Power Consumption
    2.5 W
    Mechanism
    Installation
    DIN-Rail
    Dimensions
    188mm x 132mm x 91mm (W x L x H)
    Environment
    Operating Temp.
    -25 ~ 75 ℃
    Storage Temp.
    -30 ~ 80 ℃
    Humidity
    10 ~ 90% RH, non-condensing


    Modules Support
    CAN-8424 Support Module Table

    Ordering Information
    CAN-8424-G
    DeviceNet Embedded Device with 4 empty slots


    Optional Accessories
    4PCD-002 EMI Ferrite Split/Snap-On Core
    M12A-5P-IP68 Field-Installation A-coded 5-pin Female
