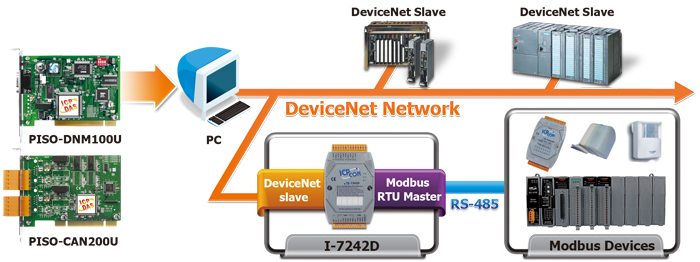

The I-7242D allows a master located on a DeviceNet network to enter into a dialogue with the slaves on a Modbus RTU network. It's a "Group 2 Only Slave" device in the DeviceNet network, and supports "Predefined Master/Slave Connection Set". From the view of the Modbus network, it is a Modbus RTU master which polls all the predefined data of the Modbus RTU slaves and bypasses the DeviceNet control commands to the Modbus slaves. This device is widely used in the application of building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc. The I-7242D also has the utility tool which is used to configure the I-7242D's parameters and build the EDS file. Through the EDS file to the I-7242D, it is easy to apply the Modbus RTU devices in DeviceNet applications.
|
|
|
|
| Applications |
|
|
|
- Control System
-
Building Automation
- Factory Automation
- Distributed
data acquisition
|
 |
|
|
|
|
| Features |
|
|
|
-
Group two only server DeviceNet
subscriber
-
Dynamic Assembly Objects Mapping
-
On-line change baud rate and MAC ID of CAN
-
NS, MS and IO LED indicators
-
7-segmemt LED to show operation mode, MAC ID,
baud rate and error code
-
Connection supported:
- "Explicit Connection"
-
"Polled Command/Response" connection
-
Bit-Strobed
Command/Response" connection
-
"Cnange-of-State / Cyclic"
connection
-
Configuration facilitated by the use of specific
EDS files
-
Dedicated Explicit message interface for full
Modbus interface
-
Explicit & I/O length: 240 bytes max.
-
Maximum number of subscribers:
10 Modbus commands
-
Communication speed: 1200,2400,4800,9600,19200,38400,57600
or 115200 bits/s, configured using Utility
-
Data bits: 8 bits, configured using Utility
-
Parity bits: None, even or odd, configured using
Utility
-
Stop bits: 1 or 2 bits, configured using Utility
|
|
|
|
| Utility |
|
|
|

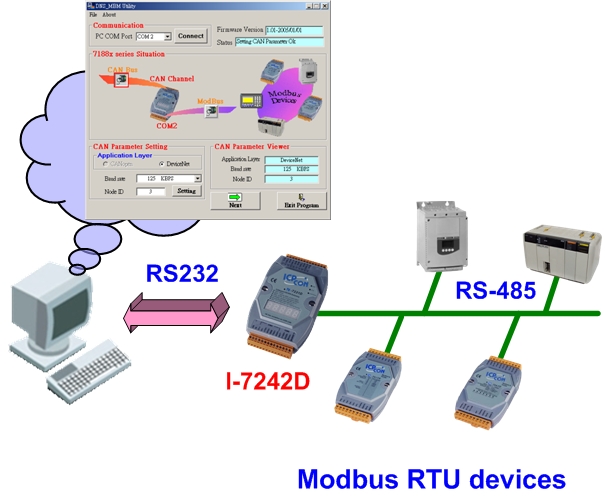

The I-7242D Utility is help users to configure the devices, and has following features:
-
Support DeviceNet node ID, baud rate
setting
-
Support Modbus RTU parameters setting
-
Show Modbus RTU devices configuration
-
Show DeviceNet application and assembly
objects configuration
-
Support DeviceNet Polling, Bit-Strobe
and COS/Cyclic Produced and Consumed connection path setting
-
Dynamic produce EDS file
|
|
|
|
| Usage |
|
|
|

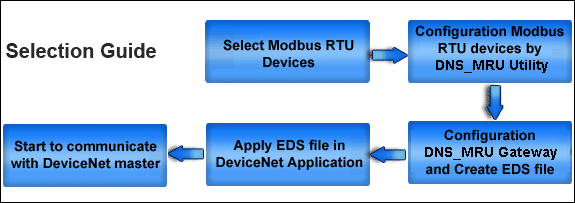

The simple steps about how to use DNS_MRU gateway are described as follows:
|
|
|
|
| Modules Support |
|
|
|
Code |
Name |
Description |
01 (0x01)
|
Read Coil Status |
Read the ON/OFF status
of discrete outputs in the slave |
02 (0x02) |
Read
Input Status |
Read
the ON/OFF status of discrete inputs in the slave |
03 (0x03) |
Read
Holding Registers |
Read
the binary contents of holding registers in the slaves |
04 (0x04) |
Read
Input Registers |
Read
the binary contents of input registers in the slaves |
15
(0x0F) |
Force Multi Coils |
Forces
each coil in a sequence of coils to either ON or OFF |
16 (0x10) |
Preset
Multi Registers |
Preset value into
a sequence of holding registers |
|
|
|
|
| Hardware Specifications |
|
|
|
Hardware |
Watchdog |
Watchdog IC |
CAN Interface |
Controller |
NXP SJA1000T with 16 MHz clock |
Transceiver |
NXP 82C250 |
Connector |
5-pin screwed terminal block (CAN_L, CAN_H, N/A for others) |
Isolation |
1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
Protocol |
DeviceNet Volume I ver2.0, Volume II ver2.0 |
UART Interface |
COM 1 |
RS-232 (For configuration) |
COM 2 |
RS-485 (Self-turner inside) |
Baud Rate (bps) |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
Data bit |
7, 8 |
Stop bit |
1, 2 |
Parity |
None, Even, Odd |
Protocol |
Modbus RTU |
LED |
Round LED |
MS LED, NS LED, IO LED |
5-digit 7 Segment |
Yes |
Power |
Power supply |
Unregulated +10 ~ +30 VDC |
Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
Power Consumption |
3 W |
Mechanism |
Dimensions |
72mm x 122mm x 33mm (W x L x H) |
Environment |
Operating Temp. |
-25 ~ 75 ℃ |
Storage Temp. |
-30 ~ 80 ℃ |
Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
| Ordering Information |
|
|
|
|
DeviceNet Slave / Modbus RTU Master Gateway |
|
DeviceNet Slave / Modbus RTU Master Gateway (RoHS) |
|
|
|
|
