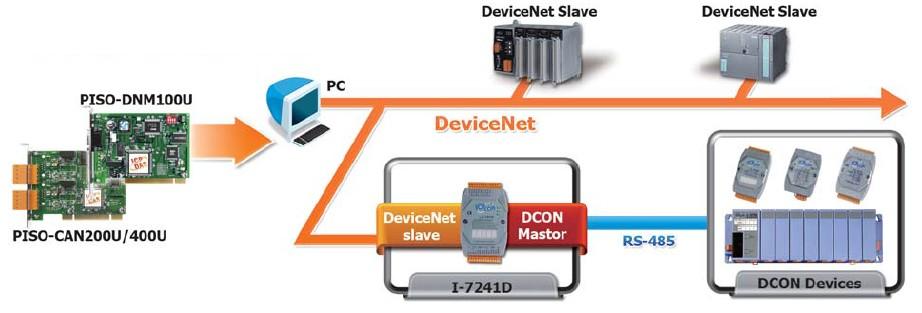

The I-7241D is the communication gateway between DeviceNet and DCON protocols. It is a DeviceNet slave device in the DeviceNet network, which functions as a "Group 2 Only Slave" device, and supports "Predefined Master/slave Connection Set". In the DCON network, the I-7241D is a DCON master and can access the data of the I-7000 or I-87k series modules. The utility software is given to configure the device parameters and build EDS file for the DeviceNet slave device. Through the I-7241D, the DeviceNet master can quickly integrate the I-7000 and I-87K series modules into the DeviceNet network.
Applications
Control System
Building Automation
Factory Automation
Distributed
data acquisition
Features
NMT: Slave
Support Predefined Master/slave Connection
Set
Dynamic Assembly Objects Mapping
Support Offline Connection Set, Device Heartbeat
message and Device Shutdown message
Provide Assembly object
Dynamic Product EDS File
I/O operating modes: Polling, Bit-Strobe, Change
of State/Cyclic
Support max 15 I-7K/I-87K IO modules
Explicit & I/O length: 240 bytes max.
Provide friendly Utility to configure
Baud Rate: 125Kb, 250Kb, 500Kb
On-line change baud rate and MAC ID of CAN
7-segmemt LED to show operation mode, MAC ID,
baud rate and error code

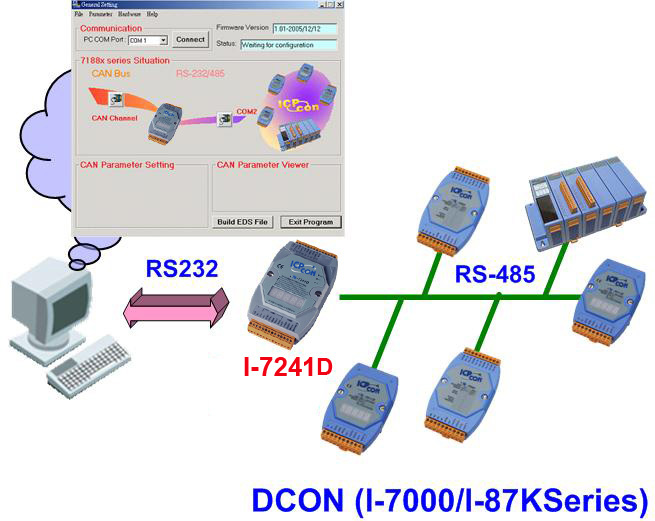

Utility
The I-7241D Utility is help
users to configure the modules, and has following features:
Support auto-scan I-7K/I-87K modules
Auto-scan I-7k/I-87K modules connected with
I-7241D COM Port
Show I-7k/I-87K modules configuration
Show Application and Assembly Objects configuration
Support IO connection path setting
Support EDS file creating
Usage

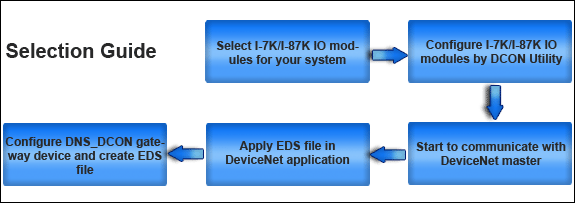

The simple steps
about how to use DNS_DCON gateway are described as follows:
.jpg)
