    CAN-2088D

    DeviceNet Slave Module of 8-Channel PWM and 8-Channel High Speed Counter


    PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. It uses digital outputs to generate a waveform with variant duty cycle and frequency to control analog circuits. CAN-2088D is a PWM slave module of DeviceNet protocol. It has 8 PWM output channels and 8 high speed counter channels. It can be used to develop powerful and cost effective analog control system.



    Applications
    • Controlling the position/speed of motors
    • Dimming the brightness of lamps
    • Controlling the speed of fans
    • High speed counter

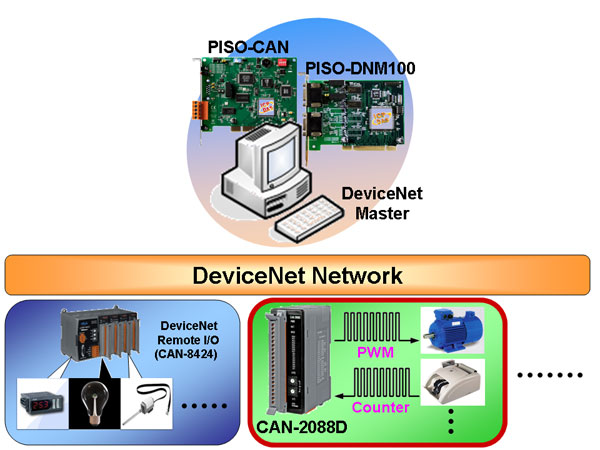

    We have communicated with the following DeviceNet masters or gateways.

    1. Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
    2. OMRON CJ1W-DRM21
    3. OMRON CS1W-DRM21-V1
    4. OMRON C200HW-DRM21-V1
    5. OMRON 3G8F7-DRM21-E


    Hardware Specifications
    DeviceNet Interface
    DeviceNet Specification
    Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
    DeviceNet subscribe
    Group 2 Only Server
    Connection supported
    1 connection for Explicit Messaging
    1 connection for Polled I/O
    1 connection for Bit-Strobe I/O
    Baud Rate Setting by Rotary Switch
    125 kbps, 250 kbps, 500 kbps
    Node ID Setting by Rotary Switch
    0 ~ 63
    Heartbeat message
    Yes
    Shutdown message
    Yes
    Terminal Resistor
    Switch for 120 Ω terminal resistor
    Connector
    5-pin screwed terminal block
    (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
    EDS file
    Yes
    LED
    PWR/NET/MOD
    PWM
    Channels
    8 (Source)
    Output Max. Load Current
    1 mA
    Frequency
    0.2 ~ 500 kHz (non-continuous)
    Scaling Resolution
    16-bit (1 ~ 128 μs for each step)
    Duty Cycle
    0.1 ~ 99.9 %

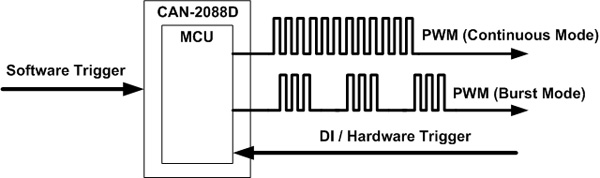

    PWM Mode
    Burst mode, Continuous mode
    Burst mode counter
    1~65535 counts
    Trigger Mode
    Hardware (Start and Stop) or Software (Start and Stop)
    Intra-module Isolation
    3750 Vrms
    ESD Protection
    4 kV Contact for each channel
    Digital Input
    Channels
    8 (Sink/Source)
    ON Voltage Level
    +5.5 ~ +30 V
    OFF Voltage Level
    <3.5 V
    Counter Frequency
    500 kHz max.
    Max. Counts
    32-bits (4,294,967,295)
    Input Impedance
    4.7 kΩ, 1/4 W
    Intra-module Isolation
    3750 Vrms
    ESD Protection
    4 kV Contact for each channel
    LED
    DeviceNet Status
    3 LEDs for PWR/NET/MOD
    Terminal Resister
    1 LED as Terminal Resister indicators
    PWM LED
    8 LEDs as PWM Output indicators
    DI LED
    8 LEDs as Digital Input indicators
    Power
    Power Supply
    Unregulated +10 ~ +30 VDC
    Power Consumption
    2 W
    Mechanism
    Installation
    DIN-Rail
    Dimensions
    32.3 mm x 99 mm x 77.5 mm ( W x L x H )
    Environment
    Operating Temp.
    -25 ~ +75 ℃
    Storage Temp.
    -30 ~ +80 ℃
    Humidity
    10 ~ 90% RH, non-condensing


    Ordering Information
    CAN-2088D
    DeviceNet module of 8-channel PWM and 8-channel High Speed Counter


    Optional Accessories
    8-channel Digital Output and 8-channel Counter Input Board, including DB-8820 Daughterboard and a CA-2520D Cable.


    Related Products
    DeivceNet Master Library Support PISO-CAN serials, PEX-CAN serials and PCM-CAN with DeviceNet master library
    PISO-DNM100U-D
    PISO-DNM100U-T    		 1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside for universal PCI bus
    I-7565-DNM-G CR USB/DeviceNet Master communication Converter with D-sub 9-pin connector
    I-8124W 1 Port DeviceNet Master Module with dual port RAM
    I-87124 1 Port High Performance DeviceNet Master Module
    CA-0910-C 9-pin Female D-sub & 3-wire CAN bus cable (1M)
