    CAN-2054D

    DeviceNet Slave Module of 8-Channel Isolated Digital Input and 8-Channel Isolated Digital Output



    DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

    The CAN-2054D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital I/O status and set the configuration via DeviceNet EDS file. This module has 8-channel isolated sink/source input and 8-channel isolated sink output. It can be applied to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.

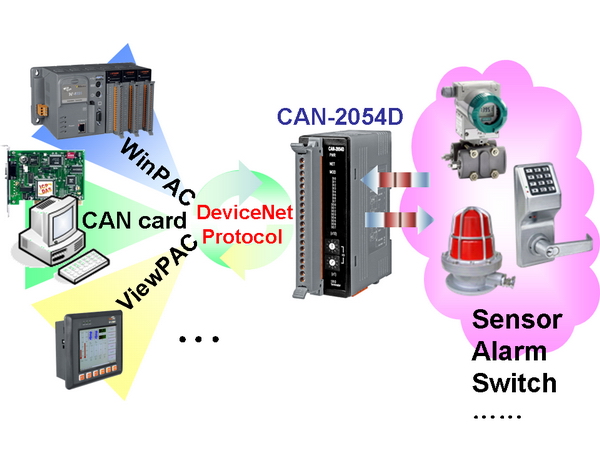

    Applications

    We have communicated with the following DeviceNet masters or gateways.

    1. Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
    2. OMRON CJ1W-DRM21
    3. OMRON CS1W-DRM21-V1
    4. OMRON C200HW-DRM21-V1
    5. OMRON 3G8F7-DRM21-E


    Hardware Specifications
    DeviceNet Interface
    DeviceNet Specification
    Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
    DeviceNet subscribe
    Group 2 Only Server
    Connection supported
    1 connection for Explicit Messaging
    1 connection for Polled I/O
    1 connection for Bit-Strobe I/O
    Baud Rate Setting by Rotary Switch
    125 kbps, 250 kbps, 500 kbps
    Node ID Setting by Rotary Switch
    0 ~ 63
    Heartbeat message
    Yes
    Shutdown message
    Yes
    Terminal Resistor
    Switch for 120 Ω terminal resistor
    Connector
    5-pin screwed terminal block
    (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
    EDS file
    Yes
    LED
    PWR/NET/MOD
    Digital Input
    Channels
    8 (Sink/Source)
    On Voltage Level
    +3.5 ~ +30 VDC
    Off Voltage Level
    +1 VDC Max.
    Input Impedance
    3 kΩ, 0.3 W
    Intra-module Isolation
    3750 Vrms
    ESD Protection
    4 kV Contact for each channel
    Digital Output
    Channels
    8 (Sink)
    Load Voltage
    +5 ~ +30 VDC
    Output Max Load Current
    700 mA per channel
    Output Type
    Open Collector
    Intra-module Isolation
    3750 Vrms
    ESD Protection
    4 kV Contact for each channel
    LED
    DeviceNet Status
    3 LEDs for PWR/NET/MOD
    Terminal Resister
    1 LED to terminal resister indicators
    DI LED
    8 LEDs to digital input indicators
    DO LED
    8 LEDs to digital output indicators
    Power
    Power Supply
    Unregulated +10 ~ +30 VDC
    Power Consumption
    1.5 W
    Mechanism
    Installation
    DIN-Rail
    Dimensions
    32.3 mm x 99 mm x 77.5 mm ( W x L x H )
    Environment
    Operating Temp.
    -25 ~ 75 ℃
    Storage Temp.
    -30 ~ 80 ℃
    Humidity
    10 ~ 90% RH, non-condensing


    Ordering Information
    CAN-2054D
    		DeviceNet module of 8-channel DI and DO
