DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2017D follows DeviceNet specification Volume I/II, Release 2.0. User can access the analog input status and set the configuration via DeviceNet EDS file. CAN-2017D has 8-channel analog input and it can be used to various applications. By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.
|
|
|
|

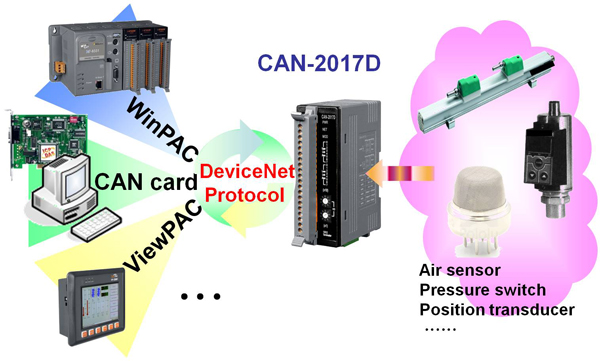

| Applications |
|
|
|
We have communicated with the following DeviceNet masters or gateways.
- Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
- OMRON CJ1W-DRM21
- OMRON CS1W-DRM21-V1
- OMRON C200HW-DRM21-V1
- OMRON 3G8F7-DRM21-E
|
|
|
|
| Hardware Specifications |
|
|
|
| DeviceNet Interface |
| DeviceNet Specification |
Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5 |
| DeviceNet subscribe |
Group 2 Only Server |
| Connection supported |
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O |
| Node ID |
0~63 selected by rotary switch |
| Baud Rate (bps) |
125 kbps, 250 kbps, 500 kbps |
| Terminal Resistor |
Switch for 120 Ω terminal resistor |
| Connector |
5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+) |
| EDS file |
Yes |
| Analog Input |
| Channels |
8 |
| Input Type |
±10V, ±5V, ±1V, ±500mV, ±150mV, ±20mA,( External 125 Ohm Resistor Required) |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/Sec. (Total) |
| Accuracy |
±0.1% FSR |
| Zero Drift |
±10 μV/ °C |
| Span Drift |
±25 ppm/ °C |
| Common Mode Rejection |
86 dB |
| Normal Mode Rejection |
100 dB |
| Input Impedance |
>2 MΩ |
| Individual Channel Configuration |
Yes |
| Over voltage Protection |
240 Vrms |
| ESD Protection |
±4kV, Contact for each terminal |
| Intra-module Isolation, Field to Logic |
3000 VDC |
| LED |
| Status LED |
PWR LED, NET LED, MOD LED |
| Terminal Resister LED |
1 LED as terminal resister Indicator |
| Alarm LED |
8 LEDs as over Upper Limit Indicators
8 LEDs as under the Lower Limit Indicators |
| Power |
| Power Supply |
Unregulated +10 ~ +30 VDC |
| Power Consumption |
2.0 W |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
33 mm x 99 mm x 78 mm ( W x L x H ) |
| Environment |
| Operating Temp. |
-25 ~ 75 ℃ |
| Storage Temp. |
-30 ~ 80 ℃ |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
| Ordering Information |
|
|
|
|
DeviceNet Slave Module of 8-channel Differential Analog Input |
|
|
|
|
| Related Products |
|
|
|
| DeivceNet Master Library |
Support PISO-CAN serials, PEX-CAN serials and PCM-CAN with DeviceNet master library |
PISO-DNM100U-D
PISO-DNM100U-T |
1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside for universal PCI bus |
| I-7565-DNM-G CR |
USB/DeviceNet Master communication Converter with D-sub 9-pin connector |
| I-8124W |
1 Port DeviceNet Master Module with dual port RAM |
| I-87124 |
1 Port High Performance DeviceNet Master Module |
| CA-0910-C |
9-pin Female D-sub & 3-wire CAN bus cable (1M) |
|
|
| |
|
