    1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside
    PISO-DNM100-D PISO-DNM100-T
    PISO-DNM100U-D PISO-DNM100U-T
    PISO-DNM100 PISO-DNM100U



    PISO-DNM100 can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a "Predefined Master-Slave connection Set". PISO-DNM100 supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications.

    Besides, PISO-DNM100 uses the new CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example Windows system. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, PISO-DNM100 is developed for this purpose.



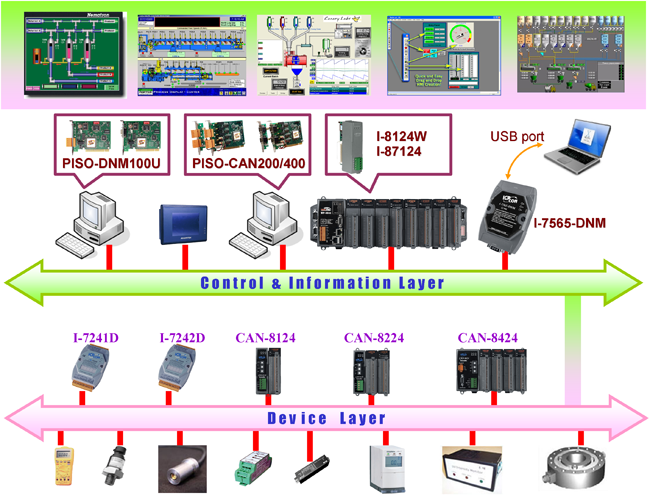

    Applications
    The production & Inspection of the LCD panel (Traditional Chinese)
    Communicate with PowerFlex400(English)

    SMC Valve Aplications(English)

    IFC-125 Valve Aplications(English)

    MKS FRCA Valve Aplications(English)

    SICK Distance Sensor Aplications(English)



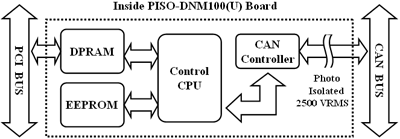

    Hardware Features
    • DeviceNet Version: Volume I & II, Release 2.0
    • Programmable master MAC ID and baud rate
    • Baud Rate: 125 kbps, 250 kbps, 500 kbps
    • Support Group 2 and UCMM connection
    • I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
    • I/O Length: max 512 input bytes and 512 output bytes pre slave
    • Slave Node : 63 nodes max
    • Support auto-search slave device function
    • Support on-line adding and removing devices
    • Support auto-detect Group 2 and UCMM device
    • Auto-reconnect when the connection is broken
    • LED: Status,ERR



    Firmware Features
    • Programmable Master MAC ID
    • Programmable transfer-rate 125 kbps, 250 kbps, 500 kbps
    • Each port support maximum nodes up to 64
    • Support Group 2 Only Server functions
    • Support UCMM functions
    • Predefined Master-Slave Connection Set
    • The maximum Fragment number is (Input/Output) up to 64
    • Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
    • Support Auto-Scan slave device function
    • Support on-line adding and removing devices
    • Support boot-up auto communicating with slave devices
    • Support Auto-Reconnect when the connection is broken

    We have communicated with the following DeviceNet slaves

    • Allen-Bradley PowerFlex series DeviceNet Inverters
    • BECKHOFF CX1500-B520 series DeviceNet I/O modules
    • BECKHOFF BK5250 series DeviceNet I/O modules
    • MKS 683 series DeviceNet exhaust throttles
    • MKS MFC (Mass Flow Controller) series DeviceNet devices
    • MKS DELTA II FRC (Flow Ratio Controller) DeviceNet devices
    • MKS DC Power Generator (OPT- xxx) DeviceNet devices
    • OMRON DRT1-ID/ODxx series DeviceNet I/O modules
    • OMRON DRT2-MDxx series DeviceNet I/O modules
    • COSMOS PS-7 series DeviceNet gas detectors
    • CELERITY UNIT IFC-125 series DeviceNet devices
    • Allen-Bradley PowerFlex AC Drives
    • Allen-Bradley PowerFlex AC Drives with DriveLogix
    • Allen-Bradley PowerFlex DC Drives
    • OMRON DRT2-ID08(-1)/MD16
    • OMRON DRT2-OD08/MD16-1
    • OMRON DRT2-OD08-1
    • OMRON DRT2-ID16(-1)/OD16(-1)
    • OMRON GRT1-DRT
    • OMRON C200HW-DRT21
    • Swagelok MS-VCM-D-6-0, MS-VCM-D-6-2 DeviceNet Valve
    • Swagelok SS-PTX-D-G500-S4-K DeviceNet Transducer
    • Swagelok SS-PTX-D-G500-SM-K DeviceNet Transducer
    • Weidmueller SAI-AU M12 DN 16DI/8DO
    • Weidmueller SAI-AU M12 DN GW 16DI
    • Weidmueller SAI-AU M12 DN AI/AO/DI
    • ADVANCED ENERGY Apex RF generators and power-delivery
    • SMC ITV series Electro-Pneumatic Regulator
    • SMC Directional Control Valves
    • SICK DME5000 series Distance Sensor
    • MTS Temposonics R-Series Position Sensors
    • PFEIFFER VACUUM HiPace series turbopumps
    • Allen-Bradley(AB) 1769-ADN DeviceNet Adapter
    • MKS Type T3B and T3P Valves With DeviceNet Interface
    • ABB DSQC 350A DeviceNet/Allen Bradley remote gateway
    • MTS Temposonics R-Series sensor
    • MKS MicroNode I/O series module
    • LINCOLN Power Wave AC/DC 1000 device
    • Festo CTEU-DN Bus nodes
    • MKS Baratron Type DMB Capacitance Manometer
    • Sevenstar CS200/CS220 Mass Flow Controller
    • Allen-Bradley(AB) E3 & E3 Plus Solid-State Overload Relay
    • RF/MW Generators of DAIHEN
    • KEYENCE NU-DN1



    Memory map of Remote I/O
    There exist two memory areas, “Input Area” and “Output Area”. The input data of all DeviceNet slaves would be stored in the “Input Area” by DeviceNet master scan engine. Oppositely, the output data of those DeviceNet slaves would be in the “Output Area”. Please refer to the following figure.

    Users can read a bulk data from “Input Area” in the DeviceNet Master module, like PISO-DNM100U or I-8124W. This bulk data contains multiple devices’ input statuses. If one of the input status of the remote DeviceNet slave changes, the corresponding data located in the “Input Area” would change immediately. Oppositely, the “Output Area” contains multiple devices’ output data. Users may change the output value of a certain device by changing the corresponding data located in the “Output Area”.



    Software Utility Features
    Diagnosis

    This utility supports to search all devices and specific devices in the network. These functions help the users to configure the connection of the slave devices. Anymore, the software also can diagnose the remote slave devices when building the DeviceNet network.

    Configuration

    This software supports the users to configure the I/O connection of the devices by searching devices or manual setting. After configuring the I/O connection, the information would be saved into the EEPROM. The users can export the data from the EEPROM easily. Correspondingly, the users can import the data into the EEPROM.

    Remote I/O access
    The software utility can easily to access the I/O data of all the slave devices. The users can monitor the input data of the specific slave device and change the output data to the remote slave device with this utility.





    Software
    Item Description

    InduSoft Driver     		The IndoSoft is one of the famous and high performance SCADA. Nowaday, it supports the CAN, CANopen and DeviceNet driver for all the coresponding converter or master series products. [more...]

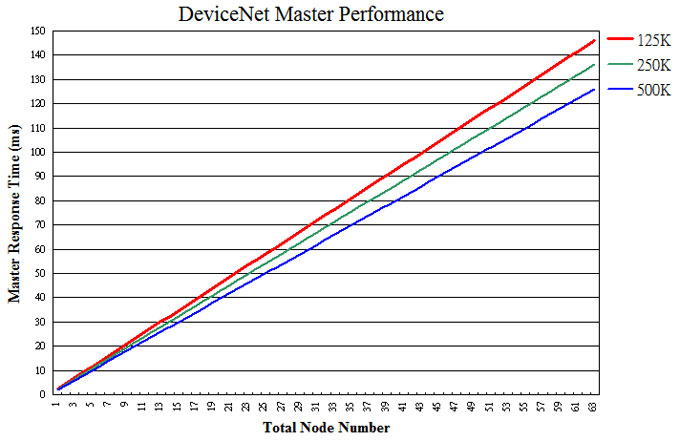

    Performance Test


    Comparison with PISO-CAN 200/400-D/T
    Product Name
    PISO-DNM100
    PISO-CAN-200/400
    with DeviceNet Library
    Protocol decoder
    186 CPU
    PC CPU
    Time stamp
    186 Timer (0.1 ms)
    PC Timer (about 1 ms)
    CPU Loading
    Light
    Heavy
    Performance
    High
    Normal
    Application
    Various and complex DeviceNet application
    General purpose DeviceNet application

    Hardware/Firmware Feature

    Items
    DeviceNet Product
    PISO-DNM100
    PISO-CAN-200/400
    with DeviceNet Library
    On-board CPU
    Intel 80186, 80Mhz
    None
    DeviceNet Protocol Core
    In Firmware
    In PC driver
    Access node’s I/O
    Firmware
    PC driver
    Reconnect when breaking
    Support
    By User Programming
    Group 2 / Group 3 Checking
    Support
    By User Programming
    Search Slave Devices
    Support
    By User Programming
    Save Slave information
    EEPROM
    By User Programming

    Performance Test

    Node No.
    Items
    DeviceNet Product
    PISO-DNM100
    PISO-CAN-200/400
    1 Nodes
    PC CPU loading
    1 %
    9 %
    2 Nodes
    PC CPU loading
    0 %
    27 %
    4 Nodes
    PC CPU loading
    0 %
    68 %
    8 Nodes
    PC CPU loading
    0 %
    100 %

    Test Environment:

    Windows：Microsoft Windows XP Professional Version 2002 Service Pack 2
    CPU：AMD Athlon(tm) 64 X2 Dual Core Processor 3800+ 2.00GHz
    RAM：512 MB

    Node Information


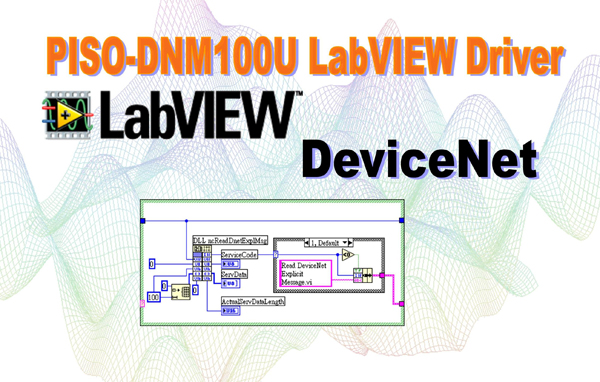

    DeviceNet for LabVIEW Application Tool
    In order to develop complex DeviceNet applications, we provide a LabVIEW driver for this purpose. The PISO-DNM100(U) LabVIEW driver is the function reference to the DeviceNet master. We provide many useful VI functions in the LabVIEW environment. We also have the "DeviceNet Master Utility" to configure the DeviceNet hardware in your PC. The users not only operate easily and develop application rapidly, but also reduce the complexity of applications. The users can communicate with the remote DeviceNet devices in a few simple steps and need not to know about the detail of the DeviceNet protocol. It is the best tool to develop various distributed systems and other industrial applications software on DeviceNet network.



    Hardware Specifications
    Model Name
    PISO-DNM100-D
    PISO-DNM100-T
    PISO-DNM100U-D
    PISO-DNM100U-T
    Bus Interface
    Type
    PCI bus, 5 V, 33 MHz, 32-bit, plug and play
    Universal PCI supports both 5 V and 3.3 V PCI bus
    Board No.
    By DIP switch
    CAN Interface
    Controller
    NXP SJA1000T with 16 MHz clock
    Microprocessor inside with 80186 80MHz
    Transceiver
    NXP 82C250
    Channel number
    1
    Connector
    9-pin male D-Sub (CAN_GND, CAN_L, CAN_SHLD, CAN_H, N/A for others)
    5-pin screwed terminal block (CAN_L, CAN_SHLD, CAN_H, N/A for others)
    9-pin male D-Sub (CAN_GND, CAN_L, CAN_SHLD, CAN_H, N/A for others)
    5-pin screwed terminal block (CAN_L, CAN_SHLD, CAN_H, N/A for others)
    Baud Rate (bps)
    125 k, 250 k, 500 k
    Transmission Distance (m)
    Depend on baud rate (for example, max. 1000 m at 50 kbps )
    Isolation
    3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
    Terminal Resistor
    Jumper for 120 Ω terminal resistor
    Specification
    ISO-11898-2, CAN 2.0A and CAN 2.0B
    Protocol
    DeviceNet Volumn I ver2.0, Volumn II ver2.0
    LED
    Round LED
    Green LED, Red LED
    Software
    Driver
    Windows XP/7/8/10 (32-bit/64-bit OS)
    Library
    VB 6.0, VC++ 6.0, BCB 6.0, Visual Studio .NET
    Power
    Power Consumption
    300 mA @ 5 V
    Mechanism
    Dimensions
    138mm x 22mm x 92mm (W x L x H)
    138mm x 22mm x 105mm (W x L x H)
    Environment
    Operating Temp.
    0 ~ 60 ℃
    Storage Temp.
    -20 ~ 70 ℃
    Humidity
    5 ~ 85% RH, non-condensing


    Ordering Information
    PISO-DNM100-D
    		 DeviceNet firmware built-in and one standalone intelligence CAN communication port with D-Sub 9-pin connector for PCI bus system
    PISO-DNM100-T
    		 DeviceNet firmware built-in and One standalone intelligence CAN communication port with 5-pin screw terminal connector for PCI bus system
    PISO-DNM100U-D
    		 DeviceNet firmware built-in and one standalone intelligence CAN communication port with D-Sub 9-pin connector for universal PCI bus system
    PISO-DNM100U-T
    		 DeviceNet firmware built-in and One standalone intelligence CAN communication port with 5-pin screw terminal connector for universal PCI bus system


    Optional Accessories
    CNT-CAN CAN bus Connector
    CA-0910-C 9-pin Female D-sub & 3-wire CAN bus cable (1M)
    SG-770 7/14 channel Surge Protector
    4PCD-002 EMI Ferrite Split/Snap-On Core
    M12A-5P-IP68 Field-Installation A-coded 5-pin Female
