CANopen is a kind of network protocol based on CAN bus and has been used in various applications, such as vehicles, industrial machines, building automation, medical devices, maritime applications, restaurant appliances, laboratory equipment & research.
ICP DAS has been developing CAN based-CANopen protocol products for several years. Include PCI interface, gateway, CANopen IO and CANopen module for ICP DAS’s PACs-WinCon /WinPAC/LinCon/I-8K. We also help customers to resolve various CANopen network technology problems. In addition, we can provide CANopen solutions for users.

CANopen is a CAN-based application layer protocol. It was developed as a standardized embedded network with highly flexible configuration capabilities. CANopen was designed for motion-oriented machine control networks, such as handling systems. By now it is used in many various fields, such as medical equipment, off-road vehicles, maritime electronics, public transportation, building automation, etc.
The CANopen specifications cover application layer and communication profile, as well as a framework for programmable devices, recommendations for cables, connectors, SI units, and prefix representations. The application-layer as well as the CAN-based profiles are implemented in software.

CANopen features

• Allow multi-master architecture on one bus
• 10k,20k,50k,125k,250k,500k,800k,1M bps baud rate
• The bus length is from 25m(1M bps) to 5Km(10K bps)
• Easy access to all device parameters.
• Device synchronization.
• Cyclic and event-driven data transfer.
• Up to 128 nodes can be participated in the same CAN network.
• High transmission speed.

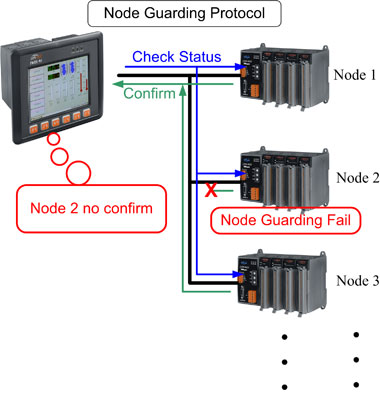

• Support Guarding and Heartbeat protection mechanism

	INITIALISING	PRE-OPERATIONAL	OPERATIONAL	STOPPED
PDO			X
SDO		X	X
Synchronisation object		X	X
Time Stamp Object		X	X
Emergency Object		X	X
Boot-Up Object	X
Network Management Object		X	X	X

CANopen Statue Transition
