home > product> solutions > pac > 7188/7186 μPAC  Selection Guide

All the palm-size PACs have same form factor and system architecture. With different software or communication interface, they can be classified to several solutions as following.
Will be available
Available soon
Will be phased out
Phased out
I-7188 series C language based uPAC (Serial Connectivity)
I-7188 is a palm-size PAC that equips a DOS-like OS (MiniOS7). Its software development toolkit is C language compilers that can build 16-bit executable file (*.exe) running on an 80188/80186 CPU. There are two free compilers (Turbo C 2.0 and Turbo C++ 1.01), we suggest users to use the Turbo C++ 1.01.
By the multi-COM port feature, I-7188 can integrate serial devices (for example: barcode reader, card reader, HMI) and use the few onboard I/O points to implement embedded applications.
Model Special Feature CPU SRAM Flash I/O Expansion Bus 64-bit hardware serial number RTC DI DO RS-232/
RS-485
  I-7188
I-7188D
- 40M Hz 256 KB 512 KB - - Yes - - 1/1
  I-7188XA
I-7188XAD
- 512 KB For memory board only Yes 2 2
  I-7188XB
I-7188XBD
- Yes 1 1
  I-7188XBD-CAN CAN port -
  I-7188XC
I-7188XCD
- 20M Hz 128 KB Yes - - 2 3

TOP | HOME
Will be available
Available soon
Will be phased out
Phased out

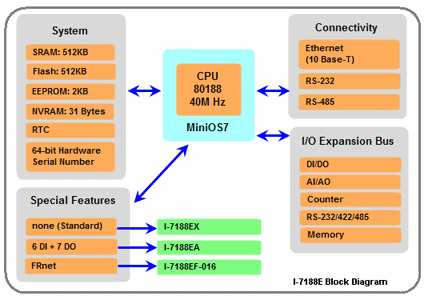

I-7188E series C language based uPAC (Ethernet and Serial Connectivity)
I-7188E series is an upgrade version of I-7188 series. It equips a 10 Base-T Ethernet port to make a connection to the Ethernet/Internet word.
Model Special Feature CPU SRAM Flash I/O Expansion Bus DI DO Ethernet RS-232/
RS-485
FRnet
  I-7188EA
I-7188EAD
DI/DO 40M Hz 512 KB 512 KB - 6 7 1 2 -
  I-7188EX
I-7188EXD
I/O Expansion Bus Yes - -
  I-7188EF-016
I-7188EFD-016
FRnet - Yes

TOP | HOME
Will be available
Available soon
Will be phased out
Phased out
μPAC-7186E series C language based uPAC (Ethernet and Serial Connectivity)
μPAC-7186E is our new generation of palm-size PAC. It equips a more power full CPU (upgraded from 40M Hz to 80M Hz) and a faster Ethernet port (upgraded from 10 Base-T to 10/100 Base-TX). Compared with I-7188E series, μPAC-7186E’s computing speed is up to 4 times faster. And there are more memory configuration choices to select from.
Model Special Feature CPU SRAM Flash I/O Expansion Bus Ethernet RS-232/
RS-485
  μPAC-7186EX
μPAC-7186EXD
- 80M Hz 512 KB 512 KB Yes 1 1/1
  μPAC-7186PEX
μPAC-7186PEXD
PoE
  μPAC-7186EX-SM
μPAC-7186EXD-SM
640 KB SRAM 640 KB
  μPAC-7186EX-FD
μPAC-7186EXD-FD
64 MB NAND Flash 512 KB
  μPAC-7186EXD-CAN CAN port -

TOP | HOME
Will be available
Available soon
Will be phased out
Phased out
ISaGRAF based uPAC The controller fully supports all five of the IEC61131-3 standard PLC languages:
1. Ladder diagram.
2. Function block diagram.
3. Sequential function chart.
4. Structured text.
5. Instruction List plus flow chart.
It supports DCON and Modbus protocol to link to remote I/O modules via the RS-232/485 or Ethernet.
Model CPU SRAM Flash I/O Expansion Bus DI DO Ethernet RS-232/RS-485
  μPAC-7186EG
μPAC-7186EGD
80M Hz 640 KB 512 KB Yes - - 10/100 Base-TX 1/1
  I-7188XG
I-7188XGD
40M Hz 512 KB 1 1 -

TOP | HOME
Will be available
Available soon
Will be phased out
Phased out

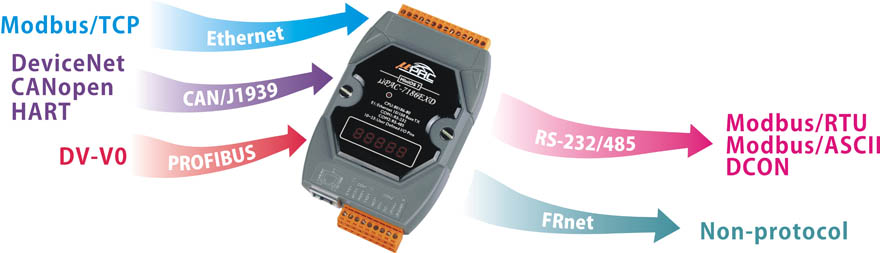

The palm-size PAC all has the same form factor and system architecture. With different firmware and communication interface, they can be a gateway to
transmite data to another media or translate to different protocol.
Type Model Description
Modbus Gateway
(Selection Guide)
  I-7188EX-MTCP
I-7188EXD-MTCP
  I-7188E2-MTCP
I-7188E2D-MTCP
  μPAC-7186EX-MTCP
μPAC-7186EXD-MTCP


7188E series programmable Modbus Gateway
7188E Converter
(Selection Guide)
  I-7188E1
I-7188E1D
  I-7188E2
I-7188E2D
  I-7188E3
I-7188E3D
  I-7188E3-232
I-7188E3D-232
  I-7188E4
I-7188E4D
  I-7188E5
I-7188E5D
  I-7188E8
I-7188E8D
  I-7188E5-485
I-7188E5D-485
7188E series Ethernet to Serial Port converter
I-752N Converter
(Selection Guide)
  I-7521
I-7521D
  I-7522
I-7522D
  I-7522A
I-7522AD
  I-7523
I-7523D
  I-7524
I-7524D
  I-7527
I-7527D
752N series addressable RS-485 to RS-232/422 converter
I-7188EF Converter
(Selection Guide)
  I-7188EF-016
I-7188EFD-016

I-7188E Ethernet to FRnet high speed I/O converter
CANopen Gateway
(Selection Guide)
  I-7231D   I-7232D
  GW-7433D
CANopen to Modbus gateway
DeviceNet Gateway
(Selection Guide)
  I-7241D   I-7242D
  I-7243D   GW-7243D
DeviceNet to Modbus gateway
J1939 Gateway
(Selection Guide)
  GW-7228   GW-7238D
J1939 to Modbus gateway
PROFIBUS Gateway
(Selection Guide)
  GW-7552   GW-7553
  GW-7557
PROFIBUS to Modbus/HART gateway
HART Gateway
(Selection Guide)
  HART-710
HART to Modbus gateway
