Gateway Solutions

Stand alone industrial gateways designed to connect excisting devices to Fieldbus and industrial Ethernet. Easy to use and setup, no programming required.

CANopen Gateway
I-7231D	CANopen Slave / DCON Master Gateway
I-7232D	CANopen Slave / Modbus RTU Master Gateway
GW-7433D	CANopen Master / Modbus TCP Server Gateway
DeviceNet Gateway
I-7241D	DeviceNet Slave / DCON Master Gateway
I-7242D	DeviceNet Slave / Modbus RTU Master Gateway
I-7243D	DeviceNet Master / Modbus TCP Server Gateway
GW-7243D	DeviceNet Slave / Modbus Master Gateway
J1939 Gateway
GW-7228	J1939/Modbus RTU Slave Gateway
GW-7238D	J1939 to Modbus TCP Server / RTU Slave Gateway
PROFIBUS Gateway
GW-7552	PROFIBUS/Modbus Gateway
GW-7553	PROFIBUS/Modbus TCP Gateway
GW-7557	PROFIBUS/HART Gateway
HART Gateway
HART-710	Modbus/HART Gateway

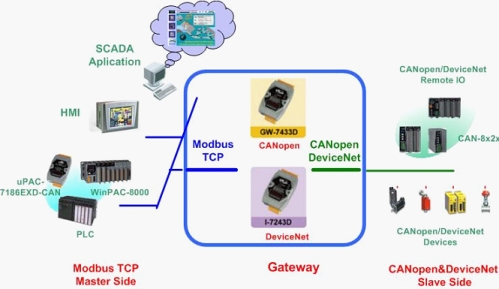

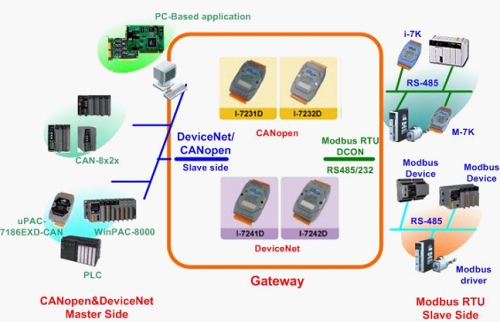

DeviceNet & CANopen Gateways
DeviceNet & CANopen Communicator gateway family can connect almost any automation device with a serial communication interface to fieldbus and industrial Ethernet networks. The Communicator performs an intelligent conversion between the serial protocol of the automation device and the chosen industrial network.

GW-7552 Application

is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the Modbus devices. These Modbus devices may be a PLC, a sensor, ICPDAS M-7000 series modules and so forth.
