GW-7228 ~ NEW ~
J1939/Modbus RTU Slave Gateway |
|
|
|
|
|
|
|
| |
|
|
| |

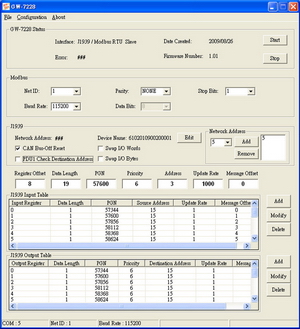

The GW-7228 is a solution that provides a protocol conversion between J1939 and Modbus RTU. For J1939 network, the GW-7228 supports PDU1, PDU2, broadcast and destination specific type of J1939 messages. From the view of Modbus RTU network, the GW-7228 is a Modbus RTU slave to reply the request from Modbus RTU master. We provide Utility software for users to configure the parameters of J1939 / Modbus RTU of the GW-7228. The application fields can be Diesel power-train applications, In-Vehicle networks for trucks and buses, etc.

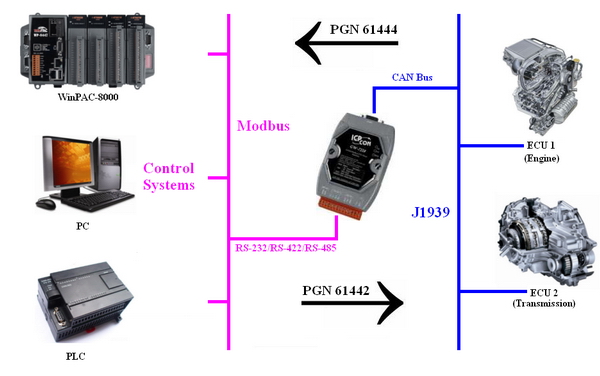

The following figure shows the application architecture for the GW-7228
Application of GW-7228
|
|
|
|
|
| |
|
|
| |
|
|
| |
¡EDiesel power-train applications
¡EIn-Vehicle networks for trucks and buses
¡ETruck-Trailer connections
¡EFleet management systems
¡EOn Board Diagnostics
¡EVehicle Automation
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
J1939 Features
-
Transmission and reception of all types of J1939 messages, including PDU1, PDU2, broadcast and destination specific
-
J1939 Transport Protocol for transmission and reception of large messages (9 - 1785 bytes)
-
Supported BAM of Connection Management Message
-
Network addresses management
Modbus RTU Features
-
Support RS-232, RS-485 and RS-422
-
interfacesSupported Modbus RTU slave protocol
-
Configurable for Modbus Network ID(1~250)
-
Configurable baud rates of 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
-
Configurable for no, odd, or even parity and 1 or 2 stop bits
-
Support Function Code 03 / 04 / 06 / 10 of Modbus functions for reading and writing J1939 Messages
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
-
Provide Modbus network configuration interface
-
Provide J1939 network configuration interface ¡V Network Address / Device Name¡K
-
Provide J1939 Input / Output configuration interface
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
ICP DAS Fieldbus Gateways Comparison Table:
Support Protocol |
GW-7228 |
GW-7433D |
I-7231D |
I-7232D |
I-7241D |
I-7242D |
J1939 |
CANopen Master |
CANopen Slave |
CANopen Slave |
DeviceNet Slave |
DeviceNet Slave |
Modbus RTU Slave |
Modbus
TCP server/RTU Slave |
DCON Master |
Modbus RTU Master |
DCON Master |
Modbus RTU Master |
Comm.
Interface |
RS-232
RS-422
RS-485 |
RS-232
RS-485
Ethernet |
RS-232
RS-485 |
RS-232
RS-485 |
RS-232
RS-485 |
RS-232
RS-485 |
|
Support Protocol |
I-7243D |
GW-7243D |
GW-7552 |
GW-7553 |
HART-710 |
|
DeviceNet Master |
DeviceNet Slave |
PROFIBUS DP-V0 Slave |
PROFIBUS DP-V0 Slave |
HART Master |
|
Modbus TCP server |
Modbus TCP/RTU/
ASCII Master |
Modbus RTU/ASCII
Master/Slave |
Modbus
TCP/RTU/ASCII Master/Slave |
Modbus RTU/ASCII
Slave |
|
Comm.
Interface |
Ethernet |
RS-232
RS-485
Ethernet |
RS-232
RS-422
RS-485 |
RS-232
Ethernet |
RS-232
RS-422
RS-485 |
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
Hardware |
J1939 Port Channels |
1 |
CAN Interface |
Transceiver |
NXP 82C250 |
Connector |
9-pin D-sub connector |
Baud Rate (bps) |
250k |
Isolation |
3000 VDC power protection on CAN side, 2500Vrms photo-couple isolation on CAN bus |
Terminator Resistor |
Selectable 120£[ terminator resistor by jumper |
Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
Pin Assignment |
C.I.A. DS-102 (CAN_H=7, CAN_L=2) |
UART Interface |
Connector |
14-pin screw terminal connecter |
COM1 |
RS-232(TXD, RXD, GND)/RS-422(Tx+, Tx-, Rx+, Rx-)/ RS-485(D+, D-) |
Baud Rate (bps) |
2400, 4800, 9600, 19200, 38400, 57600, 115200 |
LED |
Round LED |
PWR / J1939 / MODBUS |
Power |
Power supply |
+10 ~ +30 VDC |
Power Consumption |
1.5 W |
Dip Switch |
Init (Firmware Update) / Normal (Firmware Operation) |
Mechanism |
Installation |
DIN-Rail |
Dimensions |
108mm x 72mm x 35mm (H x W x D) |
Environment |
Operating Temp. |
-25 ~ 75 ¢J |
Storage Temp. |
-30 ~ 80 ¢J |
Humidity |
10 ~ 90% RH, non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
GW-7228 CR |
J1939/Modbus RTU Slave Gateway included CA-0910 cable(RoHS) |
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
9-pin Female D-sub & 3-wire CAN bus cable (1M) |
|
CAN bus Connector |
|
7/14 channel Surge Protector |
|
EMI Ferrite Split/Snap-On Core
|
|
Field-Installation A-coded 5-pin Female
|
|
|
| |
|
|
| |
|
|
|
|
