GW-7552 ~ NEW ~
PROFIBUS/Modbus Gateway |
|
|
|
|
|
|
|
| |
|
|
| |

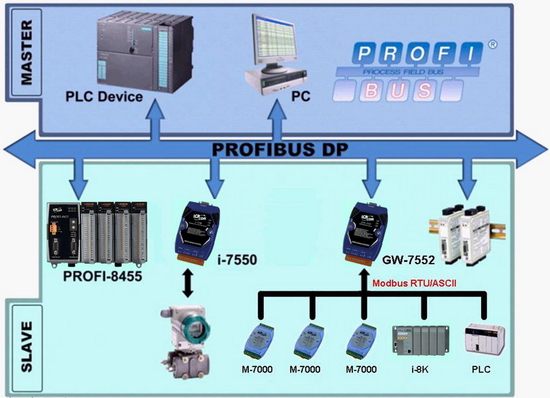

The GW-7552 Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the Modbus devices. These Modbus devices may be a PLC, a sensor, ICPDAS M-7000 series modules and so forth. In addition, we also provide the utility software for users to configure the GW-7552. By using this module, users can put their Modbus devices into PROFIBUS network very easily.
|
|
|
|
|
| |
|
|
| |
|
|
| |
-
Industrial Automation
-
Factory Automation
-
Process Automation
-
Etc¡K
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
Protocol & Hierarchy |
DP-V0 Slave |
Supports PROFIBUS Transmission Rate (Kbps) |
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 |
Transmission Rate Setting |
detected automatically |
Max Input Data Length |
132 Bytes |
Max Output Data Length |
131 Bytes |
Address Setting |
0~126 set by DIP switch |
Supports Modbus Mode |
Master/Slave |
Supports Modbus Format |
RTU/ASCII |
Hybrid COM 1 |
RS-232/422/485 with ¡§Self Tuner¡¨ inside |
Supports COM 1 Baudrate (Kbps) |
2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2 |
Supports COM 1 Data Format |
7/8 data bits, No/Odd/Even parity, 1/2 stop bit |
Indicators |
PWR, ERR, and RUN LEDs |
Network Isolation Protection |
High Speed iCoupler |
DC Isolation Protection |
3000VDC on PROFIBUS side |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |

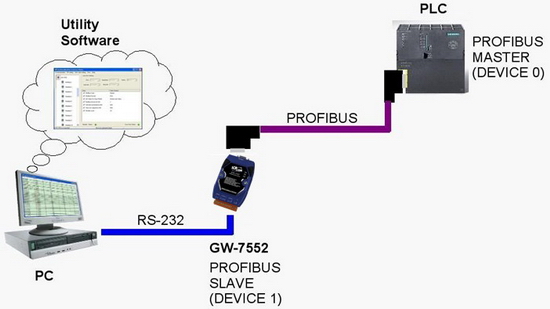

The GW-7552 Utility helps users to configure the devices, and has following features:
- Provide GW-7552 safe value setting
- Display module parameters of the GW-7552
- Show module address configuration of the GW-7552
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
Only the following Modbus commands are supported by the gateway.
Code |
Name |
|
01 |
Read Coil Status |
Read the ON/OFF status of discrete outputs in the slave |
02 |
Read Input Status |
Read the ON/OFF status of discrete inputs in the slave |
03 |
Read Holding Registers |
Read the binary contents of holding registers in the slave |
04 |
Read Input Registers |
Read the binary contents of input registers in the slave |
05 |
Force Single Coil |
Write a single output to either ON or OFF in the slave |
06 |
Preset Single Register |
Write an integer value into a single register in the slave |
15 |
Force Multi. Coils |
Write each coil in the sequence of coils to either ON or OFF in the slave |
16 |
Preset Multi. Registers |
Write a block of contiguous registers in the slave |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
Hardware |
CPU |
80186, 80 MHz or compatible |
SRAM/Flash/EEPROM |
512 KB / 512 KB / 16 KB |
Watchdog |
Watchdog IC
CPU built-in |
ESD Protection |
4 kV class A |
PROFIBUS Interface |
Controller |
Siemens SPC3 |
Transceiver |
ADI ADM2486 |
Connector |
9-pin female D-Sub |
Baud Rate (bps) |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
Transmission Distance (m) |
Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) |
Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
Protocol |
DP-V0 |
UART Interface |
COM |
RS-232/RS-422/RS-485(can¡¦t be used simultaneously) |
COM Connector |
3-pin screwed terminal block (RxD, TxD, GND)
4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-)
2-pin screwed terminal block (DATA+, DATA-) |
Baud Rate (bps) |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
Data bit |
7, 8 |
Stop bit |
1, 2 |
Parity |
None, Even, Odd |
LED |
Round LED |
PWR LED, RUN LED, ERR LED |
Power |
Power supply |
Unregulated +10 ~ +30 VDC |
Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
Power Consumption |
2.5 W |
Mechanism |
Installation |
DIN-Rail |
Dimensions |
72 mm x 33 mm x 119 mm (W x L x H) |
Environment |
Operating Temp. |
-25 ~ 75¢J |
Storage Temp. |
-30 ~ 85¢J |
Humidity |
5 ~ 95% RH, non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
GW-7552-B CR
|
PROFIBUS/Modbus Gateway (RoHS)
|
|
|
| |
|
|
| |
|
|
|
|
