I-7188E8/I-7188E8D
Internet Communication Controller

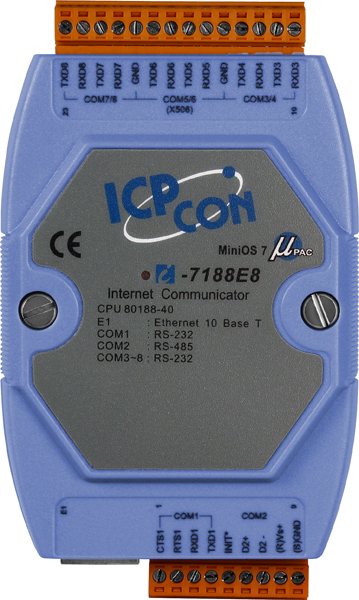

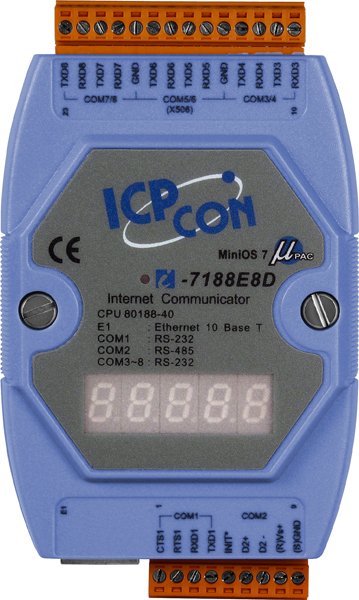

Model: I-7188E8 Model: I-7188E8D

  • Incorporates any RS-232/485 serial device in Ethernet
  • Data transmission via Virtual COM or raw TCP connection
  • VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10
  • Built-in High Performance MiniOS7 from ICP DAS
  • Watchdog Timer suitable for use in harsh environments
  • Palm-Sized with multiple Serial Ports
  • Power Reverse Polarity Protection

The I-7188EN series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the I-7188EN series into standard COM ports on a computer. By virtue of its protocol independence, a small-core OS and high flexibility, the I-7188EN series is able to meet the demands of every network-enabled application.

The I-7188EN series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the I-7188EN up in just one second and gives you fastest responses.

The I-7188E8(D) is equipped with 7 RS-232 ports and 1 RS-485 port. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.

  • Factory Automation
  • Building Automation
  • Home Automation

Models Models Models
CPU Module
CPU 80188, 40MHz or compatible
SRAM 384 KB
Flash 512 KB
EEPROM 2 KB
Watchdog Timer 0.8 second
Communication Interface
COM1 RS-232 (TXD, RXD, RTS, CTS, GND)
COM2 RS-485 (D2+, D2-)
COM3 RS-232 (TXD, RXD, GND)
COM4 RS-232 (TXD, RXD, GND)
COM5 RS-232 (TXD, RXD, GND)
COM6 RS-232 (TXD, RXD, GND)
COM7 RS-232 (TXD, RXD, GND)
COM8 RS-232 (TXD, RXD, GND)
Ethernet Port 10BASE-T NE2000 compatible Ethernet Controller
COM Port Formats
Data Bit 7, 8
Parity Even, Odd, None
Stop Bit 1
Baud Rate 115200 bps Max.
LED Indicators
7-Segment Display - Yes
System LED Indicator Yes
Mechanical
Dimensions (W x L x H) 123 mm x 72 mm x 33 mm
Operating Environment
Operating Environment -25°C to +75°C
Storage Temperature -40°C to +80°C
Humidity 5 to 95 %,non-condensing
Power
Protection Power reverse polarity protection
Required Supply Voltage 10 to 30 VDC
Power consumption 2 W 3 W

I-7188E8 Internet communication controller with 7 RS-232, 1 RS-485 and 1 Ethernet
I-7188E8D I-7188E8 with 5 Digital 7-Segment Display
I-7188E8 CR Internet communication controller with 7 RS-232, 1 RS-485 and 1 Ethernet (RoHS)
I-7188E8D CR I-7188E8 with 5 Digital 7-Segment Display (RoHS)

PWR-24/110 Wall-plug power Adapter / 110 VAC, 60Hz, 4.8W
PWR-24/220F Wall-plug power Adapter / 220 VAC, 50Hz, 2.4W
