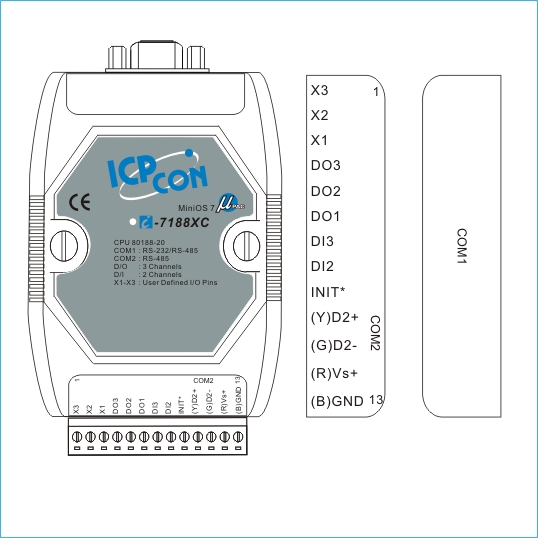

| Model: I-7188XC |
Model: I-7188XCD |
|
|
|
|
|
|
|
|
 |
|
|
| |
|
|
| |
| Powerful and Versatile Controller |
The I-7188XC(D) is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188XC controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.
The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188XC controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product.
Depending on the type of embedded firmware programs that are being developed, and which I/O Expansion Board, the I-7188XC(D) can be used as a single versatile controller. |
|
| I/O Expansion Bus and Expansion Board |
The I-7188XC supports an I/O expansion bus.
The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM, AsicKey & other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus.
The integrated modular design of the expansion board allows a fast, easy, and flexible way of upgrading our controller's capability. |
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CPU |
| CPU |
80188 (20MHz) |
| SRAM |
128K Bytes |
| Flash |
512K Bytes; Erase unit is one sector (64K bytes); 100,000 erase/write cycles. |
| EEPROM |
2048 Bytes (8 block, each block contains 256byte)
Data retention > 100 years; 1,000,000 erase/write cycles |
| NVRAM |
31 Bytes (battery backup, data valid up to 10 year) for I-7188XC(D)/512/RTC CR |
| RTC (real time clock) |
For I-7188XC(D)/512/RTC CR, seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079 |
| 64-bit Hardware Serial Number |
- |
| Build-in Watchdog Timer |
Yes |
| Communication Interface |
| COM1 |
RS-232 or RS-485 (Default is RS-232); Program download port
RS-232 (TXD, RXD, RTS, CTS, GND)
RS-485 (D1+, D1-, self-tuner ASIC inside)
1 byte FIFO |
| COM2 |
RS-485 (D2+, D2-, self-tuner ASIC inside), ,1 byte FIFO |
| Communication speed |
| All ports |
115.2K bps max |
| Digital Input/Output |
| Digital Input |
Channels : 2
Input type : non-isolated
On voltage level : +1VDC max (Connect to GND)
Off voltage level : +3.5V~30VDC (Open) |
| Digital Output |
Channels : 3
Output type : Open-collector
Output current : 100mA
Max load voltage : +30VDC |
| LED Display |
| 5 Digits Seven Segment Display |
Yes (for 7188XCD) |
| Red LED |
Yes |
| I/O expansion bus |
| I-7188XC |
Yes |
| I-7188XCD |
Yes |
| Dimensions |
| I-7188XC |
119mm x 72mm x 33mm |
| I-7188XCD |
119mm x 72mm x 33mm |
| Operating Environment |
| Operating Temperature |
-25¢XC to +75¢XC |
| Storage Temperature |
-40¢XC to +80¢XC |
| Humidity |
5~90%, non-condensing |
| Power |
| Protection |
Power reverse polarity protection |
| Power requirement |
10 to 30VDC |
| Power consumption |
I-7188XC : 2.0W
I-7188XCD : 3.0W |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| I-7188XC-512 CR |
Embedded controller, developing tool kit, 512K Flash,128K SRAM, MiniOS7 (RoHS) |
| I-7188XCD-512 CR |
Embedded controller with 5 digits seven segment display, developing tool kit, with 512k flash, 128K SRAM, Minios7 (RoHS) |
| OEM Version |
| I-7188XC/512/RTC CR |
Same as I-7188XC-512 CR, but with RTC and NVRAM (RoHS) |
| I-7188XCD/512/RTC CR |
Same as I-7188XCD-512 CR, but with RTC and NVRAM, 5 digits seven sement display (RoHS) |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| GPSU06U-6 |
24 V/0.25 A, 6 W Power Supply |
| DIN-KA52F |
24 V/1.04 A, 25 W Power Supply with DIN-Rail Mounting |
| MDR-20-24 |
24 V/1 A, 24 W Power Supply with DIN-Rail Mounting |
| I/O Expansion Boards |
Other add-on expansion boards refer to expansion board selection guide |
|
|
|
|
| |
