Model: I-7188 Model: I-7188D
I-7188/I-7188D
Embedded Controller





Powerful and Versatile Controller

The I-7188(D) is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188(D) controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.

The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188(D) controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product.

Depending on the type of embedded firmware programs that are being developed, the I-7188(D) can be used as a single versatile controller.







Spec


CPU
CPU 80188 (40MHz)
SRAM 256K Bytes
Flash 512K Bytes; Erase unit is one sector (64K bytes); 100,000 erase/write cycles.
EEPROM 2048 Bytes (8 block, each block contains 256byte)
Data retention > 100 years; 1,000,000 erase/write cycles
NVRAM 31 Bytes (battery backup, data valid up to 10 year)
RTC (real time clock) Seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079
64-bit Hardware Serial Number No
Build-in Watchdog Timer Yes

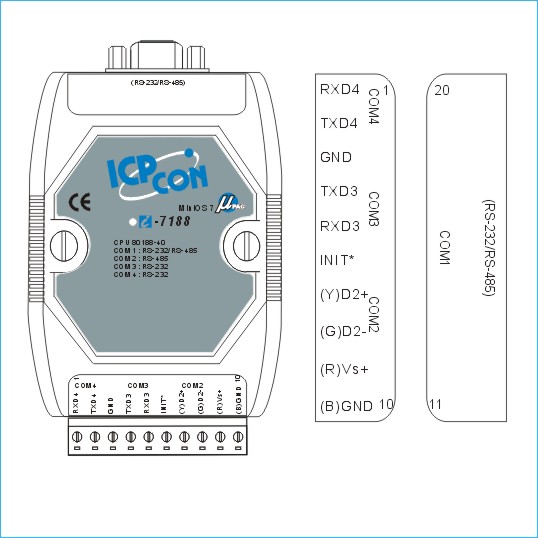

Communication Interface
COM1 RS-232 or RS-485 ( jumper select(JP1), default is RS-232)
RS-232 (TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND)
RS-485 (D1+, D1-)
16 bytes FIFO
COM2 RS-485 (D2+, D2-), 16 bytes FIFO
COM3 RS-232 (TXD3, RXD3, GND), 1 byte FIFO
COM4 RS-232 (TXD4, RXD4, GND); Program download port; Can be used as general purpose RS-232 port, 1 byte FIFO
Communication speed
All ports 115.2K bps max
Digital Input/Output
Digital Input No
Digital Output No
LED Display
5 Digits Seven Segment Display Yes (for 7188D)
Red LED Yes
I/O expansion bus
I-7188 No
I-7188D No
Dimensions
I-7188 119mm x 72mm x 33mm
I-7188D 119mm x 72mm x 33mm
Operating Environment
Operating Temperature -25¢XC to +75¢XC
Storage Temperature -40¢XC to +80¢XC
Humidity 5~90%, non-condensing
Power
Protection Power reverse polarity protection
Power requirement 10 to 30VDC
Power consumption I-7188: 2.0W
I-7188D: 3.0W





Order Info


I-7188/512 CR
Embedded controller includes 512K flash, MiniOS7, download utility, download cable and  manual. (RoHS)
I-7188D/512 CR
Embedded controller includes 512K flash, 5 digits seven segment display, MiniOS7, 5 digits seven segment display, download utility, download cable and manual. (RoHS)
OEM Version
I-7188/DOS/512 CR
Embedded controller includes 512K flash, ROM-DOS, download utility, download cable and  manual. (RoHS)
I-7188D/DOS/512 CR
Embedded controller includes 512K flash, 5 digits seven segment display, ROM-DOS, 5 digits seven segment display, download utility, download cable and manual. (RoHS)








GPSU06U-6 24 V/0.25 A, 6 W Power Supply
DIN-KA52F 24 V/1.04 A, 25 W Power Supply with DIN-Rail Mounting
MDR-20-24 24 V/1 A, 24 W Power Supply with DIN-Rail Mounting
I/O Expansion Boards Other add-on expansion boards refer to expansion board selection guide
