GW-7557
~ NEW ~
PROFIBUS/HART Gateway |
|
|
|
|
|
|
|
| |
|
|
| |

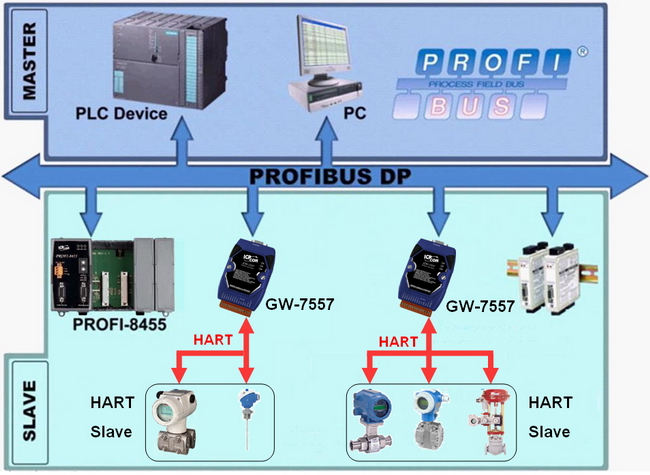

The GW-7557 Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the HART slave devices. These HART slave devices may be a transmitter, an actuator, a current output device and so forth. In addition, we also provide the utility software for users to configure the GW-7557. By using this module, users can put their HART slave devices into PROFIBUS network very easily.
|
|
|
|
| |
|
| |
|
| |
-
Industrial Automation
-
Factory Automation
-
Process Automation
-
Etc¡K
|
| |
|
|
|
| |
|
|
| |
|
|
| |
Protocol & Hierarchy |
DP-V0 Slave |
Supports PROFIBUS Transmission Rate (kbps) |
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 |
Transmission Rate Setting |
detected automatically |
Max Input Data Length |
240 Bytes |
Max Output Data Length |
240 Bytes |
Address Setting |
0~126 set by DIP switch or EEPROM |
Supports HART Mode |
point-to-point / multi-drop |
Support HART Master |
Allow two HART Masters |
Support HART Channel |
4 channels |
Support HART Frame |
Short/Long frame |
Support HART modules |
Connecting up to 15 HART modules |
Support HART Burst mode |
YES |
Indicators |
PWR, ERR, and RUN LEDs |
Network Isolation Protection |
2500 Vrms High Speed iCoupler |
DC Isolation Protection |
3000 VDC on PROFIBUS side |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
Hardware |
CPU |
80186, 80 MHz or compatible |
SRAM/Flash/EEPROM |
512 KB / 512 KB / 16 KB |
Watchdog |
Watchdog IC
CPU built-in |
ESD Protection |
4 kV class A |
PROFIBUS Interface |
Controller |
Profichip VPC3+C |
Transceiver |
ADI ADM2486 |
Connector |
9-pin female D-Sub |
Baud Rate (bps) |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
Transmission Distance (m) |
Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) |
Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
Protocol |
DP-V0 |
HART Interface |
HART Interface |
8-pin screwed terminal block |
HART Channel |
4 channels |
UART Interface |
COM |
RS-232 |
COM Connector |
3-pin screwed terminal block (RxD, TxD, GND) |
Baud Rate (bps) |
Up to 115200 |
Data bit |
7, 8 |
Stop bit |
1, 2 |
Parity |
None, Even, Odd |
LED |
Round LED |
PWR LED, RUN LED, ERR LED |
POWER |
Power supply |
Unregulated +10 ~ +30 VDC |
Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
Power Consumption |
2.0 W |
Mechanism |
Installation |
DIN-Rail |
Dimensions |
72 mm x 33 mm x 119 mm (W x L x H) |
Environment |
Operating Temp. |
-25 ~ 75¢J |
Storage Temp. |
-30 ~ 85¢J |
Humidity |
5 ~ 95% RH, non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
GW-7557-B CR
|
PROFIBUS/HART Gateway (RoHS)
|
|
|
| |
|
|
| |
|
|
|
|
