GW-7433D
~ NEW ~

Modbus TCP server/RTU slave to CANopen master gateway

“Embedded Internet” and “Embedded Ethernet” are hot topics today. Nowadays the Ethernet protocol becomes a kind of standard for local area network. Via Internet, connectivity is occurring everywhere, from home appliances to vending machines, to testing equipment, to UPS…etc. Using Ethernet for network in industrial area is appealing because the required cabling is already installed.
The GW-7433D is a solution that provides a communication transformation between CANopen protocol and Modbus/TCP & RTU protocol. It solves a mission-critical problem, and connecting an existed CANopen network with Ethernet-base master device as long as this master device supports Modbus/TCP protocol. It enables CANopen networks to be coupled together with the Internet/Ethernet, whereby remote monitoring and controlling is achieved.

For CANopen network, the GW-7433D is a CANopen master device. It supports PDO and SDO functions to communicate with slave devices. From the view of Modbus TCP & RTU network, GW-7433D plays a Modbus TCP server or Modbus RTU slave role. It can receive the commands from Modbus TCP client or Modbus RTU master, and process the commands to reply or send the related CANopen data. We provide utility software for users to configure the parameters of CANopen slaves to GW-7433D. When GW-7433D boots up, it will collect the necessary information from all slaves which are predefined in the GW-7433D by using utility. The following figure shows the application architecture for the GW-7433D.

• Control System • Building Automation • Factory Automation • Distributed data acquisition

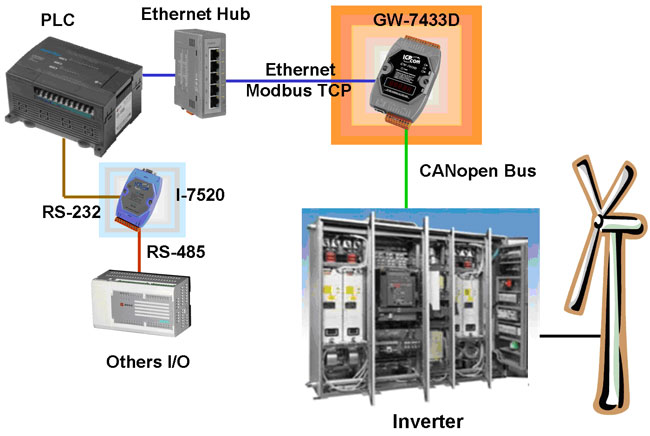

•The Wind Farm application in the Inner Mongolia of China –
The user applies ICP DAS’s GW-7433D and I-7520 to integrate the large inverters and PLC for the monitor and control of the wind turbines

back

Follow the CiA CANopen Standard DS-301 v4.02
Support Modbus RTU for COM1(RS-232) and COM2(RS-485)
Support up to 10 CANopen slave devices
Allow Max 5 Modbus TCP clients to access GW-7433D simultaneously
Provide listen mode. The function can let the GW-7433D monitor the CANopen slave data without bothering the CANopen network
Support Node Guarding and Heartbeat Consumer protocol
Support more than 120 CANopen SDO/PDO commands
Support 4 data types: Boolean、Byte、Word、Double Word (4-byte)
Provide the cyclic mode and command mode for RxPDO
Provide the CANopen disconnection detection
On-line add/remove CANopen slaves
Allow to get the CAN status by Modbus commands
Allow to get the communication states of the CANopen slave and GW-7433D by Modbus commands
Allow to reset CANopen slaves by Modbus commands
Support 3072 DI channels, 3072 DO channels, 640 AI channels, and 640 AO channels

back

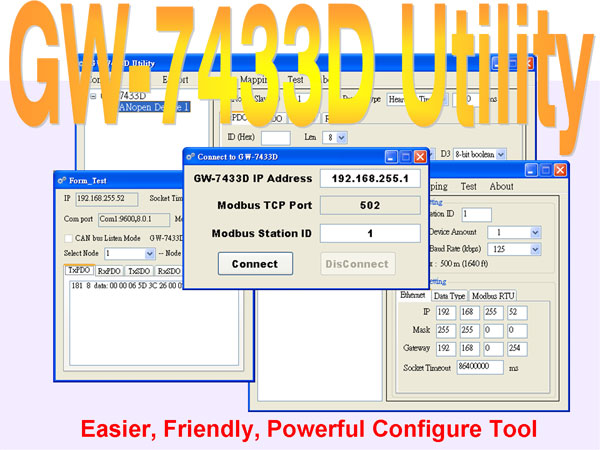

Provides Modbus address mapping table
Provides the test functions for checking the communication status between the GW-7433D and the CANopen slaves
Provides export/import the configure file from/to the GW-7433D
Little-endian and Big-endian selectable

back

The simple steps about how to use GW-7433D are depicted as follows:

Select proper CANopen slaves for users’ application.
Use the GW-7433D Utility to link the GW-7433D Module via Ethernet.
Set the IO parameters of CANopen slave devices into GW-7433D by GW-7433D Utility.
The GW-7433D module will initialize automatically and implement the GW-7433D in your Modbus/TCP or Modbus RTU network.

back

Only the following Modbus TCP & RTU commands are supported by the GW-7433D gateway.

Code	Name	Description
01(0x01)	Read Coil Status	Read the ON/OFF status of discrete outputs in the slave
02(0x02)	Read Input Status	Read the ON/OFF status of discrete inputs in the slave
03(0x03)	Read Holding Registers	Read the binary contents of holding registers in the slaves
04(0x04)	Read Input Registers	Read the binary contents of input registers in the slaves
05(0x05)	Force Single Coils	Forces one coil in a sequence of coils to either ON or OFF
06(0x06)	Preset Single Register	Preset an integer value into a single register.
15(0x0F)	Force Multi Coils	Forces each coil in a sequence of coils to either ON or OFF
16(0x10)	Preset Multi Registers	Preset value into a sequence of holding registers

back

Hardware
Watchdog	Watchdog IC
CAN Interface
Controller	NXP SJA1000T with 16 MHz clock
Transceiver	NXP 82C250
Connector	5-pin screwed terminal block (CAN_L, CAN_SHLD, CAN_H, N/A for others)
Isolation	1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Protocol	CANopen DS-301 ver4.02, DS-401 ver2.1
UART Interface
COM 1	RS-232
COM 1 Connector	5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND )
COM 2	RS-485 (Self-turner inside)
COM 2 Connector	2-pin screwed terminal block (DATA+, DATA-)
Protocol	Modbus RTU
Ethernet Interface
Controller	10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
Connector	RJ-45 with LED indicator
Protocol	Modbus TCP
Power
Power supply	Unregulated +10 ~ +30 VDC
Protection	Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption	2.5 W
Mechanism
Dimensions	72mm x 33mm x 122mm (W x L x H)
Environment
Operating Temp.	-25 ~ 75 ℃
Storage Temp.	-30 ~ 80 ℃
Humidity	10 ~ 90% RH, non-condensing

back

GW-7433D-G CR	Modbus TCP server & Modbus RTU slave to CANopen master Gateway (RoHS)

back

4PCD-002	EMI Ferrite Split/Snap-On Core
M12A-5P-IP68	Field-Installation A-coded 5-pin Female
