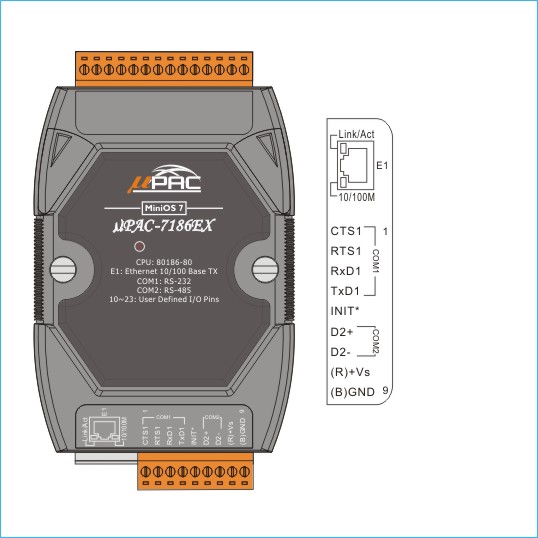

The £gPAC-7186EX is a palm-size programmable automation controller that with Ethernet, RS-232, RS-485 communication. ICPDAS provide easy-to-use software development tool kits (Xserver, VxComm, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).
For the hardware, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM, ASIC key & other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus but the bus can support only one board. There are more than 50 boards available for £gPAC-7186EX, you can choose one of them to expand hardware features. |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Support for Virtual COM technology |
Using the VxComm technology, PC can create virtual COM ports to map the RS-232, RS-485 of the£gPAC-7186EX. The software running on the PC can operate the virtual COM ports like a standard COM port to access the serial devices connect to the £gPAC-7186EX. That is to say, the original software developed for the serial devices can access the serial devices via the Ethernet/Internet without any modification.
Each PC can control up to 256 COM ports (including real COM ports). Using the I/O expansion board, each £gPAC-7186EX can have up to 8 COM ports. |
 |
|
| Support Modbus Protocol |
Using the Modbus firmware, £gPAC-7186EX offers following Modbus features:
- Modbus/TCP/RTU/ASCII slave
- Modbus/TCP/RTU/ASCII master
- Gateway for Modbus/TCP to Modbus/RTU
|
|
| Easy-to-use software development tool kits (using C language) |
| If the default firmware does not totally fulfill the user's application needs, custom firmware can be developed for £gPAC-7186EX using the SDK (Xserver, Modbus library) provided by ICPDAS. |
|
| Ethernet Protocols |
| TCP, UDP, IP, ICMP, ARP |
|
| Support Web Configuration |
| £gPAC-7186E has a built-in web server for configuration. You can use standard web browsers (such as IE, Netscape, Firefox,..etc) to configure its Ethernet and COM ports configurations. |
|
| Remote Configuration/Maintenance |
| £gPAC-7186EX can be operated via the Ethernet (TCP/IP or UDP) or RS-232, to allow tasks such as downloading programs, configuration, updating the MiniOS7, etc. |
|
| Built-in watchdog timer (WDT) |
| £gPAC-7186EX include an internal watchdog timer (WDT). The watchdog timer will trigger a system reset if the main program fails or neglects to regularly service the watchdog. The intention is to bring the system back from the hung state into normal operation. |
|
| I/O Expansion Bus Interface |
| The £gPAC-7186EX support the use of an I/O expansion bus to add a single I/O Expansion Board. ICPDAS provides all function libraries for I/O Expansion Boards to enable easy use of the I/O Expansion Board functions. |
 |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| CPU |
| CPU |
80186 or compatible (16-bit and 80 MHz) |
| SRAM |
512 KB |
| Flash |
512 KB; Erase unit is one sector (64K bytes); 100,000 erase/write cycles. |
| EEPROM |
16 KB
Data retention: 40 years; 1,000,000 erase/write cycles. |
| NVRAM |
31 Bytes (battery backup, data valid up to 10 years) |
| RTC (Real Time Clock) |
RTC Provide seconds, minutes, hours, date of week/month; month and year, valid from 1980 to 2079 |
| 64-bit Hardware Serial Number |
Yes |
| Built-in Watchdog Timer |
Yes (0.8 second) |
| Communication Interface |
| COM1 |
RS-232 (TxD, RxD, CTS, RTS and GND); Non-isolated |
| COM2 |
RS-485 (D2+, D2-; self-tuner ASIC inside); Non-isolated |
| Ethernet Port |
10/100Base-TX Ethernet Controller
(Auto-negotiating, Auto_MDIX, LED indicator) |
| COM Port Formats |
| Data bit |
7, 8 |
| Parity |
Even, Odd, None |
| Stop bit |
1 |
| LED Display |
| 5-Digit 7 Segment LED Display |
Yes (for £gPAC-7186EXD only) |
| System LED Indicator |
Yes |
| Hardware Expansion |
| I/O expansion bus |
Yes |
| User defined I/O pins |
14 pins |
| Dimensions |
| W x H x D |
72 mm x 123 mm x 35 mm |
| Operating Environment |
| Operating Temperature |
-25¢XC ~ +75¢XC |
| Storage Temperature |
-40¢XC ~ +80¢XC |
| Relative Humidity |
5 ~ 90% RH, non-condensing |
| Power |
| Protection |
Power reverse polarity protection |
| Frame Ground for ESD Protection |
Yes |
| Required Supply Voltage |
+10 ~ +30 VDC (non-regulated) |
| Power consumption |
1.5 W for £gPAC-7186EX
2.5 W for £gPAC-7186EXD |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| £gPAC-7186EX CR |
Palm-size £gPAC(80MHz CPU,10/100 Ethernet,512K SRAM,512K Flash ,RS-232*1,RS-485*1, RoHS) |
| £gPAC-7186EXD CR |
Palm-size £gPAC(80MHz CPU,10/100 Ethernet,512K SRAM,512K Flash ,RS-232*1,RS-485*1, RoHS) with 7-segment display |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| GPSU06U-6 |
24 V/0.25 A, 6 W Power Supply |
| DIN-KA52F |
24 V/1.04 A, 25 W Power Supply with DIN-Rail Mounting |
| MDR-20-24 |
24 V/1 A, 24 W Power Supply with DIN-Rail Mounting |
| I/O Expansion Boards |
Other add-on expansion boards refer to expansion board selection guide |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
