PC-Based Solutions

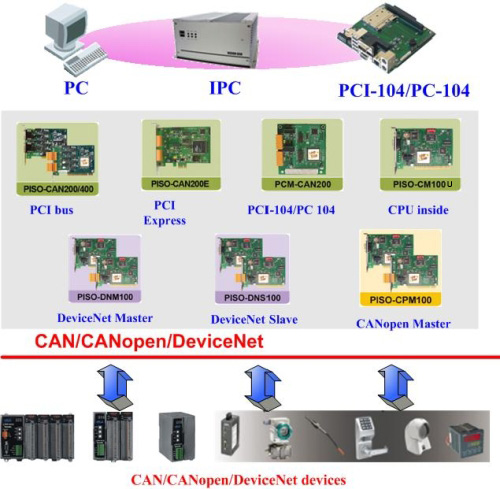

For the PC-Based Solutions, ICP DAS proved the CAN communication board for PCI, Universal PCI, PCI Express, PCI-104, and PC-104 interface. They can be applied in lots of IPC to implement the CAN/DeviceNet/CANopen applications. In addition, these products provide DeviceNet/CANopen protocol tool for users to develop the DeviceNet/CANopen applications easily.

CAN
PISO-CAN200/400-D/T	2/4 Port CAN bus PCI interface card with CANopen master Library
PISO-CAN200/400U-D/T	2/4 Port CAN bus Universal PCI interface card with CANopen master Library
PISO-CAN200E-D/T	2 channel CAN bus PCI Express x1 interface card
PISO-CM100U-D/T	one channel CAN bus Intelligent PCI interface card
PCM-CAN200	2 channel CAN bus PCI-104/PCI-104+ interface card
PCM-CAN200S	2 CAN channel PC-104 CAN module
CANopen
PISO-CPM100-D/T	one channel CANopen Master Intelligent PCI interface card
DeviceNet
PISO-DNM100-D/T	1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside
PISO-DNS100-D/T	1 Port Intelligent DeviceNet Multi-Slave Board
-D is for D-sub connector and -T is for 5-pin screw Terminal connector

CANopen Application

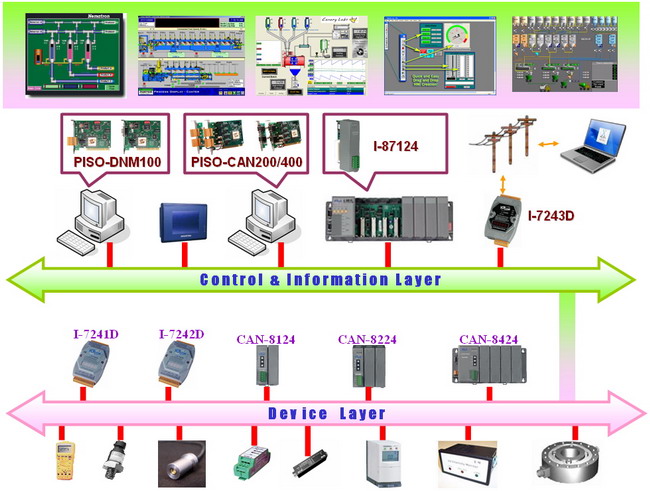

DeviceNet Application

DeviceNet slave Application

Special Application

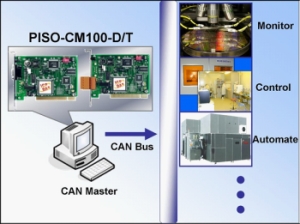

Intelligence CAN card with 186 CPU inside- PISO-CM100. The product can be programmed by users to handle the user-defined CAN protocol.

For Development tool
