All the palm-size PACs have same form factor and system architecture. With different software or communication interface, they can be classified to several solutions as following. |
| |
 |
Will be available soon |
 |
Available soon |
 |
Will be phased out |
|
| |
I-7188 series C language based uPAC (Serial Connectivity)
I-7188 is a palm-size PAC that equips a DOS-like OS (MiniOS7). Its software development toolkit is C language compilers that can build 16-bit executable file (*.exe) running on an 80188/80186 CPU. There are two free compilers ( Turbo C 2.0 and Turbo C++ 1.01 ), we suggest users to use the Turbo C++ 1.01.
By the multi-COM port feature, I-7188 can integrate serial devices (for example: barcode reader, card reader, HMI) and use the few onboard I/O points to implement embedded applications. |
| Item |
CPU |
SRAM |
Flash |
I/O Expansion Bus |
64-bit hardware serial number |
RTC |
DI |
DO |
RS-232/
RS-485 |
CAN Bus |
| |
I-7188
I-7188D |
40M Hz |
256 KB |
512 KB |
- |
- |
Yes |
- |
- |
4 |
- |
| |
I-7188XA
I-7188XAD |
512 KB |
For memory board only |
Yes |
2 |
2 |
| |
I-7188XB
I-7188XBD |
Yes |
1 |
1 |
2 |
|
I-7188XBD-CAN |
- |
Yes |
| |
I-7188XC
I-7188XCD |
20M Hz |
128 KB |
Yes |
- |
- |
2 |
3 |
- |
|
|
|
| |
|
| back |
| |
|
Will be available soon |
|
Available soon |
|
Will be phased out |
|
| |

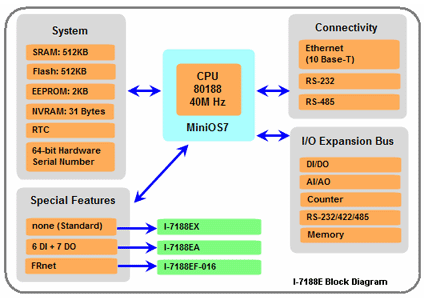

I-7188E series C language based uPAC (Ethernet and Serial Connectivity)
I-7188E series is an upgrade version of I-7188 series. It equips a 10 Base-T Ethernet port to make a connection to the Ethernet/Internet word.
|
| Item |
Special Feature |
CPU |
SRAM |
Flash |
I/O Expansion Bus |
DI |
DO |
Ethernet |
RS-232/
RS-485 |
FRnet |
| |
I-7188EA
I-7188EAD |
DI/DO |
40M Hz |
512 KB |
512 KB |
- |
6 |
7 |
1 |
2 |
- |
| |
I-7188EX
I-7188EXD |
I/O Expansion Bus |
Yes |
- |
- |
| |
I-7188EF-016
I-7188EFD-016 |
FRnet |
- |
Yes |
|
|
|
| |
|
| back |
| |
|
Will be available soon |
|
Available soon |
|
Will be phased out |
|
| |

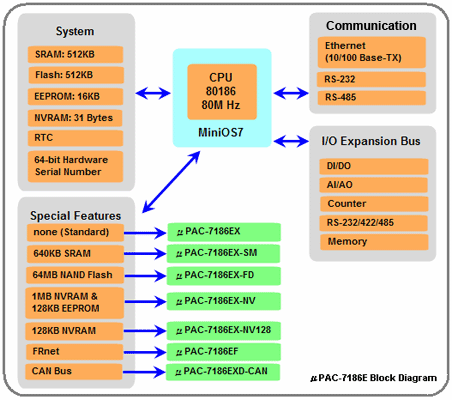

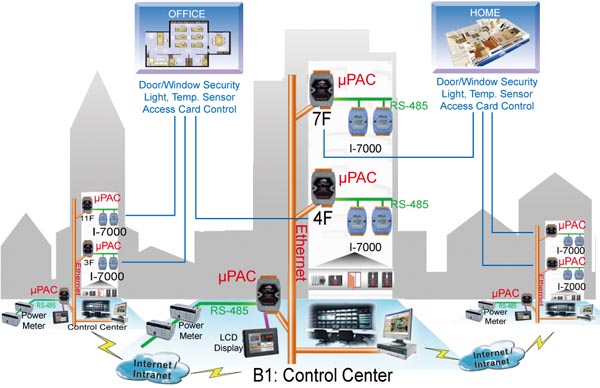

£gPAC-7186E series C language based uPAC (Ethernet and Serial Connectivity)
£gPAC-7186E is our new generation of palm-size PAC. It equips a more power full CPU (upgraded from 40M Hz to 80M Hz) and a faster Ethernet port (upgraded from 10 Base-T to 10/100 Base-TX). Compared with I-7188E series, £gPAC-7186E”¦s computing speed is up to 4 times faster. And there are more memory configuration choices to select from.
 |
| Item |
Special Feature |
CPU |
SRAM |
Flash |
I/O Expansion Bus |
Ethernet |
RS-232/
RS-485 |
PoE |
|
£gPAC-7186EX
£gPAC-7186EXD |
- |
80M Hz |
512 KB |
512 KB |
Yes |
1 |
2 |
- |
|
£gPAC-7186PEX
£gPAC-7186PEXD |
Yes |
|
£gPAC-7186EX-SM
£gPAC-7186EXD-SM |
640 KB SRAM |
640 KB |
- |
|
£gPAC-7186EX-FD
£gPAC-7186EXD-FD |
64 MB NAND Flash |
512 KB |
|
£gPAC-7186EXD-CAN |
CAN port |
- |
|
|
|
| |
|
| back |
| |
|
Will be available soon |
|
Available soon |
|
Will be phased out |
|
| |
ISaGRAF based uPAC
The controller fully supports all five of the IEC61131-3 standard PLC languages:
1. Ladder diagram.
2. Function block diagram.
3. Sequential function chart.
4. Structured text.
5. Instruction List plus flow chart.
It supports DCON and Modbus protocol to link to remote I/O modules via the RS-232/485 or Ethernet. |
| Item |
CPU |
SRAM |
Flash |
I/O Expansion Bus |
DI |
DO |
Ethernet |
RS-232/
RS-485 |
PoE |
|
£gPAC-7186EG
£gPAC-7186EGD |
80M Hz |
640 KB |
512 KB |
Yes |
- |
- |
10/100 Base-TX |
2 |
- |
|
£gPAC-7186PEG
£gPAC-7186PEGD |
Yes |
| |
I-7188XG
I-7188XGD |
40M Hz |
512 KB |
1 |
1 |
- |
- |
| |
I-7188EG
I-7188EGD |
- |
- |
10 Base-T |
|
|
|
| |
|
| back |
| |
|
Will be available soon |
|
Available soon |
|
Will be phased out |
|
| |
The palm-size PAC all has the same form factor and system architecture. With different firmware and communication interface, they can be a gateway to transmite data to another media or translate to different protocol.
 |
Type |
Model |
Description |
|
|
|
|
|
7188E series programmable Modbus Gateway
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7188E series Ethernet to Serial Port converter
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
752N series addressable RS-485 to RS-232/422 converter
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
I-7188E Ethernet to FRnet high speed I/O converter
|
|
|
|
|
|
|
|
| |
|
| back |
| |
