Nowadays, Linux has been adopted widely by many users because of the properties of stability, open source, and free of charge. In the mean while, owing to the great supports from more and more companies and the mature development, Linux is now becoming one of the most popular OS on the market. Furthermore the hardware requirements of Linux OS in embedded system is not high, just only 386 CPU or better and 8 MB RAM. Therefore, besides Win CE of Microsoft, Linux has been already become another good choice in embedded OS.

The LinPAC-8000 is a second generation Linux-based PAC from ICP DAS and is equipped with a powerful CPU module running a Linux kernel 2.6/3.x operating system, various communication interfaces (VGA, USB, Ethernet and RS-232/485) and slots for both high performance parallel bus type (high profile I-8K series) and serial bus type (high profile I-87K series) I/O modules.

Compared with the first generation LinCon-8000, not only is the CPU performance improved have been added (from 206 MHz to 500 MHz/1 GHz) and upgraded OS from Linux kernel 2.4 to Linux kernel 2.6/3.x, but many reliability features, such as dual LAN, redundant power input, and dual battery backup SRAM, etc., making the LinPAC-8000 one of the most powerful systems available.

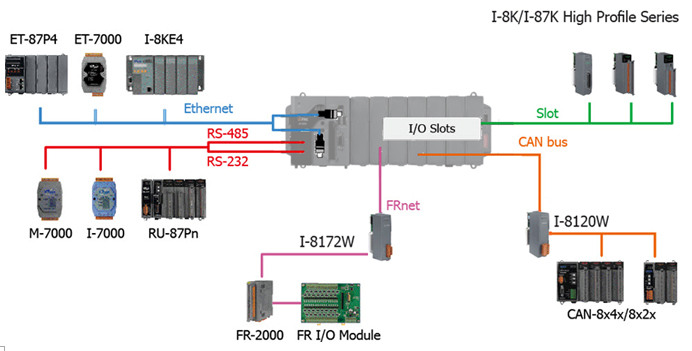

The LinPAC-8000 gives users all of the best features of both traditional PLCs and Windows capable PCs. The LinPAC-8000 includes a VGA port allowing users to choose a regular LCD monitor for display of HMI application, USB port to connect with Keyboard, Mouse, USB device for storage or touch monitor, micro SD/SDHC memory for storage of program and data. The figure is the general application for LinPAC-8000.





[Development Environment]
LinPAC SDK :
ICP DAS provides the library file - libi8k.a which includes all the functions of the I-7000/8000/87k series modules. Users just install LinPAC SDK in Windows PC, the cygwin environment will be established automatically and users can develop LinPAC-8000 applications easily by GNU C Language. Apart from that, users can also use Java to develop LinPAC applications as well.

Note: Cygwin is a Linux-like environment for Windows.

[Built-in Server]
Web Server: Through these servers, users active web pages can be placed in the LinPAC and make LinPAC be a Web Site.
Ftp Server, Telnet Server, SSH Server: Through these servers, users can remote control and transfer files with LinPAC by encrypting mode.
UPnP: UPnP allows automatic discovery and control of services available on the network from other devices without user intervention.

[Supported Communication]
Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN:
LinPAC can be connected to internet by Wireless, Modem, GPRS or Ethernet method and users can also combine two LAN via LinPAC.
VxComm: With VxComm Server in the LinPAC, users can remote control RS-232/422/485 COM ports in the LinPAC via users' PC.
Expansion serial ports: With the I-8000 communication modules, LinPAC-8000 can handle up to 30 serial ports.
Support USB to Serial Converter --- 7560、7561、7563:
When 7560/61/63 converter module is plugged in the LinPAC, the additional com port will be added in the LinPAC including RS-232/485.

[Supported Protocol]
CAN Bus Network, Industrial Modbus TCP/RTU, SNMP:
Through these BUS support, the control process will be more rapid, stable and easier.

[Security]
Unique Serial Number: As soon as "Unique Serial Number" added in users' program, then users' program will be locked for this LinPAC.
Firewall, NAT: Firewall is also supported in the LinPAC, therefore the security will be prompted.
VPN: Virtual Private Network lets network communication with secure remote access for client computers.

[Java]
JVM, JIOD( Java I/O Driver): Users can also use Java Language to Write/Compile l/O program in the LinPAC.

[Interpreter]
Perl, PHP: The program written by Perl and PHP interpret language can be also executed in the LinPAC.

[GUI]
GTK+ Library: Users can write LinPAC GUI programs by using GTK+ library.

[Other]
USB WebCam: When WebCam is plugged in the LinPAC, the video will show by using built-in video program.
RAM Disk: Users' programs can be saved in four places of LinPAC including: RAM, microSD, microSDHC, Flash memory.
