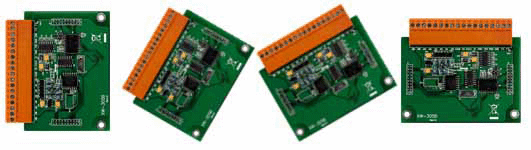

The XW-board series are for uPAC-5000, LP-51xx, and WP-5000 series.
One PAC can only plug only one XW-board.
The XW-board series have following common specification:
  • DI channel is dry contact, sink type.
  • DO channel is open collector, sink type.
Will be available
Available soon
Will be phased out
DI, DO Expansion
Model
DI
DO
Isolation
XW107 8 8 -
XW107i 3750 Vrms
XW110i 16 - 3750 Vrms
XW111i - 16 3750 Vrms

TOP | HOME

Will be available
Available soon
Will be phased out
AI, AO Expansion
Model
AI (12-bit)
AO (12-bit)
DI
DO
Isolation
Ch
Range
Ch
Range
XW304 6 +/-5 V 1 +/-5 V 4 4 -
XW310 4 +/-10 V 2 +/-10 V 3 3
XW310C 0 ~ 20 mA 0 ~ 20 mA

TOP | HOME

Will be available
Available soon
Will be phased out
RS-232, RS-422, RS-485 Expansion
Model
Serial Port
DI
DO
Isolation
Type
Ch
Wiring
  XW506 RS-232 6 3-wire - - -
XW507 RS-422/485 1 4/2-wire 5 5
XW508 RS-232 8 3-wire - -
  XW509 RS-232 2 5-wire 4 4
  XW511i RS-485 4 2-wire - - 2500 Vrms
  XW514 RS-485 8 2-wire - - -
Note: The WP-5147 / WP-5147-OD doesn't support the above XW boards.
