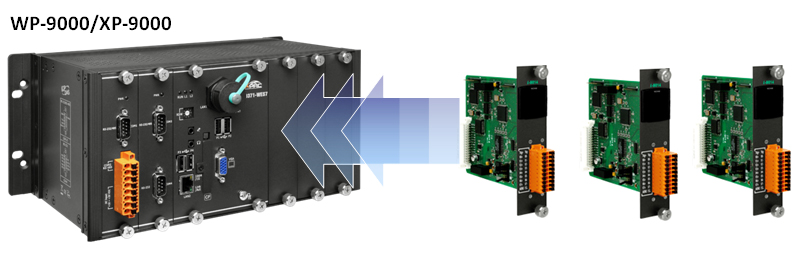

I-9K and I-97K series modules are provided for combining a variety of I/O functions within the WP-9000XP-9000, LX-9000 and LP-9000 programmable automation controllers (PAC). The I-9k series is based on a parallel interface with high communication speed; while the I-97K series is based on a serial interface. The differences between the two series are listed as follows:

Model I-9K Series I-97K Series
Communication interface Parallel bus Serial bus
Protocol - DCON
Communication speed Fast Slow
DI with latched function - Y
DI with counter input - Y (100 Hz)
Power on value Y Y
Safe value Y Y
Programmable slew-rate for AO module - Y
