| LX-8031/LX-8131/LX-8331/LX-8731 |
|
| |
| ~ NEW ~ |
|
|
|
 |
 |
 |
 |
| Model: LX-8031 |
Model: LX-8131 |
Model: LX-8331 |

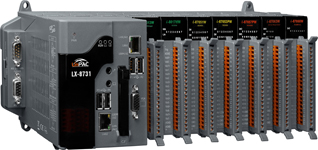

Model: LX-8731 |
|
|
| |
 |
The LX-8x3x are Linux based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an x86 dual-core CPU, 0/1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-8K and I-87K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules.
User's programs can be saved in external storage device, such as CF Card or USB mass storage device. LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/8000/87k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly. |
| |
 |
- x86 dual-core (1.0GHz)
- Linux kernel 3.2
- Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
- 64-bit Hardware Serial Number for Software Protection
- Rich I/O Expansion Ability (RS-232/RS-485, FRnet)
- 2 10/100/1000M Ethernet Ports
- Redundant Power Input
- Operating Temperature: -25 ~ +75°C
|
|
| |
 |
 |
| |
 |
| Models |
LX-8031 |
LX-8131 |
LX-8331 |
LX-8731 |
| System Software |
| OS |
Linux kernel 3.2 |
| Embedded Service |
SFTP server, Web server, SSH |
| SDK Provided |
LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| CPU Module |
| CPU |
x86 dual-core (1.0 GHz) |
| SDRAM |
2 GB DDR3 |
| MRAM |
512 KB |
| Flash |
mSATA slot with one 32 GB SSD |
| EEPROM |
16 KB |
| CF |
CF socket with one 16 GB CF card (support up to 32 GB) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timers |
Yes |
| Programmable LED Indicator |
3 (Run, L1, L2) |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
No |
Yes (8 bits) |
| VGA & Communication Ports |
| VGA Resolution |
1280 x 1024 to 1920 x 1080 for 16:9 display; 640 x 480 to 1024 x 768 for 4:3 display |
| Dual Ethernet Ports |
RJ-45, 10/100/1000M Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 2.0 |
4 |
| ttySA0 |
RS-232 (RxD, TxD and GND);
non-isolated |
Internal communication with the high profile I-87K series modules in slots |
| ttyS0 |
RS-485 (Data+, Data-); 3000 VDC isolated |
| ttyS1 |
RS-232/485 (RxD, TxD and GND for RS-232; Data+, Data- for RS-485); 3000 VDC isolated |
| Console |
RS-232 (RxD, TxD, CTS, RTS and GND for RS-232); 3000 VDC isolated |
| ttyS34 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); 3000 VDC isolated |
| I/O Expansion Slots |
0 |
1 |
3 |
7 |
| Mechanical |
| Dimensions (W x L x H) |
137 mm x 132 mm x 125 mm |
169 mm x 132 mm x 125 mm |
231 mm x 132 mm x 125 mm |
355 mm x 132 mm x 125 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
2.2 A, 5 V supply to CPU and backplane, 20 W in total |
2.5 A, 5 V supply to CPU and backplane,
1.5 A, 5 V supply to I/O expansion slots,
20 W in total |
2.8 A, 5 V supply to CPU and backplane,
4.2 A, 5 V supply to I/O expansion slots,
35 W in total |
3 A, 5 V supply to CPU and backplane,
4 A, 5 V supply to I/O expansion slots,
35 W in total |
| Consumption |
12 W (0.5 A @ 24 VDC) |
14.4 W (0.6 A @ 24 VDC) |
15.6 W (0.65 A @ 24 VDC) |
16.8 W (0.7 A @ 24 VDC) |
|
| |
 |
| LX-8031 |
Standard PAC with x86 dual-core CPU and 0 I/O Slot |
| LX-8131 |
Standard PAC with x86 dual-core CPU and 1 I/O Slot |
| LX-8331 |
Standard PAC with x86 dual-core CPU and 3 I/O Slots |
| LX-8731 |
Standard PAC with x86 dual-core CPU and 7 I/O Slots |
|
| |
|
|
| |
|
|
