LP-51xx Series |
|
| |
| ~ Phased-out ~ |
|
|
|
 |
 |
 |
 |
Model: LP-5131 |
Model: LP-5131-OD |
Model: LP-5141 |
Model: LP-5141-OD |
|
| |
 |
The LP-51xx series is equipped with a PXA270 CPU (520 MHz) and running a Linux kernel 2.6.19 operating system, multiple communication interfaces, such as VGA, USB, Ethernet, RS-232/485 and audio ports. Further more, it also contains an optional I/O expansion board (XW-Board) to implement various I/O functions, such as DI, DO, A/D, D/A, Timer/Counter, UART, fl ash memory, or battery backup SRAM, etc.
Main advantage of the LP-51xx series is its high quality control system, including its stability, small core size, optional I/O expansion board (XW-Board), support for Web services (Web/FTP/Telnet/SSH server), and multiple development environments (LinPAC SDK for Linux and Windows environment using the GNU C language, GUI software), etc., all of which give users the best features of both traditional PLCs and Linux capable PCs, meaning that it is one of the most powerful and flexible embedded control systems available. |
 |
| |
| 1. USB Port |
4. Microphone-In |
7. COM 2 (RS-485) |
10. Frame Ground |
13. VGA Port |
| 2. Ethernet Port |
5. Earphone-Out |
8. COM 3 (RS-232) |
11. LED Indicator |
14. XW-board (optional) |
| 3. Ethernet Port |
6. COM 1 (RS-232)(console) |
9. Power |
12. microSD socket |
15. Operating Modes Selector |
|
| |
 |
- PXA270, 520 MHz CPU
- Linux kernel 2.6.19 Inside
- Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
- 64 MB Flash, 128 MB SDRAM
- Built-in Ethernet, USB, RS-232, RS-485 Ports
- Built-in 800 × 600 VGA Port
- Built-in Audio with Microphone-In and Earphone-Out
- I/O Expansion Board Optional (XW-Board)
- Operating Temperature: -25 ~ +75°C
|
| |
 |

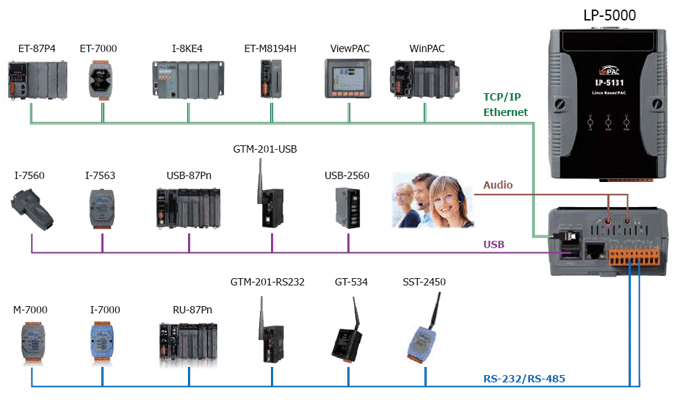

| Multiple communication interface and Field Bus I/O Expansion |
 |
| |
 |
| Models |
LP-5131 |
LP-5131-OD |
LP-5141 |
LP-5141-OD |
| System Software |
| OS |
Linux kernel 2.6.19 |
| Embedded Service |
Web Server, FTP Server, Telnet Server, SSH Server |
| SDK Provided |
Standard LinPAC SDK for Windows and Linux by GNU C language |
| CPU Module |
| CPU |
PXA270, 520 MHz |
| SDRAM |
128 MB |
| NVRAM |
31 Byte (Battery backup, data valid up to 10 years) |
| Flash |
64 MB |
| EEPROM |
16 KB |
| Expansion Flash Memory |
microSD socket with one 2 GB microSD card (support up to 32 GB microSDHC card) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timer |
Yes |
| LED indicator |
3 Dual-Color LEDs (PWR, RUN, L1 ~ L4; RUN, L1 ~ L4 for user programmable) |
| Rotary Switch |
Yes (0 ~ 9) |
| VGA & Communication Ports |
| VGA |
Yes
640 × 480/800 × 600 |
| Ethernet |
RJ-45 x 1, 10/100 Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
RJ-45 x 2, 10/100 Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 1.1 (host) |
2 |
1 |
Audio Port
(Microphone-In and Earphone-Out) |
- |
Yes |
- |
Yes |
| COM 1 |
RS-232 (RxD, TxD and GND); Non-isolated |
| COM 2 |
RS-485 (Data+, Data-); 2500 VDC isolated |
| COM 3 |
RS-232 (RxD, TxD and GND); Non-isolated |
| I/O Expansion |
| I/O expansion bus |
Yes, one optional XW-board |

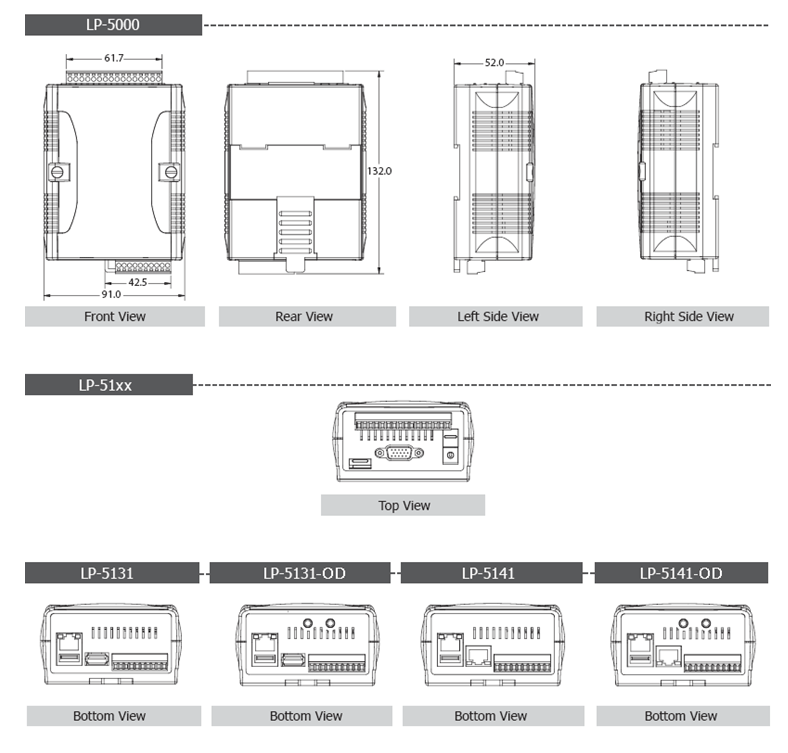

| Mechanical |
| Dimensions (W x L x H) |
91 mm x 132 mm x 52 mm |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Isolation |
1 kV |
| Consumption |
4.8 W |
6 W |
4.8 W |
6 W |
|
| |
 |
 |
| |
 |
LP-5131-EN CR |
PAC with Linux kernel 2.6.19 and one LAN port (English Version of OS) (RoHS) |
LP-5131-OD-EN CR |
PAC with Linux kernel 2.6.19 and one LAN port and Audio (English Version of OS) (RoHS) |
| |
LP-5141-EN CR |
PAC with Linux kernel 2.6.19 and two LAN ports (English Version of OS) (RoHS) |
LP-5141-OD-EN CR |
PAC with Linux kernel 2.6.19 and two LAN ports and Audio (English Version of OS) (RoHS) |
|
| |
 |
| DP-665 |
24 VDC/2.5 A, 60 W and 5 VDC/0.5 A, 2.5 W Power Supply with DIN-Rail Mounting |
| DP-1200 CR |
24 VDC/5.0 A, 120 W Power Supply with DIN-Rail Mounting (RoHS) |
| MDR-20-24 CR |
24 VDC/5.0 A, 24 W Power Supply with DIN-Rail Mounting (RoHS) |
| MDR-60-24 CR |
24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS) |
| XW-Board |
Add-on I/O Expansion Board |
|
| |
|
|
| |
|
|
