LP-2241M

~ NEW ~

Model: LP-2241M

  • AM3354, 1 GHz CPU
  • 512 MB RAM and 512 MB Flash
  • Linux kernel 3.2.14
  • Real-Time Capability
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Bus (XV-Board)
  • 10/100/1000M Dual Ethernet Port
  • 3 Serial Ports (RS-232/485)
  • Operating Temperature: -25 ~ +75°C

The LP-2241M is equipped a Cortex-A8 CPU (1 GHz) and using Linux operating system (Linux Kernel 3.2.14). Linux Kernel 3.2.14 is a compact and real-time OS used to quickly create time critical and high performance applications. Main advantage of the LP-2241M is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server).


System Software
OS Linux Kernel 3.2.14
Embedded Service SFTP server, Web server, SSH
SDK Provided LinPAC SDK (GCC based toolchain and LinPAC Libraries)
CPU Module
CPU Cortex-A8, 1 GHz
SDRAM 512 MB DDR3
Flash 512 MB
FRAM 64 KB
Expansion Flash Memory microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card)
RTC (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number Yes, for Software Copy Protection
Dual Watchdog Timer Yes
LED Indicators 3 LED indicators for 3G, Power and Running; 3 LED for user defined
Rotary Switch Yes (0 to 9)

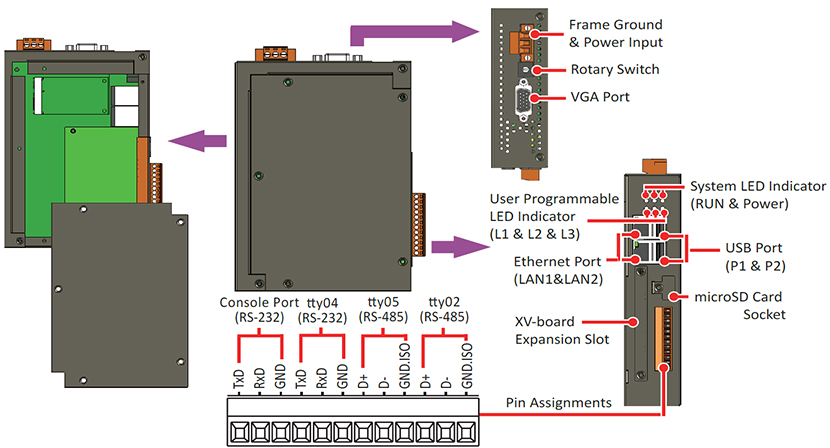

VGA & Communication Ports
VGA & Communication Ports VGA x 1 (max. resolution up to 1280 x 1024)
Ethernet RJ-45 x 2, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host) 2
Console Port RS-232 (RxD, TxD and GND); Non-isolated
ttyO2 RS-485 (Data+, Data-); Non-isolated
ttyO4 RS-232 (RxD, TxD and GND); Non-isolated
ttyO5 RS-485 (Data+, Data-); 2500 VDC isolated
I/O Expansion
I/O Expansion Bus Yes, one optional XV-board
Mechanical
Casing Metal
Dimensions (W x L x H) 35 mm x 167 mm x 119 mm
Installation DIN-Rail and Wall Mounting
Environmental
Operating Temperature -25 to +75°C
Storage Temperature -40 to +80°C
Ambient Relative Humidity 10 to 90% RH (non-condensing)
Power
Input Range +12 to +48 VDC
Consumption 4.8 W

LP-2241M CR PAC with Linux OS and two LAN port (Metal Case) (RoHS)

XV-Board Add-on I/O Expansion Board
