home > product> solutions > pac > LinPAC > LP-5231/LP-5231M

LP-5231/LP-5231M

  ~ NEW ~

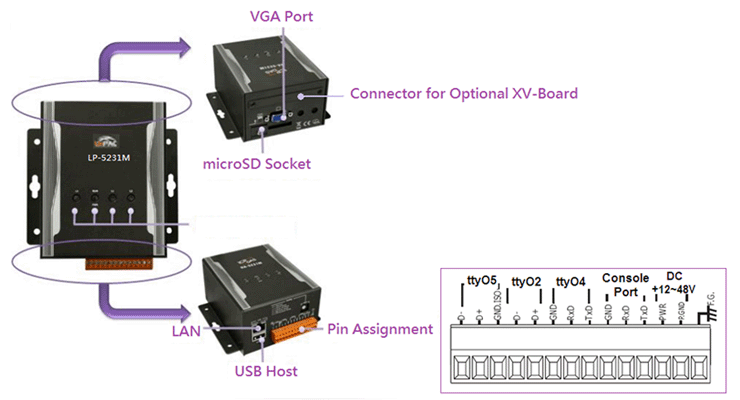

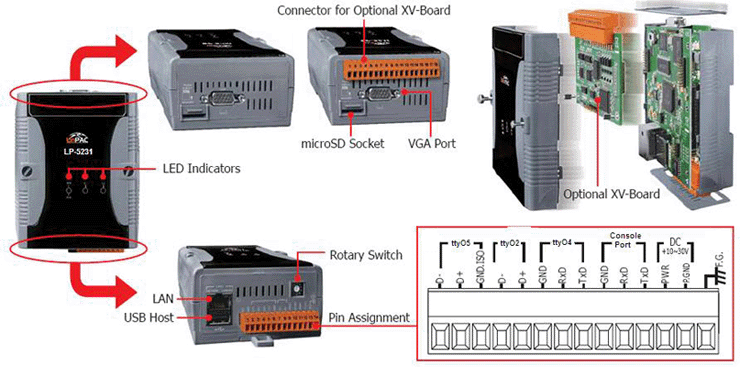

Model: LP-5231 Model: LP-5231M

  • AM3354, 1 GHz CPU
  • 512 MB RAM and 512 MB Flash
  • Linux kernel 3.2.14
  • Real-Time Capability
  • 64-bit Hardware Serial Number for Software Protection
  • I/O Expansion Bus (XV-Board)
  • 10/100/1000 Mbit/s Ethernet Port
  • 4 Serial Ports (RS-232/485)
  • Operating Temperature: -25 ~ +75°C

The LP-5231 series is equipped a AM3354 CPU (1 GHz) and using Linux operating system(Linux Kernel 3.2.14). Linux Kernel 3.2.14 is a compact and real-time OS used to quickly create time critical and high performance applications. Main advantage of the LP-5231 is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server)



Model LP-5231 LP-5231M
System Software
OS Linux Kernel 3.2.14
Embedded Service SFTP server, Web server, SSH
SDK Provided LinPAC SDK (GCC based toolchain and LinPAC Libraries)
CPU Module
CPU AM3354, 1 GHz
DDR3 SDRAM 512 MB
Flash 512 MB
FRAM 64 KB
Expansion Flash Memory microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card)
RTC (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number Yes, for Software Copy Protection
Dual Watchdog Timer Yes
LED indicator 4 LEDs(Power、Running and 2 user defined LEDs)
Rotary Switch Yes (0 ~ 9)
VGA & Communication Ports
VGA and Communication Ports VGA x 1 (max. resolution up to 1280 x 1024)
Ethernet 10/100/1000 Based-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host) 1
Console Port RS-232 (RxD, TxD and GND); Non-isolated
ttyO2 RS-485 (Data+, Data-); Non-isolated
ttyO4 RS-232 (RxD, TxD and GND); Non-isolated
ttyO5 RS-485 (Data+, Data-); 2500 VDC isolated
I/O Expansion Slots
I/O Expansion Bus Yes, one optional XV-board
Mechanical
Casing Plastic Metal
Dimensions (W x L x H) 91 mm x 132 mm x 52 mm 117 mm x 126 mm x 58 mm
Installation DIN-Rail Mounting DIN-Rail、Wall Mounting
Environmental
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +80 °C
Ambient Relative Humidity 10 ~ 90% RH (non-condensing)
Power
Input Range +12 VDC ~ +48 VDC
Consumption 4.8 W

LP-5231 CR PAC with Linux OS and one LAN port (Plastic Case)(RoHS)
LP-5231M CR PAC with Linux OS and one LAN port (Metal Case)(RoHS)

XV-Board Add-on I/O Expansion Board
