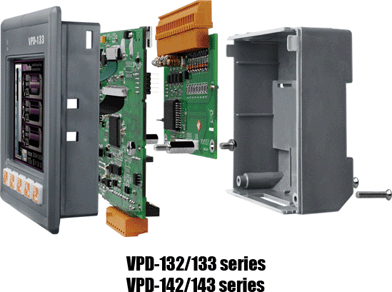

home > product> solutions > hmi & touch monitor> TouchPAD < I/O Expansion Boards(XV-Boards)




Will be available
Available soon
Will be phased out
DIO Expansion
Model
DI
DO
Channel
Type
Sink/Source
Channel
Sink/Source
  XV107 8 Wet Source 8 Sink
  XV107A Sink Source
  XV110 16 Dry/Wet Sink/Source - -
  XV111 - - - 16 Sink
  XV111A Source

Will be available
Available soon
Will be phased out
Relay output Expansion
Model
DI
Relay output
Channel
Type
Sink/Source
Channel
Type
  XV116 5 Wet Sink/Source 2 Signal Relay
4 Power Relay

Will be available
Available soon
Will be phased out
Multi-Function Expansion
Model
AI
AO
DI
DO
Channel
Range
Channel
Range
Channel
Type
Sink/Source
Channel
Sink/Source
XV306 4 ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA,
0 ~ 20 mA,
4 ~ 20 mA
- - 4 Wet Sink/Source 4 Relay, FormA, 6A
XV307 - - 2 0 V ~ +5 V, ±5 V,
0 V ~ +10 V, ±10 V,
0 mA~ +20 mA,
+4 mA ~ +20 mA
XV308 8 ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA,
0 ~ 20 mA,
4 ~ 20 mA
- - DI+DO=8 Dry/Wet Source DI+DO=8 Sink
XV310 4 ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA,
0 ~ 20 mA,
4 ~ 20 mA
2 0 V ~ +5 V, ±5 V,
0 V ~ +10 V, ±10 V,
0 mA~ +20 mA,
+4 mA ~ +20 mA
4 Dry/Wet Source 4 Source
