The LinPAC-5000 is the latest generation Linux-based PAC from ICP DAS. It's an embedded system controller which is dedicated to industrial control.

The LinPAC-5000 family is a palm-size PAC (Programmable Automation Controller) and is designed to provide fast, convenient, flexible and simplified solutions for industrial and embedded applications. It is equipped with a PXA270 CPU (520 MHz) running a Linux kernel 2.6.19 operating system, multiple communication interfaces (VGA, USB, Ethernet, RS-232/485 and audio ports) and powerful software including development tools.

The LinPAC-5000 provides the ability to add an I/O expansion bus allowing users implement various I/O functions such as D/I, D/O, A/D, D/A, Timer/Counter, and various communication interfaces (RS-232/422/485), etc. Customers can choose functions which they would like to combine, and then optimize the performance of the LinPAC-5000 for every different situation.

[Development Environment]
LinPAC SDK :
ICP DAS provides the library file — libi8k.a which includes all the functions of the I-7000/8000/87k series modules. Users just install LinPAC SDK in Windows PC, the cygwin environment will be established automatically and users can develop LinPAC-5000 Applications easily by GNU C Language. Otherwise, users can also use Java to develop LinPAC applications.

Note: Cygwin is a Linux-like environment for Windows.

[Built-in Server]
Web Server: Through these servers, users active web pages can be placed in the LinPAC and make LinPAC be a Web Site.
Ftp Server, Telnet Server, SSH Server: Through these servers, users can remote control and transfer files with LinPAC by encrypting mode.
UPnP: UPnP allows automatic discovery and control of services available on the network from other devices without user intervention.

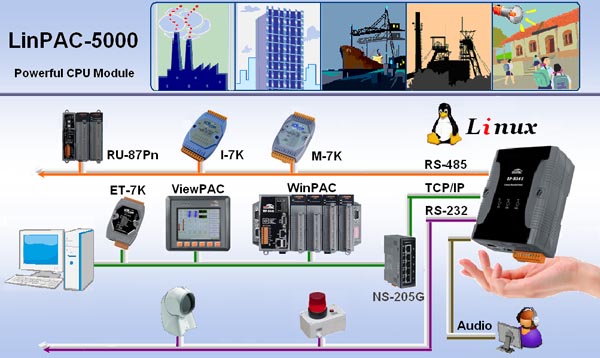

[Supported Communication]
Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN:
LinPAC can be connected to internet by Wireless, Modem, GPRS or Ethernet method and users can also combine two LAN via LinPAC.
VxComm: With VxComm Server in the LinPAC, users can remote control RS-232/422/485 COM ports in the LinPAC via users' PC.
Expansion serial ports: With the I-8000 communication modules, LinPAC-8000 can handle up to 30 serial ports.
Support USB to Serial Converter --- 7560、7561、7563:
When 7560/61/63 converter module is plugged in the LinPAC, the additional com port will be added in the LinPAC including RS-232/485.

[Supported Protocol]
CAN Bus Network, Industrial Modbus TCP/RTU, SNMP:
Through these BUS support, the control process will be more rapid, stable and easier.

[Security]
Unique Serial Number: A unique 64-bit serial number is assigned to each hardware device to protect your software against piracy.

[Java]
JVM, JIOD( Java I/O Driver): Users can also use Java Language to Write/Compile l/O program in the LinPAC.

[Interpreter]
Perl, PHP: The program written by Perl and PHP interpret language can be also executed in the LinPAC.

[GUI]
GTK+ Library: Users can write LinPAC GUI programs by using GTK+ library.

[Other]
USB WebCam: When WebCam is plugged in the LinPAC, the video will show by using built-in video program.
RAM Disk: Users' programs can be saved in four places of LinPAC including: RAM, microSD, microSDHC, Flash memory.
Resolution: 32 bit 800 x 600 There is one resolution mode supported in the LinPAC.
OEM LinPAC Boot Logo
