| W-8x0x Hardware Specification
|
|
|
|
|
|
| |

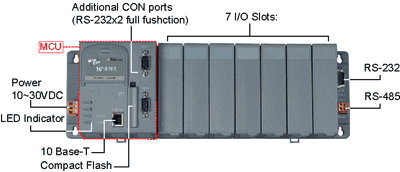

| W-8x0x with additional 2 serial ports (W-8701-R2/W-8301-R2/W-8001-R2) |
 |
|
|
| |
|
|
| |

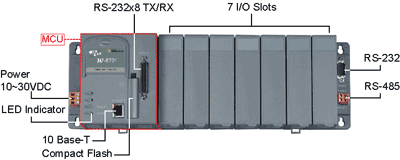

| W-8x0x with additional 8 serial ports
(W-8701-R8/W-8301-R8/W-8001-R8) |
 |
|
|
| |
|
|
| |
| Hardware features |
For some industrial automation environment, user can choose the WinCon-8000 without display (R2/R8) to reduce the budget and resource of the system. The hardware of WinCon-8000-R2/R8 is the same with standard WinCon-8000 except that there is no VGA,PS2 mouse/keyboard and USB for R2/R8. The additional 2 standard serial RS-232 ports are equipped with the WinCon-8000-R2, as the single 25-Pin D-sub RS232 with 8-channel Tx/Rx is equipped with the WinCon-8000-R8. With placement of WinCon-8000 without display on a network, it can serve as remote communication server. |
|
|
| |
|
|
| |
Common Specifications |
|
| |
WinCon-8000 without
Display |
W-8001-G-R2/R8
|
W-8301-G-R2/R8
|
W-8701-G-R2/R8 |
Processor |
compatible with Intel Strong ARM CPU, 206MHz |
Operating System |
Windows CE.NET 4.1 |
Pre-load Software |
Standard WinCon Software for W-8001-R2/R8,
W-8301-R2/R8 or W8701-R2/R8
|
SDRAM |
64M bytes |
Flash |
32M bytes |
EEPROM |
16K bytes |
Memory Expansion Slot |
1 x Compact Flash type II insert with ejector |
Interface |
N/A |
Ethernet Port |
1 x RJ45, 10BaseT |
COM 2 |
9-pin D-Sub (RS-232) |
COM 3 |
2-wire Terminal Block (RS-485) |
Additional Serial Port |
2 x standard RS-232 for W-8x0x-R2
1 x 25-pin D-sub with 8-chan. TX/RX for W-8x0x-R8 |
Default Function |
64-bit hardware unique serial number
Reset button
Power LEDs
Watchdog Timer
Real Time Clock |
I/O Expansion Slot |
0 |
3 |
7 |
Operating Temp. |
-25°C to +75°C |
Storage Temp. |
-30°C to +85°C |
Humidity |
5~95% |
Power Supply |
20W, Unregulated +10Vdc to +30Vdc |
Dimensions (LxHxD)(mm) |
114x110x90 |
229x110x90 |
354x110x90 |
|
|
| |
|
|
|
|
|
|
