W-8xx6 Series
WinCon-8000 Standard Controller + InduSoft + ISaGRAF |
 |
ICP DAS Wincon-8036/8336/8746/8046/8336/8746 are Windows CE based Programmable Automation Controller. It features with the powerful InduSoft Web Studio and IsaGRAF. InduSoft Web Studio is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interfaces (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. And ISaGRAF is a PLC-like software and supports all five IEC61131-3 languages, Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC), and Instruction List (IL) plus Flow Char (FC). Additionally, for the ultimate in power and flexibility, ISaGRAF supports off-line simulation, on-line debugging, monitoring and control.

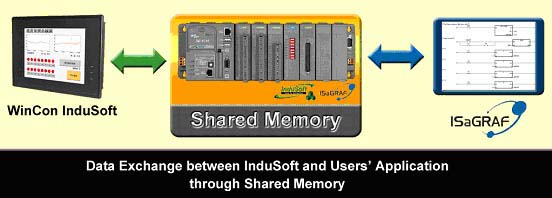

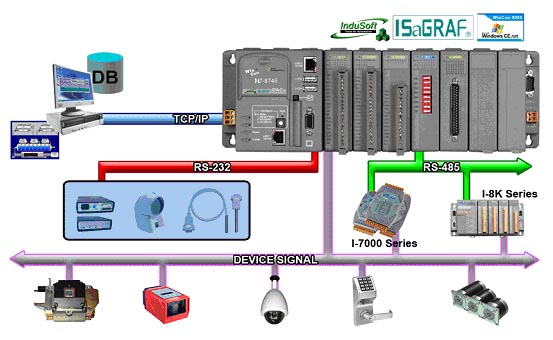

Now we have integrated the InduSoft and ISaGRAF into the WinCE embedded controller – WinCon-8000 which is a leading edge embedded platform of ICP DAS with an Intel Strong ARM CPU running with Windows CE.NET and supports SCADA technology and process control. The W-8xx6 Series can play as an intelligent flexible standalone controller for users. In addition, W-8xx6 InduSoft embedded controller also supports popular and flexible programming software – Microsoft EVC++ 4.0 and VS.NET 2003 (VB.NET & C#.NET).
|
|
|
| |
|
|
| |
|
|
|
|
|
| |

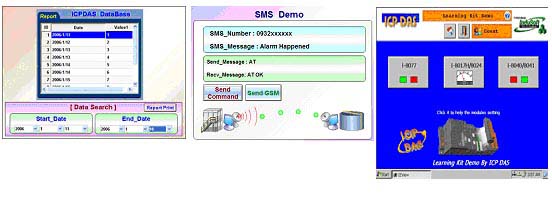

InduSoft Feature
|
|
|
- Provide an advanced math library has more than 100 standard functions
- Programming is via flexible and easy-to-use scripting language
- Provide multi-level security for applications, including the Internet and Intranet
- FULL-FEATURED Web Thin Client solution (visualization and commands, security system, On-line/History alarms, On-line/History trend, ActiveX support, translation, etc.)
- Automatic e-mail support (SMTP)
- TCP/IP Client and Server
- ActiveX container (Windows NT/2000/XP and Windows CE/CE.NET)
- Intuitive script language (does not require programming skills)
- Alarms and trends archiving
- On-line visualization of alarms and trends
- Recipes (XML and simple text)
- Reports (RTF and simple text)
- Scheduler module (events)
|
| More information ... |
| |
 |
|
|
|
|
|
| |
ISaGRAF Feature |
|
| |
- Support all five IEC61131-3 languages, LD, ST, FBD, SFC, IL plus FC.
- Modbus RTU protocol to integrate to SCADA software and HMI.
- Modbus TCP/IP to integrate to SCADA software and HMI.
- Controller to Controller Data Exchange via Ethernet: Ebus.
- Remotely download and monitor the program via a modem.
- Modbus Master protocol to link to other devices which support Modbus RTU &TCP/IP protocol.
- All I-7000 & I-87K series I/O modules can be integrated as remote I/O modules.
- Spotlight- A Simple HMI included in ISaGRAF to make application more friendly.
- Auto-scan I/O : Automatically scan I/O boards & declare I/O variables.
- File access: Read/Write files inside the Compact Flash memory by using ISaGRAF language.
- Array access: Read/Write boolean, integer, message (string) array by using ISaGRAF language
- EzHMI: Easy HMI to build HMI items & pages (Will be available).
- SMS: When integrating with a GSM Modem, Short Message Service is available.
- Motion: Motion control is available when I-8091 boards integrated.
- Web HMI: Monitoring and control the local or remote controller via the Internet Explorer running
on your PC
|
| More information ... |
| |
 |
|
|
| |
|
|
| |
W-8xx6 hardware specifications |
|
| |
|
|
| |
|
|
| |
Order Information: |
|
| |
| W-8036-G |
0-Slot Wincon ISaGRAF SoftLogic PAC (W-8037 doesn't support S-256/512) |
| W-8336-G |
3-Slot Wincon ISaGRAF SoftLogic PAC |
| W-8736-G |
7-Slot Wincon ISaGRAF SoftLogic PAC |
| W-8046-G |
0-Slot Wincon ISaGRAF Dual-Lan SoftLogic PAC (W-8047 doesn't support S-256/512) |
| W-8346-G |
3-Slot Wincon ISaGRAF Dual-Lan SoftLogic PAC |
| W-8746-G |
7-Slot Wincon ISaGRAF Dual-Lan SoftLogic PAC |
|
|
| |
|
|
| |
Options: |
|
| |
| InduSoft-NT1500D |
Local Interface development version for Windows NT/2000/XP
(1500Tag, 3 drivers) |
| InduSoft-CE1500D |
Local Interface development version for Windows CE(CE View)
(1500 Tags, 3 drivers) |
| InduSoft-NT300D |
Launcht version for Windows NT/2000/XP(300Tag, 3 drivers) |
| InduSoft-CE300D |
Launch version for Windows CE (300 Tags, 3 drivers) |
|
|
| |
|
|
| |
| ISaGRAF-256-E |
ISaGRAF Workbench Software, Up to 256 I/O Tags + one ISaGRAF Book-E |
| ISaGRAF-256-C |
ISaGRAF Workbench Software, Up to 256 I/O Tags+ one ISaGRAF Book-C |
| ISaGRAF-256 |
ISaGRAF Workbench Software, Up to 256 I/O Tags |
| ISaGRAF Book-E |
ISaGRAF Application Book (English) |
| ISaGRAF Book-C |
ISaGRAF Application Book (Chinese) |
|
|
| |
|
|
| |
|
|
|
|
|
|
