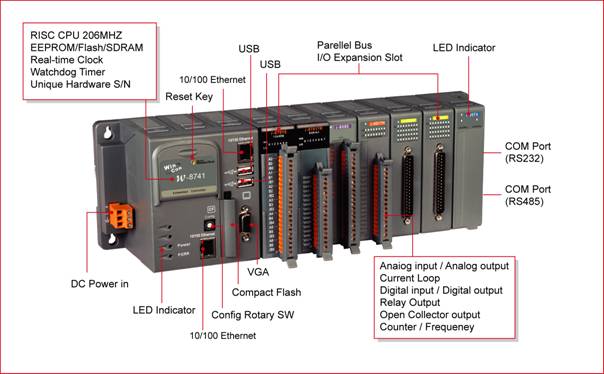

Inheriting almost all hardware features from W-8X3X, W-8X4X has the same user interface and OS  features. The only difference between W-8X4X and W-8X3X is that W-8X4X adopts 2 USB ports and two 10/100M Ethernet ports instead of 2 PS2 jacks. In the left side connect the standard computer interface like 15 pin VGA port monitor (can support the touch screen as HMI device), two USB 1.1 ports, and two Ethernet ports (10/100Base-T). In the middle and right-side area, you can plug in the ICPDAS’s I-8K and I-87K series I/O modules. The W-874X can plug in 7(max.) local I/O modules and W-834X for 3(max.) local I/O modules. There is no I/O slot for W-804X, so it can’t plug in any local I/O modules. On the under lift side, The COM2 is a standard 5 wire RS232 com port. You can connect the standard RS232 device (modem …). The COM3 is standard RS485 port. You can connect to the RS485 devices like ICPDAS’s products I-7K series I/O modules and I-87KX expansion unit.

compatible with Intel Strong ARM CPU, 206MHz

Windows CE.NET 4.1

Standard WinConSDK for W-8041/8341/8741
ISaGRAF Software for W-8047/8347/8747
InduSoft Software for W-8049/8349/8749

64M bytes

32M bytes

16K bytes

1 x Compact Flash type II insert with ejector

USB1.1 x 2
VGA port x 1

10/100 BaseT x2

9-pin D-Sub (RS-232)

2-wire Terminal Block (RS-485)

N/A

64-bit hardware unique serial number
Reset button
Power LEDs
Watchdog Timer
Real Time Clock

0

3

7

-25°C to +55°C

-30°C to +85°C

5~95%

20W, Unregulated +10Vdc to +30Vdc

114x110x90

229x110x90

354x110x90
