VCEP Overview |
|
| |
|
|
|
|
|
| |
Introduction |
|
|
ICPDAS VCEP is designed for managing your WinCon-8000 anywhere. No matter where you are, ICPDAS VCEP provides a convenient environment on the Desktop PC and lets you control your WinCon-8000 remotely. ICPDAS VCEP is composed of two main components: The ．Server・ which runs on WinCon-8000 and the ．Client・ which runs on a Desktop PC. Once a connection is established between the client and server (initiated by the client), the client will periodically send requests for screen updates and send mouse/key click information to the server to simulate. Each video frame is inter-compressed against the previous frame and then intra-compressed with a modified LZW scheme to minimize the amount of data transmitted from server to client. |
|
| |
|
|
| |
Main Feature |
|
| |

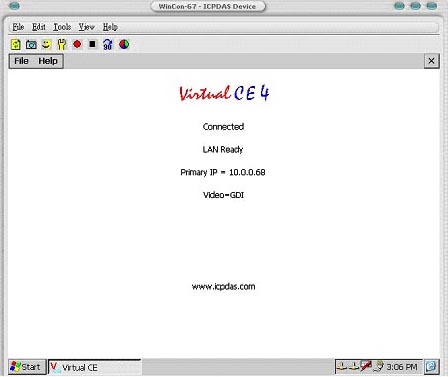

1.Displays a ：virtual； device which passes mouse and keyboard activity to the remove device |
|
| |
|
|
| |
|
|
| |
2.Supports up to 32 simultaneous connections in any combination |
|
| |
|
|
| |
3.Rotate the display to any angle in 90 degree increments. |
|
| |
|
|
| |

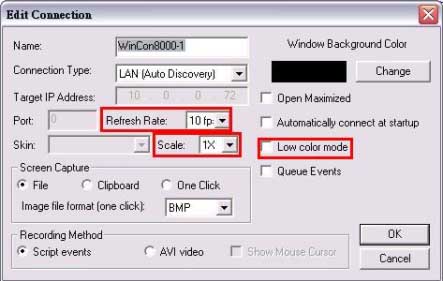

4.Variable frame rate (1-18fps). |
|
| |
|
|
| |
5.Scale image 1-3X. |
|
| |
|
|
| |
6.Supports low color mode displays. |
|
| |
 |
|
| |
|
|
| |
7.Capture screen to Clipboard/File or One-click shots to BMP files with auto-naming. |
|
| |
|
|
| |

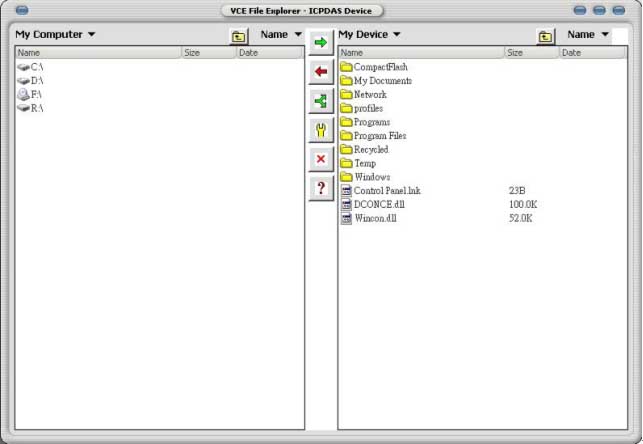

8.File explorer allows files to be sent or received from the remote device. |
|
| |
 |
|
| |
|
|
| |
9.Auto-discovery of the WinCon on a LAN. |
|
| |
|
|
| |
10.Reset WinCon remotely. |
|
| |
|
|
| |
11.Password protection. |
|
| |
|
|
| |

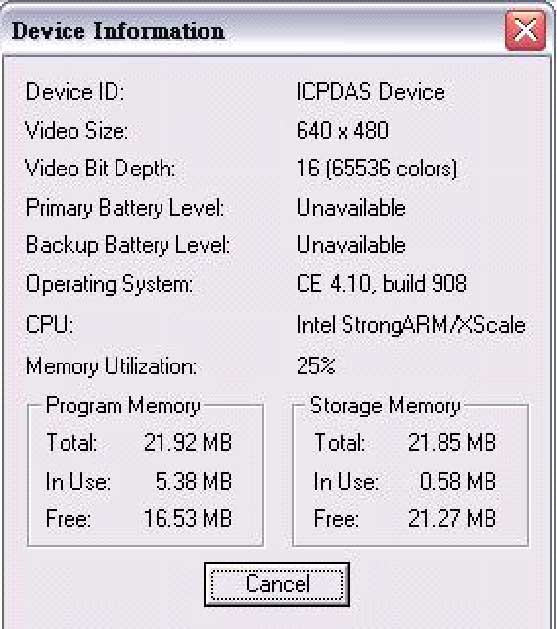

12.Support device and process information. |
|
| |
 |
|
| |
|
|
| |

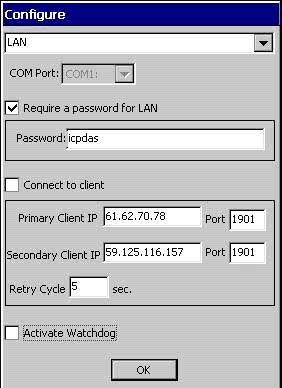

1 3 . Actively connect from Server to Client. |
|
| |
|
|
| |
14. Watchdog auditing. |
|
| |
 |
|
| |
|
|
| |

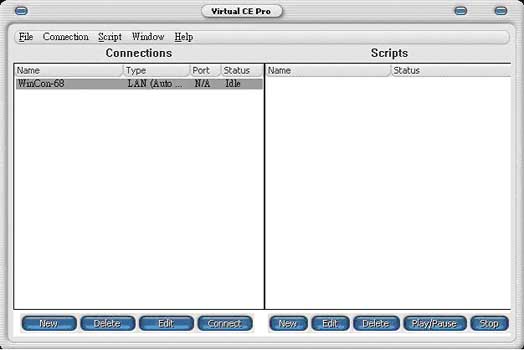

15. Record/Play script events |
|
| |
 |
|
| |
|
|
| |
Scenario |
|
| |

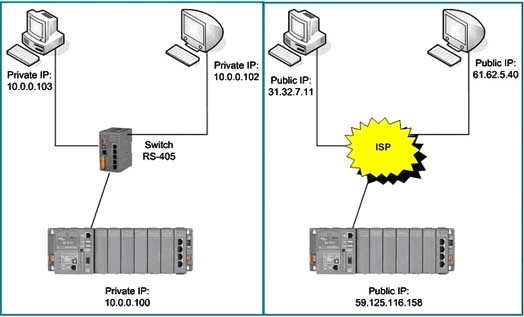

1. General Remote Control from Client. |
|
| |
 |
|
| |
|
|
| |

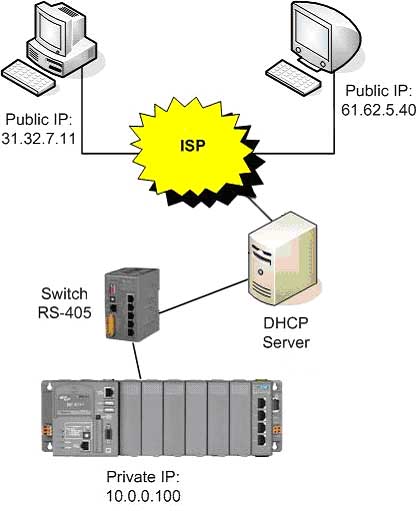

2. Active Connection from Server. |
|
| |
 |
|
| |
|
|
|
|
| |
Ordering information |
|
|
|
| |
| VCEP 4.2 |
VCEP 4.2 Register Package |
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
