The WinCon-8000 is a leading edge embedded platform of ICP DAS with an Intel Strong ARM CPU running a Windows CE .NET operating system. When compared to the standard Window O.S., Windows CE.NET has some advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using WindowsƒnCE .NET in the WinCon-8000 gives it the ability to run PC-based Control software such as Visual Basic .NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC ¡Ketc. The WinCon-8000 supports PLC-style technology of data acquisition and remote control. Its combined advantage gives you all of the best features of both traditional PLCs and Windows capable PCs. Furthermore, WinCon-8000 is a cost-effective choice as a replacement for a regular PC or PLC based control system.
According to user's application, you can choice the WinCon-8000 with display or without display to be part of a large and powerful control system with a price that meets a tiny budget.

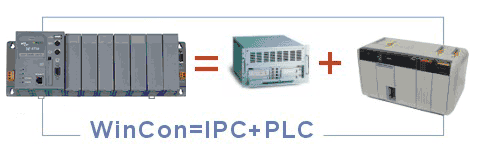

    The Wincon-8000 gives you all of the best features of both traditional PLCs and Windows capable PCs. The WinCon-8000 includes a VGA port allowing the user to choose a regular LCD monitor for display of HMI application, USB port allowing the user to connect with USB device for storage or touch monitor, Compact Flash memory for storage of program and data, as well as the PS/2 for data input.

Support IPC Capabilities

Intel Strong ARM CPU, clock frequency: 206Mhz

Windows CE.NET built-in

Supports VGA , Ethernet, USB, Keyboard, Mouse, Compact Flash

OPC server supported

Built-in and expansion serial ports

Built-in serial RS-232/485 ports that support various serial devices such as modem, GPRS modem or      touch screen.

With the I-8000 communication modules, a WinCon-8000 can handle up to 12 serial ports.

Built-in Ethernet connectivity

A 10baseT Ethernet port to support the TCP/IP, Web-Server & FTP Server.

Industrial Modbus/TCP, UDP Protocol Compliant

Real-time transmission as multicast server via iPush Embedded

Various access target such as Excel, mobile phone, PDA,terminals

PLC-style and expandable I/O

Direct backplane access to I/O

Wide range of I/O modules supported--I-8000, I-87K expansion I/O modules: DI, DO, AI, AO,     Counter/Frequency, Motion control...etc.

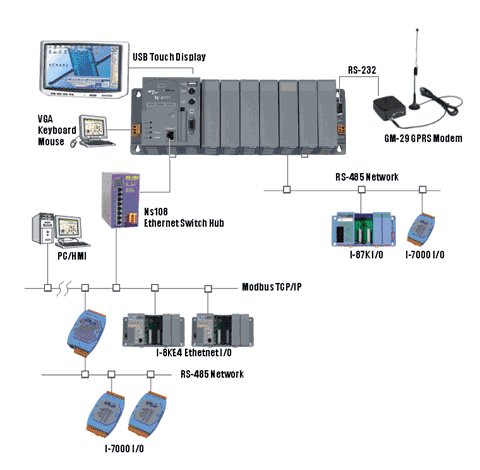

Remote I/O

If your application requires a narrow or distributed placement, the ICP DAS I-7000 Series modules are     the best solution to fit hazardous industrial environment.

Advanced programming environment

It is easy to use Microsoft Embedded Visual C++, Visual Basic .NET or Visual C# to develop your      application programs with bonus software WinCon SDK, WinCon Utility and WinConOPC Sever.

HMI/ SCADA automation technology

WinCon-8000 integrat It can play as an intelligent distributed data acquisition front end connected to a      Host machine running a standard HMI/SCADA packages.

Universal fieldbus supported

CAN bus network supported

Industrial Modbus/TCP, Modbus/RTU protocol supported
