W-8xx7 Series
(ISaGRAF WinCon)
standard Controller + ISaGRAF |
|
| ISaGRAF is a PLC-like software running on Windows 95/ 98/ NT/ 2000/ XP. It supports all five IEC61131-3 languages, Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC), and Instruction List (IL) plus Flow Char (FC). Additionally, for the ultimate in power and flexibility, ISaGRAF supports off-line simulation, on-line debugging, monitoring and control. WinCon-8000 supporting ISaGRAF to be easily integrated with many HMI software and devices such as ICP DAS's MMICON, iFix, Iconics, Wizcon, Intouch, Citect, Indusoft, Kepware's Modbus OPC server, Touch 506, 510, etc. When the ISaGRAF controller integrate with a GSM Modem, Short Message Service is supported. It can deliver message to a cell phone to report information, or receive message from a cell phone to control something.
|
|
|
|
|
|
| |
|
|
| |
Click Me for " Performance Comparison Table of ISaGRAF Controllers " |
|
| |
|
|
| |
Features |
|
| |
- All five IEC61131-3 languages, LD, ST, FBD, SFC, IL plus FC.
- Modbus RTU protocol to integrate to SCADA software and HMI.
- Modbus TCP/IP to integrate to SCADA software and HMI.
- Controller to Controller Data Exchange via Ethernet: Ebus.
- Remotely download and monitor the program via a modem.
- Modbus Master protocol to link to other devices which support Modbus
RTU &TCP/IP protocol.
- All I-7000 & I-87K series I/O modules can be integrated as remote
I/O modules.
- Spotlight- A Simple HMI included in ISaGRAF to make application more
friendly.
- Auto-scan I/O : Automatically scan I/O boards & declare I/O variables.
- File access: Read/Write files inside the Compact Flash memory by using
ISaGRAF language.
- Array access: Read/Write boolean, integer, message (string) array
by using ISaGRAF language
- EzHMI: Easy HMI to build HMI items & pages (Will be available).
- SMS: When integrating with a GSM Modem, Short Message Service is available.
- Motion: Motion control is available when I-8091 boards integrated.
- Web HMI: Monitoring and control the local or remote controller via the Internet Explorer running
on your PC
|
|
| |
|
|
| |
 |

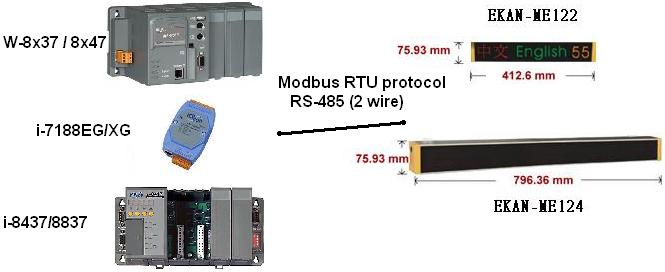

EKAN - Modview LED Display |
| |
ICP DAS ISaGRAF controllers, W-8x37/8x36/8x47/8x46, I-8xx7, I-7188EG/XG can display Message, Real, Integer, Boolean value, Local language in Bitmap format, Bitmap picture to EKAN - Modview LED display by Modbus RTU protocol via RS-485 port. |
| |
More information ... How to use |
| |
 |
|
|
| |
|

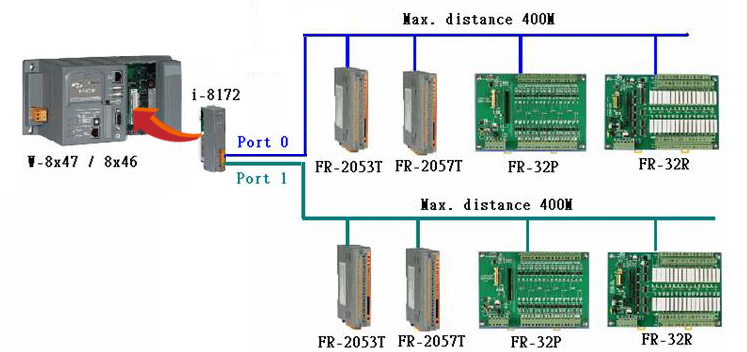

FRNET I/O |
| |
(1) Fast Scan, about 3 ms / per FRNET scan . (This depends on your ISaGRAF PLC program's scan time, if
ISaGRAF PLC scan time is 8ms, then the scan time for all will be 8 ms, not 3 ms.) |
| |
(2) The max. I/O channel number can be 7 x 256 = 1792 Ch. of Digital Input plus 1792 Ch. of Digital Output (if all
7 slots are plug-in I-8172)
|
| |
More information ... |
| |
 |
|
|
| |
|

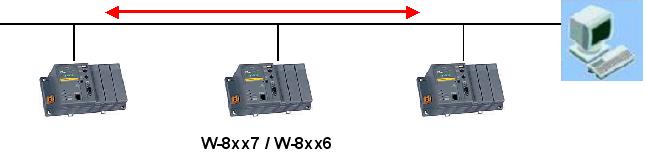

Wincon automatically report data to PC / InduSoft or PC / HMI |
| |
Wincon-8xx7 / 8xx6 supports UDP Client & TCP/IP Client that can send message to PC/HMI or PC/InduSoft which supports UDP sever or TCP/IP Server via Ethernet communication. |
| |
More information ... |
| |
 |
|
|
| |
|
Fast Ethernet I/O |
| |
Wincon-8347 / 8747 / 8346 / 8746 now supports Ethernet I/O, IO scan time is about 30 ~ 40 ms for 3000 to 6000 I/O channels. |
| |
More information ... |
| |
 |
|
|
| |
|

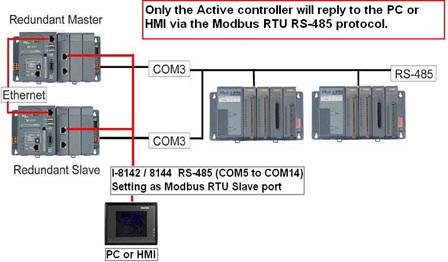

Controller Redundancy |
| |
Two Wincon-8047/8347/8747 or Wincon-8046/8346/8746 can set up as one "Redundancy Controller" system. If one is damaged, the other one still works. |
| |
More information 1 ...
More information 2 ... |
| |
 |
|
Ethernet Communication Security |
| |
The I-8437/8837, 7188EG & W-8037/8337/8737 controller support Modbus TCP/IP protocol in their ethernet port. For safety reason, user may add security in the Modbus TCP/IP protocol. When doing this, only PCs or devices with the permissive IP can connect in via Modbus TCP/IP. |
| |
More information ... |
|
|
| |
|
Web HMI is available now |
| |
WebHMI is a free software mechanism coming with some ICP DAS’s PAC (Programmable Automation Controller). Web HMI offers you to monitor and control the local or remote controller via the Internet Explorer running on your PC. |
| |
More information ... |
 |
| |
Download Manual, Driver & ... |
|
|
| |
|
SMS:Short Message Service |
| |
The I-8417/8817/8437/8837, I-7188EG, I-7188XG & Wincon-8037/8337/8737 controller can integrate with a GSM Modem to support SMS: Short Message Service. This allows user to request information or control something from his own cellular phone to the ISaGRAF controller. Beside, the controller can also send information and alarms to user’s cellular phone. |
| |
How to use ? |
|
|
| |
|
Motion Control |
| |
The I-8417/8817/8437/8837 can integrate with one I-8091(2-axes) or two I-8091(4-axes) motion board to do motion control. The Wincon-8337/8737 can integrate with one I-8091(2-axes) or up to four I-8091(8-axes) motion board to do motion control. Only two axes can be X-Y dependent, other axes should be independent or all axes are independent. |
| |
Please refer to motion.pdf. |
|
|
| |
ISaGRAF WinCon
hardware specifications |
|
| |
|
|
| |
|
|
| |
Applications |
|
| |
|
|
| |
|
|
| |
Ordering information |
|
| |
| W-GUP-01 |
Upgrade Wincon-8x31 to become Wincon-8x37 to support ISaGRAF |
| W-8037-G |
0-Slot Wincon ISaGRAF SoftLogic PAC (W-8037 doesn't support S-256/512) |
| W-8337-G |
3-Slot Wincon ISaGRAF SoftLogic PAC |
| W-8737-G |
7-Slot Wincon ISaGRAF SoftLogic PAC |
| W-8047-G |
0-Slot Wincon ISaGRAF Dual-Lan SoftLogic PAC (W-8047 doesn't support S-256/512) |
| W-8347-G |
3-Slot Wincon ISaGRAF Dual-Lan SoftLogic PAC |
| W-8747-G |
7-Slot Wincon ISaGRAF Dual-Lan SoftLogic PAC |
|
|
| |
|
|
| |
ISaGRAF Embedded Controller Learning
Kit |
|
| |
WINKIT-03
Using ISaGRAF programming tools to control Wincon-8000.
WinCon-8000 series products provide blue or gray cases to choose.
|
| |
|
|
| |
|
|
| |
Including: |
|
| |
| ISaGRAF-256-E |
ISaGRAF Workbench Software, Up to 256 I/O Tags + one ISaGRAF Book-E |
| W-8737 |
7-slot ISaGRAF Embedded Controller |
| I-8017h |
14-bit 100K sampling rate 8-channel analog input module |
| I-8024 |
4-channel 14-bit analog output module |
| I-8040 |
32-channels digital input module |
| I-8041 |
32-channels digital output module |
| I-8077 |
16-channel Digital I/O Simulator Module |
| DN-37 |
I/O Connector Block with DIN-Rail Mounting and 37-Pin D-Sub Connector |
| DP-665 |
24V/1.7A 5V/0.5A Power Supply |
|
|
| |
|
|
| |
Options: |
|
| |
| ISaGRAF-256-E |
ISaGRAF Workbench Software, Up to 256 I/O Tags + one ISaGRAF Book-E |
| ISaGRAF-256-C |
ISaGRAF Workbench Software, Up to 256 I/O Tags+ one ISaGRAF Book-C |
| ISaGRAF-256 |
ISaGRAF Workbench Software, Up to 256 I/O Tags |
| ISaGRAF Book-E |
ISaGRAF Application Book (English) |
| ISaGRAF Book-C |
ISaGRAF Application Book (Chinese) |
|
|
| |
|
|
| |
| GA700YY-UOM/USB |
7" TFT LCD Monitor w/ VGA & Touch Screen |
| NS-108 |
8-Port Industrial Ethernet Switch |
| SST-2450 |
RF Modem(2.4GHz),with RS-232/RS-485 |
| GM29 |
900/1800 GSM/GPRS External Modem |
|
|
| |
|
|
| |
|
|
|
|
