W-8xx1 Series
Standard WinCon-8000 Compact Embedded Controller |
| Windows CE.NET
4.1 operating system is resident in the flash memory of the WinCon-8000 series CPU module. User's programs can be saved in external storage areas, such as Compact Flash Card and USB drive or downloaded to RAM at run time through the LAN or USB .
ICPDAS's SDK to control the I-8000,
I-7000 series I/O modules is provided for easy development of user applications using Visual Basic .NET, Visual C# or Embedded Visual C++. The included WinCon Utility is a convenient tool which enables system configuration, monitoring and software update. |
|
|
| |
|
|
| |
Features |
|
| |
 |
ATL, ActiveX Component and MFC for Windows CE |
|
Embedded Visual C++ |
|
Visual Basic .NET and Visual C# |
|
WinCon-8000 SDK to control I-8000 I/O modules |
|
OPC server and Modbus/TCP Protocol |
|
RS-232/485 Device Connection |
|
Http server, FTP server and Web-based control application development |
|
SQL Server CE and connectivity to ERP |
|
WinCon-8000 system configuration utility |
|
Remote management utility |
|
Integrated SCADA/HMI S/W or User's AP via Modbus/TCP Driver, ActiveX or Modbus/TCP OPC Server |
|
|
| |
|
|
| |
Software development support |
|
| |
|
WinCon SDK |
| |
ICP DAS provides two DLL files, which are WinconSDK_DLL and Wincon_DLL , for I-8000 series modules to be used in the Wincon-8000 Embedded Controller. The WinconSDK_DLL has essential DLL functions designed for I-8000 series modules for the Microsoft Windows CE.Net platform. It can be applied and called by eMbedded Visual C++ , 2003 Visual studio C#.NET and VB.NET on WinCE 4.1.Net and newer platforms. Users can easily develop WinCE.NET applications for the WinCon-8000 by using this toolkit.
|
|
|
| |
|
|
| |
|

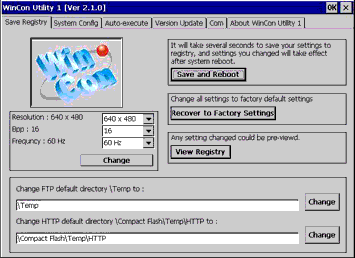

WinCon Utility |
| |
The WinCon Utility provides many tools to save/view the system information registry and setup the HTTP/FTP path and update non-volatile internal memory within Wincon-8000 embedded controller. |
| |
 |
ĦE Device name
ĦE System Configuration
ĦE Display resolution setup
ĦE FTP/HTTP setup
ĦE Autoexec
ĦE OS image upgrade
ĦE Touch-screen setup
ĦE Save registry/Return to factory registry |
|
| |
....See more about WinCon Utility |
|
|
| |
|
|
| |
|
Quicker- Integrated Tool for Modbus - OPC- ScanKernel |
| |
Quicker is an integrated omnibus software package which combines OPC, Modbus TCP, Modbus RTU services, and Scankernel together. The particular design, ?span class="style1">Rule Script ? lets user can quickly establish a DCS control system with logic control, multi-communication services. |
| |
....See more about Quicker |
|
|
| |
|
|
| |
|
iPushR Embedded |
| |
The iPush R Embedded integrates WinCon-8000 SDK to control I-8000, I-87K and I-7000 I/O modules easily. The iPushR Embedded introduces a messaging platform over TCP/IP, which can locally collect and transmit data to remote applications in real time. The data collected from the I/O modules is actively pushed to the subscribers or remote applications for post processing. Regarding the remote application, developers can make use of the supported SDK by iPushR Embedded, including Windows DLL, ActiveX Control and Java Class, to build the applications of bi-directional monitoring and control. |
| |
...See more about iPush Embedded |
|
|
| |
|
|
| |
|
VxComm technology |
| |
With additional I7188/I8000 and ICPDAS's VxComm technology , you can extend more RS-232/422/485 COM ports of WinCon |
| |
...See more about VxComm |
|
|
| |
|
|
| |
|
VCEP 4.0 |
| |
ICPDAS VCEP 4.0 is designed to allow Desktop PC users to remotely manage a broad range of WinCon from a single management interface. ICPDAS VCEP 4.0 provides secure, remote access to WinCon and supports network connections over a local area network(LAN), wide area network(WAN), Internet, and direct cable connections using a serial or parallel portĦK |
| |
...See more about VCEP 4.0 |
|
|
| |
|
|
| |
Standard WinCon-8000 hardware specifications |
|
| |
|
|
| |
|
|
| |
Application |
|
| |
|
|
| |
|
|
| |
Ordering information |
|
| |

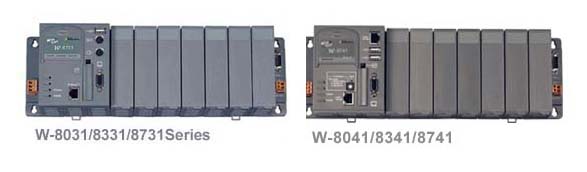

W-8031-G
W-8331-G
W-8731-G |
Standard Wincon Series compact embedded controllers run Windows CE.NET operating system with several software development tools such as WinConSDK, WinCon OPC, WinCon Utility, ipush Embedded and Modbus/TCP drivers. |
W-8041-G
W-8341-G
W-8741-G |
2-D (Dual USB, Dual LAN) versions of WinCon, W-8x41 series support all OS features and include all software development tool as W-8x31. |
|
|
| |
|
|
| |
WinCon-8000 SDK Learning Kit |
|
| |
WINKIT-02
Programming Windows CE.NET applications to control I-8000 series digital and analog I/O modules.
WinCon-8000 series products provide blue or gray cases to choose.
|
|  |
|
|
| |
|
|
| |
Including: |
|
| |
| W-8731-G |
7-slot Standard WinCE Embedded Controller |
| I-8017h |
14-bit 100K sampling rate 8-channel analog input module |
| I-8024 |
4-channel 14-bit analog output module |
| I-8040 |
32-channels digital input module |
| I-8041 |
32-channels digital output module |
| I-8077 |
16-channel Digital I/O Simulator Module |
| DN-37 |
I/O Connector Block with DIN-Rail Mounting and 37-Pin D-Sub Connector |
| DP-665 |
24V/1.7A 5V/0.5A Power Supply |
|
|
| |
|
|
| |
Options: |
|
| |
| GA700YY-UOM/USB |
7" TFT LCD Monitor w/ VGA & Touch Screen |
| NS-108 |
8-Port Industrial Ethernet Switch |
| SST-2450 |
RF Modem(2.4GHz),with RS-232/RS-485 |
| GM29 |
900/1800 GSM/GPRS External Modem |
|
|
| |
|
|
| |
|
|
|
|
