    PISO-CPM100-D / PISO-CPM100-T
    PISO-CPM100U-D / PISO-CPM100U-T
    1 Port Intelligent CANopen Master Universal PCI Board



    PISO-CPM100
    PISO-CPM100U
    PISO-CPM100
    PISO-CPM100U

    PISO-CPM100-D
    PISO-CPM100-T


    PISO-CPM100U-D
    PISO-CPM100U-T


    The PISO-CPM100 gives a very powerful and economic solution of an active CANopen master device with one CAN channel. It uses the NXP SJA1000T and 82C250 to be the CAN controller and transceiver, which provide bus arbitration, error detection with auto correction and re-transmission function. The 16-bit on-board microcontroller with real-time O.S., MiniOS7, allows many features, such as real-time message transmission and reception, filtering, preprocessing, and storage of CAN messages. Under the effect of the powerful microcontroller, this card can be made for one CAN controller manager without losing data, even in systems with a high PCI bus load. Therefore, the CANopen critical process can be implemented


    directly by CANopen firmware in the PISO-CPM100. In addition, users can develop their CANopen application by using the CANopen library on the host computer. When the PISO-CPM100 is active, the data exchange between users¡¦ application and CANopen firmware is performed via the memory mapping method of the PISO-CPM100.






    Industrial MachineryBuilding AutomationMedicalMaritimeRestaurant Appliances
    Laboratory Equipment & Research







    • One CANopen master communication port
    • Standard CANopen specification CiA 301 v4.02
    • Support node id 1 ~ 127
    • Programmable bauds¡G10 K, 20 K, 50 K, 125 K, 250 K, 500 K, 800 K, and 1M bps
    • Scan function for scanning all nodes on the same CANopen network
    • Provide master listen mode for monitoring without bothering the CANopen network
    • Support both Node Guarding Protocol and Heartbeat Consumer Protocol
    • Provide event trigger function for EMCY event, Node Guarding event and Heartbeat event
    • Provide Event-triggered, remote-requested, cyclic and acyclic SYNC of PDO mode
    • The PDO communication supports single byte output so that users can just modify the value of one byte without changing the others
    • Allow dynamic PDO mapping
    • Allow to get several PDO data simultaneously
    • The SDO communication supports segment protocol
    • Programmable master node ID for the CANopen slave function
    • Support EDS file
    • Allow the automatic adding the node while it boots up
    • Support multi-master architecture
    • CPMUtility utility tool for testing users' CANopen network
    • Provide VC++,VB.Net, and C# (2005) demos and function libraries







    • Development Toolkit for Windows NT4.0
    • Development Toolkit for Windows 98/ME
    • Development Toolkit for Windows 2000/XP














    The software utility can easily to access the I/O data of all the slave devices. The users can monitor the input data of the specific slave device and change the output data to the remote slave device with this utility
    • Auto-scan all the CANopen master devices that the CPMUtility has supported
    • Auto-scan all the CANopen slave devices on the CANopen network
    • Support EDS file
    • Dynamic PDO object setting easily
    • Guarding Event and Heartbeat Event detection
    • EMCY message receiving
    • Maximum 5 SYNC message producers per CANopen master
    • Support PISO-CPM100(U), I-8123W, I-7565-CPM for version 2.00 later
    • Support OS: WinCE5.0, and Win2K/XP/Vista/7 with 32-bit system








    Item Description

    InduSoft Driver
    The IndoSoft is one of the famous and high performance SCADA. Nowaday, it supports the CAN, CANopen and DeviceNet driver for all the coresponding converter or master series products. [more...]

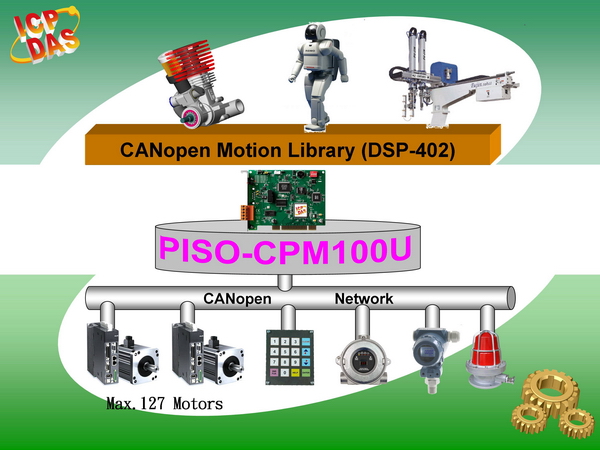

    The PISO-CPM100U provides the motion control library now. This library follows the CANopen standard CiA 402. It is available on the Windows 2000/XP/Vista or Win 7(32-bit version) operation system. The CiA 402 is one kind of the standard CANopen application profiles, and specially designed for motion control systems. In addition to making the management of the CANopen motors easy, this communication protocol can reduce the wire connection between the controller and motors, and provide rapid troubleshooting functions. With the PISO-CPM100U and CANopen Motion Library, you can do various motion control functions, such as position control, velocity control, toque control, and synchronous action without having the background knowledge of the complex and abstruse CANopen protocol. The CANopen Motion Library is able to link many CANopen motors so that the multi-axis motion control by one host becomes reachable. While controlling motors, you can also use the APIs of the PISO-CPM100U library to access CANopen remote I/O modules which follows the CiA 401 at the same time. Therefore, building a motion control application becomes more easy and convenient.

    Feature:

    • Compliant with CiA 402 v1.1
    • Reduce 50% wires connection cost
    • Physical layer with fault tolerance and anti-noise
    • Support max. 127 motors in one network
    • Absolute and relative position control
    • Velocity control
    • Torque control
    • JOG control
    • Support max. 127 motors synchronous action
    • Various Homing control
    • Support torque limitation with CANopen command
    • Support Win 2000/XP/Vista or Win 7(32-bit version)

    Download¡L¡L









    Hardware Compare

    Performance Test with PISO-CAN 200/400-D/T
    Product Name
    PISO-CPM100
    PISO-CAN-200/400
    with CANopen Library
    Protocol decoder
    186 CPU
    PC CPU
    Time stamp
    186 Timer (0.1 ms)
    PC Timer (about 1 ms)
    CPU Loading
    Light
    Heavy
    Performance
    High
    Normal
    Application
    Various and complex CANopen application
    General purpose CANopen application

    Test environment¡G

    CPU¡GIntel(R) Pentium(R) 4 CPU 2.40 GHz
    OS¡GMicrosoft Windows XP Professional Version 2002 Service Pack 2
    RAM¡G512 MB
    CAN Baudrate¡G1000 bps

    Test result¡G

    Function
    PISO-CPM100 (ms)
    PISO-CAN200/400 with CANopen library (ms)
    Add Node
    Average 45.502
    1265 ~ 1280
    Read 4 bytes data by SDO
    Average 2.487
    19.37 ~ 19.47
    Read 9 bytes data by SDO
    Average 2.971
    58.21 ~ 58.61
    Write 4 bytes data by SDO
    Average 2.479
    18.81 ~ 19.69
    Read 8 bytes data by PDO
    Average 2.355
    16.49 ~ 16.57
    Write 8 bytes data by PDO
    Average 1.738
    0.13
    Note 1¡G
    The data of above list is average of 1000 message.
    Node 2¡G
    If user use the guarding function with PISO-CAN200/400 with CANopen library, the guard error event may be occured when the slave is more and the guarding time is shorter. This is because of that the accuracy of timer of windows is not enough.







    Model Name
    PISO-CPM100-D
    PISO-CPM100-T
    PISO-CPM100U-D
    PISO-CPM100U-T
    Hardware
    CPU
    80186, 80 MHz or compatible
    SRAM/Flash/EEPROM
    512 KB / 512 KB / 2 KB
    Bus Interface
    Type
    PCI bus, 5 V, 33 MHz, 32-bit, plug and play.
    Universal PCI supports both 5 V and 3.3 V PCI bus
    Board No.
    By DIP switch
    CAN Interface
    Controller
    NXP SJA1000T with 16 MHz clock
    NXP SJA1000T with 16 MHz clock
    Microprocessor inside with 80186 80 MHz
    Transceiver
    NXP 82C250
    Channel number
    1
    Connector
    9-pin male D-Sub (CAN_L, CAN_SHLD, CAN_H, N/A for others)
    5-pin screwed terminal block (CAN_L, CAN_SHLD, CAN_H, N/A for others)
    9-pin male D-Sub (CAN_L, CAN_SHLD, CAN_H, N/A for others)
    5-pin screwed terminal block (CAN_L, CAN_SHLD, CAN_H, N/A for others)
    Baud Rate (bps)
    10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M
    Transmission Distance (m)
    Depend on baud rate (for example, max. 1000 m at 50 kbps )
    Isolation
    1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
    3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
    Terminator Resistor
    Jumper for 120 £[ terminator resistor
    Specification
    ISO-11898-2, CAN 2.0A and CAN 2.0B
    Protocol
    CANopen CiA 301 v4.02
    LED
    Round LED
    Green LED, Red LED
    Software
    Driver
    Windows 98/ME/NT/2K/XP
    Windows 2K/XP
    Library
    VB 6.0, VC++ 6.0, BCB 6.0
    Power
    Power supply
    Unregulated +10 ~ +30 VDC
    -
    Power Consumption
    300 mA @ 5 V
    Mechanism
    Dimensions
    127mm x 22mm x 121mm (W x L x H)
    138 mm x 22mm x 127 mm (W x L x H)
    Environment
    Operating Temp.
    0 ~ 60 ¢J
    Storage Temp.
    -20 ~ 80 ¢J
    Humidity
    0 ~ 95% RH, non-condensing







    PISO-CPM100-D

    CANopen firmware built-in and one standalone intelligence CAN communication port with D-sub 9-pin connector

    PISO-CPM100-T
    CANopen firmware built-in and One standalone intelligence CAN communication port with 5-pin screw terminal connector
    PISO-CPM100U-D
    1 Port Intelligent CANopen Master Universal PCI Board with D-Sub 9-pin male connector
    PISO-CPM100U-T
    1 Port Intelligent CANopen Master Universal PCI Board with 5-pin screw terminal connector
