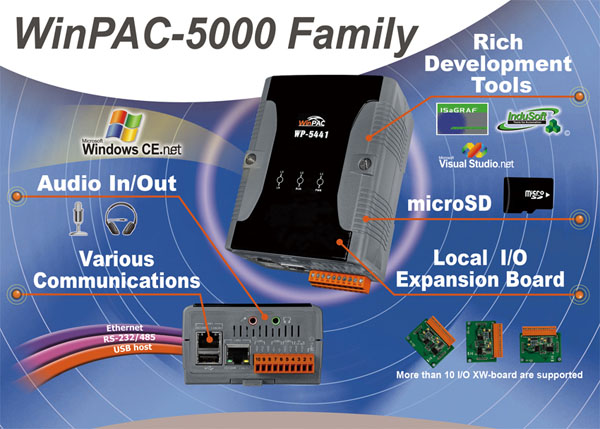

The ICP DAS WinPAC-5000 Series is the new generation PAC (Programmable Automation Controller). It is equipped a PXA270 CPU (520 MHz) running a Windows CE.NET 5.0 operating system, various connectivity (VGA, USB, Ethernet, RS-232/485) and I/O expansion bus.

The WinPAC-5000 series has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE.NET 5.0 gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, SoftPLC …etc. It give users all of the best features of both traditional PLCs and Windows capable PCs.

For hardware expansion, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O,A/ D, D/A, Timer/Counter, UART, and other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 10 boards available for WinPAC-5000 series, users can choose one of them to expand hardware features.



  • Supports PC based software: eVC and VS .NET 2005/2008
  • Web server, FTP server, Telnet server.
  • ISaGRAF version for IEC 61131-3 programming.
  • InduSoft version for SCADA solution


2. Local I/O and Communication Expansion Board
WinPAC-5000 series equip an I/O expansion bus to support one optional expansion board, called XW-board. It can be used to implement various I/O functions such as DI, DO, A/D, D/A, Timer/Counter and various communication interface, such as RS-232/422/485, CAN, FRnet, etc.


3. Remote I/O Module and Expansion Unit
With the built-in RS-485 and Ethernet port, the 5000 series can connect RS-485/Ethernet remote I/O units (RU-87Pn/ET-87Pn) or modules (I-7000/M-7000/ET-7000). With an XW-board, the 5000 series can have more communication ports or different interface to connect to other type of devices, for example: CANOpen devices, DeviceNet devices, or FRnet I/O modules.
   4. Multi-Communication Interface
There are serval of communication interfaces to expand I/O and connect to external devices:
1. Ethernet
2. RS-232/485
3. USB host
4. CAN bus




5. Various Memory Expansions
WinPAC-5000 provides various memory storage options, such as EEPROM and microSD. Customers can choose the memory based on their characteristics.

  • 16 KB EEPROM: to store not frequently changed parameters.
  • microSD/microSDHC: to implement portable data logging applications.

6. Unique 64-bit Hardware Serial Number to Protect Your Program
A unique 64-bit serial number is assigned to each hardware device to protect your software against piracy.


7. Small and Easy Installation
WinPAC-5000 series have a palm-size shape (91 mm x 132 mm x 52 mm) to be installed in a narrow space with DIN-Rail.


8. Plastic and Metal Casing
The default case is plastic material, customers can choose metal case if they want


9. Highly Reliable Under Harsh Environmen
Our μPACs operate in a wide range of temperature and humidity.

  • Operating Temperature: -25 ~ +75 °C
  • Storage Temperature: -30 ~ +80 °C
  • Humidity 10 ~ 90% RH (non-condensing)
