Comparison Table

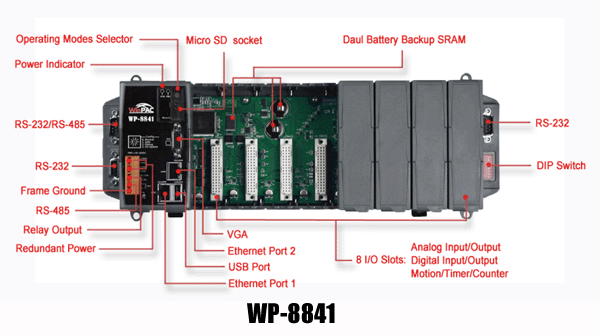

WP-8x4x
WP-8x4x is the second generation of PAC. It is equipped with variant connectivities (VGA, USB, Ethernet, RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules). Comparing to the first generation WinCon PAC, it not only improves the CPU performance (from 206 MHz to 520 MHz), but also add many reliablity features.

W-8x3x (Phased Out Since 2008)
W-8x3x is a PAC equipped with PC interface and 3/7 slots for I/O modules. Its PC-like interface includes: PS/2(keyboard and mouse), VGA port , USB port and RS-232/RS-485 communication ports. The powerful backplane(3/7 slots) can adopts versatile ICPDAS's high performance parallel (I-8K I/O modules) and serial-type I/O modules (I-87K I/O modules).

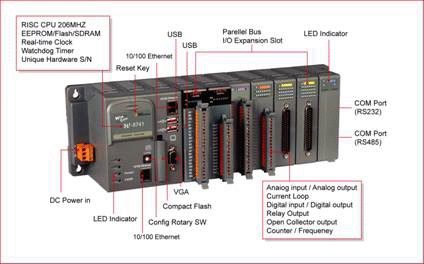

W-8x4x
WinCon-8x4x series embedded controllers are derived from existing WinCon-8x3x series. This evolution includes dual USB host ports to support more connectivity to USB I/O devices, dual Ethernet 10/100M ports to provide higher network performance, network security, and redundancy capability, and a rotate switch to configure your system and applications.

  WP-8x4x W-8x3x W-8x4x
OS Windows CE 5.0 Windows CE 4.1 Windows CE 4.1
CPU 520 MHz 206 MHz 206 MHz
SDRAM 128 MB 64 MB 64 MB
Flash 96 MB
(64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry)
32MB (for OS image only) 32MB (for OS image only)
EEPROM 16 KB 16 KB 16 KB
Expansion Memory Slot Micro SD slot (Default=1 GB) Compact Flash type II (Default=1GB) Compact Flash type II (Default=1GB)
Interface USB 1.1 x 1
VGA port x 1 (800 x 600)
USB1.1 x 1
PS/2 port x 2 (Keyboard and Mouse)
VGA port x 1 (320 x 240 ~ 1024 x 768)
USB1.1 x 2
VGA port x 1 (320 x 240 ~ 1024 x 768)
Ethernet Port RJ45 x 2, 10/100 BaseTX RJ45 x 1, 10 BaseT RJ45 x 2, 10/100 BaseT
COM 0 For I-87K module in I/O slot
COM 1 RS-232 For I-87K module in I/O slot For I-87K module in I/O slot
COM 2 RS-485 RS-232 RS-232
COM 3 RS-232/485 RS-485 RS-485
COM4 RS-232
I/O Expansion Slots 1/4/8 0/3/7 0/3/7
64-bit Hardware Serial Number Yes Yes Yes
Push button Yes (For Reset) Yes (For Reset)
Programmable LED 1
Dual Watchdog Timer Yes Yes Yes
Real Time Clock Yes Yes Yes
DIP Switch (8 bit) Yes
Rotary Switch Yes (0~9) Yes (0~F)
