Motionnet Solutions

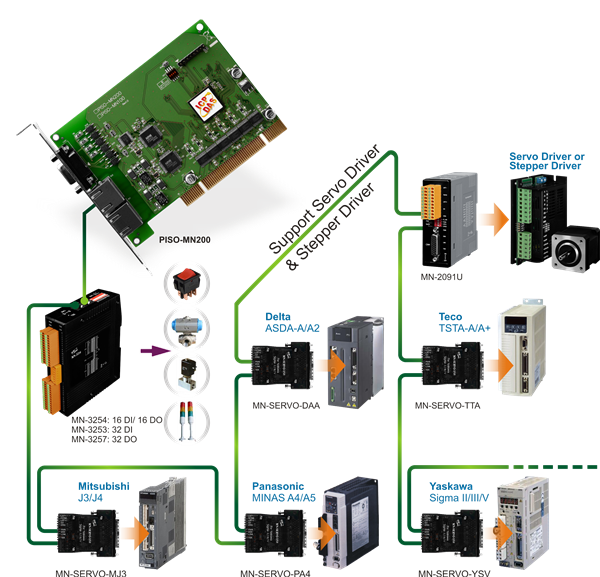

Motionnet is a high-speed serial communication system that includes a Master card and Slave modules. ICP DAS provides two categories of Slaves: the first is used for Digital I/O, and the other is used for motion control. There are 3 main types of digital I/O modules: 32-ch Input, 32-ch Output and 16-ch Input/Output. Using these Slave devices, customers' actuators/sensors can easily be directly connected. Motion control modules can be used together with either a Servo motor or a Stepping motor from a variety of vendors.

Motionnet communication between a Master and the Slaves is based on a proprietary RS-485 technology (Multi-drop, Half-duplex) and provides the advantage of reduced wiring requirements together with the capability of long-distance and high-speed communication. Data transfer for the I/O modules is cyclical and time deterministic, so can be widely used for industrial automation applications.

  • Communication speed: Max. 20 Mbps
  • Communication distance: Max. 100m
  • Controllable modules: 64 modules per line
  • Data transfer rate: 15.1 μsec/module (each module provide 32 I/O points)
                              2048 points in 0.97 msec (when 64 modules are connected)

PCI Master Cards
PISO-MN200(T/EC) CR PCI Bus, Dual-Line Motionnet Master Card (RoHS)
Motion Control Modules
MN-SERVO-xxx Series CR MN-SERVO-MJ3 / PA4 / YSV / DAA:
Distributed Motionnet Single-axis Motion Control Modules (RoHS)
MN-SERVO-xxx-EC Series CR Distributed Motionnet Single-axis Motion Control Modules
with e-CON Mini-Clamp connector
(RoHS)
MN-2091U(-T) CR Distributed Motionnet Single-axis Universal Motion Control Module (RoHS)
MN-MP4U-DIN CR Distributed Motionnet Four-axis Universal Motion Control Module (RoHS)
Analog I/O Modules
MN-AD8-DIN CR Distributed Motionnet 8-ch AI Module (RoHS)
MN-DA2-DIN CR Distributed Motionnet 2-ch AO Module (RoHS)
Digital I/O Modules
MN-3254(T) CR Distributed Motionnet 16-ch Isolated DI, 16-ch Isolated DO Module (RoHS)
MN-3253(T) CR Distributed Motionnet 32-ch Isolated DI Module (RoHS)
MN-3257(T) CR Distributed Motionnet 32-ch Isolated DO Module (RoHS)
MN-D622-DIN CR Distributed Motionnet 16-ch Isolated DI, 16-ch Isolated DO Module
with Mini-Clamp connector (RoHS)
MN-D640-DIN CR

Distributed Motionnet 32-ch Isolated DI Module with Mini-Clamp connector (RoHS)

MN-D604-DIN CR Distributed Motionnet 32-ch Isolated DO Module with Mini-Clamp connector (RoHS)
Hub Modules
MN-HUB4(EC) CR Distributed Motionnet 4 port Hub module with RJ-45 Jack (RoHS)
(EC: with e-CON Mini-Clamp connector)
