MN-HUB4/MN-HUB4EC
Distributed Motionnet 4 Port Hub Module

~ NEW ~
Model: MN-HUB4
Model: MN-HUB4EC


● True Motionnet Star Wiring Hub
● Independent Motionnet transceiver for each channel
● Maximum communication speed: 20 Mbps
● LEDs for indicating each Motionnet activity
● RJ-45 jack for standard module while the EC module equipped
  with Mini-Clamp connector
● DIN-Rail Mounting
●

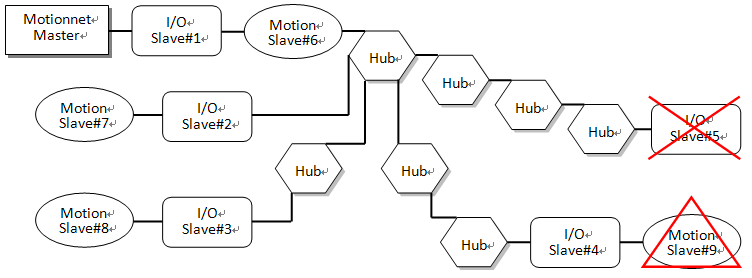

In some user’s application, users may encounter some difficulty in wiring since the standard Motionnet only support daisy-chain topology. The MN-HUB4 series modules can help users to use star or tree topology during wiring which not only can make the wiring more easier but also reduce the total wiring distance and cost.




Module ID No. of Layers
to Master		 Accessible Module ID No. of Layers
to Master		 Accessible
1 (I/O) 0 Yes 6 (Motion) 0 Yes
2 (I/O) 1 Yes 7 (Motion) 1 Yes
3 (I/O) 2 Yes 8 (Motion) 2 Yes
4 (I/O) 3 Yes 9 (Motion) 3 Yes
5 (I/O) 4 No


Motion Modules No. of Layers between Modules Interpolation Motion Modules No. of Layers between Modules Interpolation
6 and 7 1 Yes 7 and 8 2 Yes
6 and 8 2 Yes 7 and 9 3 No
6 and 9 3 No 8 and 9 4 No


Interface
Communication Speed 2.5 M, 5 M, 10 M, 20 Mbps
No. of Connection Line Main Line (same layer): 2
Branch Line (to next layer): 4
Communication Distance 100 M Max. (20 Mbps; up to 32 modules)
50 M Max. (20 Mbps; up to 64 modules)
100 M Max. (10 Mbps; up to 64 modules)
Layers between Modules I/O or independent axis: 3 (Max.)
Between two interpolation axes: 2 (Max.)
Power
Voltage Range 12 - 24 V
Environmental
Operating Temp. 0 °C ~ + 60 °C
Storage Temp. -20 °C ~ +80 °C
Operating Humidity 10 ~ 85%, Non-condensing
Storage Humidity 5 ~ 95%, Non-condensing

MN-HUB4 CR Distributed Motionnet 4 port Hub module with RJ-45 Jack (RoHS)
MN-HUB4EC CR Distributed Motionnet 4 port Hub module with e-CON Mini-Clamp connector (RoHS)

PISO-MN200(T/EC) CR PCI Bus, Dual-Line Motionnet Control Master Card (RoHS)
MN-SERVO Series CR MN-SERVO-MJ3 / PA4 / YSV / DAA:
Distributed Motionnet Single-axis Motion Control Modules (RoHS)
MN-SERVO-xxx-EC Series CR Distributed Motionnet Single-axis Motion Control Modules with e-CON Mini-Clamp connector (RoHS)
MN-2091U(-T) CR Distributed Motionnet Single-axis Universal Motion Control Module (RoHS)
MN-MP4U-DIN CR Distributed Motionnet Four-axis Universal Motion Control Module (RoHS)
MN-3254(T) CR Distributed Motionnet 16-ch Isolated DI, 16-ch Isolated DO Module (RoHS)
MN-3253(T) CR Distributed Motionnet 32-ch Isolated DI Module (RoHS)
MN-3257(T) CR Distributed Motionnet 32-ch Isolated DO Module (RoHS)
MN-D622-DIN CR Distributed Motionnet 16-ch Isolated DI 16-ch Isolated DO Module (RoHS)
MN-D640-DIN CR Distributed Motionnet 32-ch Isolated DI Module (RoHS)
MN-D604-DIN CR Distributed Motionnet 32-ch Isolated DO Module (RoHS)
MN-AD8-DIN CR Distributed Motionnet 8-ch Analog Input Module (RoHS)
MN-DA2-DIN CR Distributed Motionnet 2-ch Analog Output Module (RoHS)

Mini Clamp Wiremount Plug Applicable Wire
ICP DAS Part No. Cover Color 3M Part No. AWG No. Cross-sectional Area (mm2) Finished External Diameter (mm)

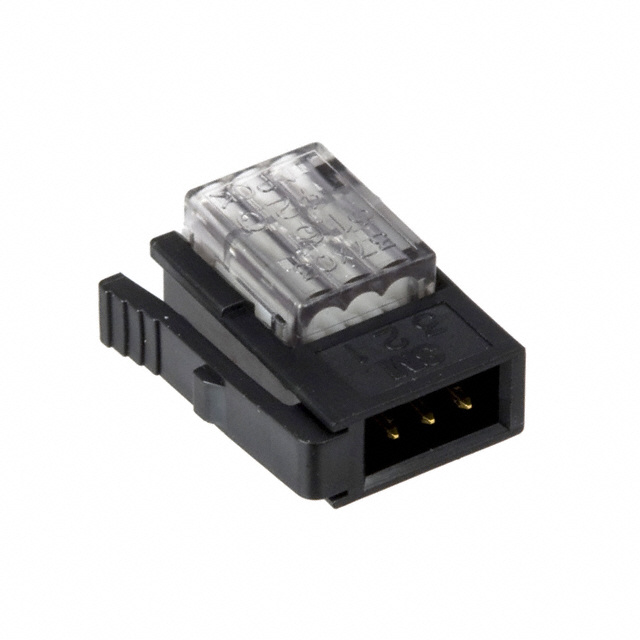

4PKD1O0000001 Gray 37103-2206-000FL 20 – 22 0.3 – 0.5 1.6 – 2.0

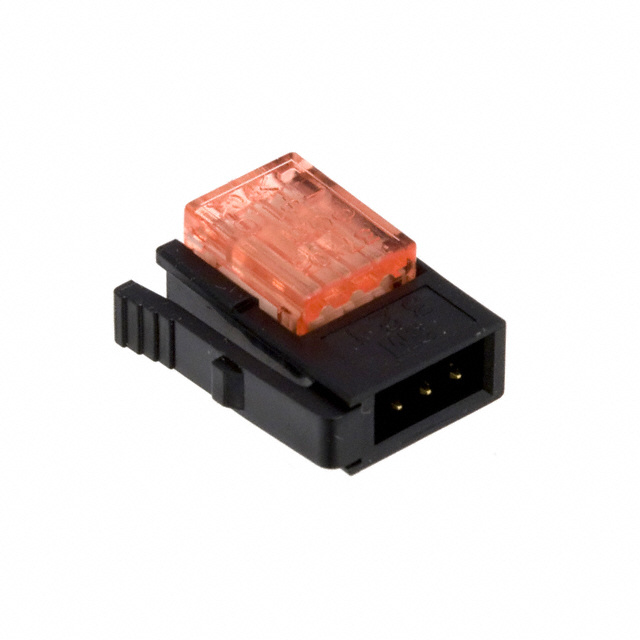

4PKD1O0000002 Red 37103-3101-000FL 24 – 26 0.14 – 0.3 0.8 – 1.0

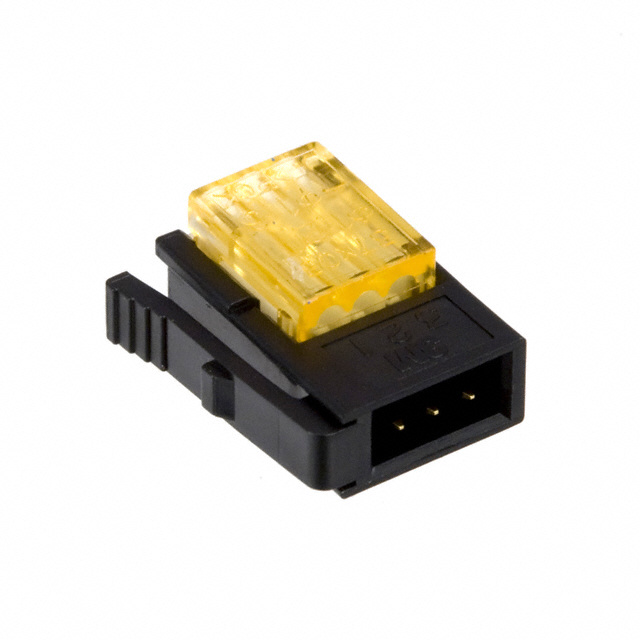

4PKD1O0000003 Orange 37103-3163-000FL 24 – 26 0.14 – 0.3 1.2 – 1.6
