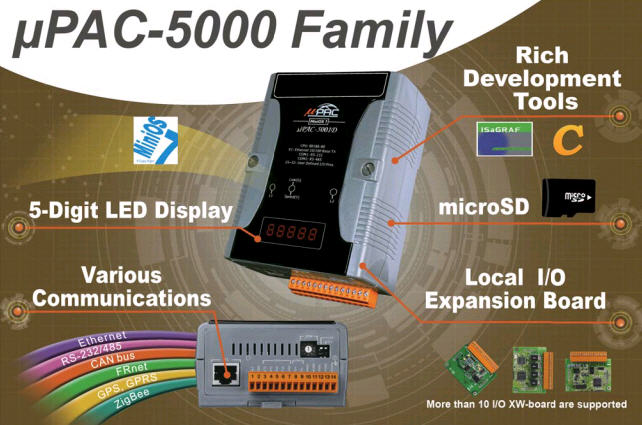

The μPAC-5000 Series is equipped a 80186 CPU running a MiniOS7 operating system, various connectivity (Ethernet, RS-232/485) and an I/O expansion bus.

The μPAC-5000 series is an enhanced version of μPAC-7186. Owing to the bigger and special form factor design, the μPAC-5000 can add an internal wireless module, such as 2G, 3G, ZigBee, Wi-Fi, GPS for different wireless application. The optional I/O expansion board, XW-board, is two times larger than the X-board of μPAC-7186 and provides high-protection I/O. With built-in micro SD, the μPAC-5000 can be used as a data logger.



  • DOS-like real-time OS
  • Boot up in 0.4 ~ 0.8 second
  • Built-in hardware diagnostic
  • Standard version for C language programming
  • ISaGRAF version for IEC 61131-3 programming


2. Local I/O and Communication Expansion Board
The μPAC 5000 series equip an I/O expansion bus to support one optional expansion board, called XW-Board. It can be used to implement various I/O functions such as DI, DO, A/D, D/A, Timer/Counter and various communication interface options, such as RS-232/422/485, CAN, FRnet, etc.


3. Remote I/O Module and Expansion Unit
With the built-in RS-485 and Ethernet ports, the 5000 series can connect RS-485/Ethernet remote I/O units (RU-87Pn/ET-87Pn) or modules (I-7000/M-7000/ET-7000). With an XW-Board, the 5000 series can have more communication ports or different interface to connect to other type of devices, for example, CANOpen devices, DeviceNet devices, or FRnet I/O modules.


4. Multiple Communication Interfaces
Several different types of communication interface are avalible that enable I/O modules to be expanded and connected to external devices: 1. Ethernet      2. RS-232/485      3. CAN bus      4. FRnet      5. GPS      6. 2G/3G      7. ZigBee      8. Wi-Fi




5. Various Memory Storage Options
μPAC-5000 provides various memory storage options. Customers can choose the memory based on their characteristics.
16 KB EEPROM: to store not frequently changed parameters.
microSD: to implement portable data logging applications.
256 MB NAND Flash Disk: rugged data storage to resist shock and vibration.
512 KB battery backup SRAM: to retain data while power lost for 5 years; no write cycle limitation.



6. Unique 64-bit Hardware Serial Number to Protect Your Program
A unique 64-bit serial number is assigned to each hardware device to protect your software against piracy.



7. Plastic and Metal Casing
The default case is plastic material. Metal casing is also offered to OEM version.


8. Highly Reliable Under Harsh Environment
Our μPACs operate in a wide range of temperature and humidity.
9. Redundant Power Inputs
Operating Temperature: -25 ~ +75XC
Storage Temperature: -30 ~ +80XC
Humidity 10 ~ 90% RH (non-condensing)
