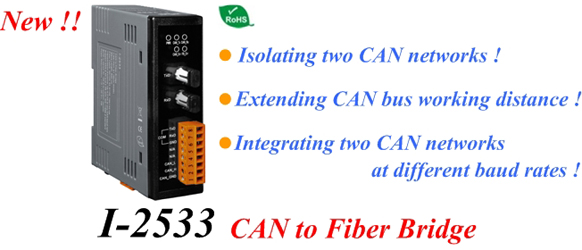

ICP DAS New Product¡GI-2533 CAN to Fiber Bridge

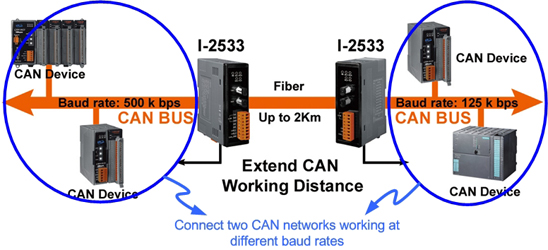

The I-2533 is a local CAN bridge used to establish a connection between two CAN bus systems via fiber transmission medium. In order to solve the problem between CAN and fiber transmission mediums, the I-2533 is specially designed for converting the electrical CAN bus signal to the optical signal, and recover the signal to CAN bus by using another I-2533. Compare with the I-2532, CAN to fiber converter, the I-2533 has three more important features. First, the transmission distance limitation of the CAN bus system will not be reduced due to higher CAN baud rate. No matter what kind of CAN baud rates you use, the data transmission distance of fiber is up to 2 km. It means that the total network working distance can be extended.


Second, the error on the CAN bus side of the I-2533 will not affect the normal operation of the side on the fiber optic cable. Finally, you can use different baud rate in the CAN networks located at the both ends of the fiber optical cable if necessary.

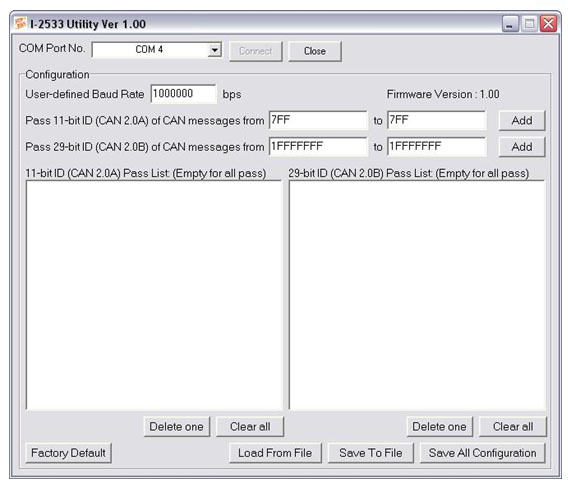

Besides, the I-2533 provides the utility tool for user-defined baud rate and message filter configuration. When users use the I-2533 on two CAN networks which have different CAN baud rate, it may be useful to reduce the bus loading on the network.


The following table describes the performance test of the I-2533. The test architecture uses two I-2533s connected with a two-meter fiber optic cable. The CAN port of each I-2533 connects a CAN device which is programmed to send 100,000 ID-fixed 2.0A CAN messages with each other. Record the time interval between the time of start transmission and the time which the CAN device has received 100,000 2.0A CAN messages sent from another CAN device.

Baud (bps) Device A Time Interval (ms) Device B Time Interval (ms) Device A FPS Device B FPS
1 M ¡V 1 M 23052 23007 4338 4347
800 k ¡V 800 k 28931 28874 3456 3463
500 k ¡V 500 k 46513 46323 2150 2159
250 k ¡V 250 k 92132 91953 1085 1088
125 k ¡V 125 k 184358 182170 542 549
100 k ¡V 100 k 232738 224447 430 446
80 k ¡V 80 k 291203 262416 343 381
50 k ¡V 50 k 296838 467258 337 214
20 k ¡V 20 k 580830 579635 172 173
10 k ¡V 10 k 2313130 1149217 43 87
1 M¡V 800 k 28018 30951 3569 3231
Note: FPS stands for frame per second.


Features:

  • NXP 82C250 CAN transceiver
  • 2500 Vrms isolation on the CAN side
  • 3 kv galvanic isolation between the power supply and CAN channel
  • Support both CAN 2.0A and CAN 2.0B
  • Fully compatible with the ISO 11898-2 standard
  • Rotary switch for CAN baud rate configuration
  • Build-in switch to select 120£[ terminal resistor
  • Up to 100 CAN nodes on each channel
  • Fiber Port: ST (Multi-mode)
  • Wave Length: 850 nm
  • Fiber Cable: 50 / 125 £gm , 62.5 / 125 £gm, 100 / 140 £gm (62.5 / 125£gm is recommended)
  • Transmission distance up to 2 km at any CAN baud rate (in 62.5/125 um fiber optic cable)
  • Removable terminal block, Mount easily on DIN-rail
  • Allow user-defined baud rate
  • Utility tool for message filter configuration
  • Support CANopen/DeviceNet/J1939¡K standard protocols which follows ISO 11898-2 specification.

Comparison Table of CAN Repeater & Bridge Products:
  I-2533 CAN to fiber Bridge I-2532 CAN to fiber Repeater I-7531 CAN bus Repeater I-7532 CAN bus Bridge
CPU inside
Support Fiber
Extend CAN bus working distance
Repeat CAN bus signal
Integrate two CAN networks at different baud rate
CAN bus filter
Support protocol: CANopen/DeviceNet /J1939

For more information about the products described above, please refer to the following website:
I-2532: http://www.icpdas.com/products/Remote_IO/can_bus/i-2532.htm
I-2533: http://www.icpdas.com/products/Remote_IO/can_bus/i-2533.htm
I-7531: http://www.icpdas.com/products/Remote_IO/can_bus/i-7531.htm
I-7532: http://www.icpdas.com/products/Remote_IO/can_bus/i-7532.htm
