| Ethernet ISaGRAF PAC (Dual-LAN: 10/100 Mbps) |
 |
 |
 |
 |
|
 |
 |
 |
 |
|
|
|
|
|
 |
|
|
|
| |
|
|
| |
|
|
| |
The WinCon-8x47 series is a Dual-LAN PAC and includes ISaGRAF SoftLogic. It has dual Ethernet 10/100M ports, dual USB host |
|
| |
ports, one RS-232 port and one RS-485 port. The user can choose Local I/O modules¡GI-8K/I-87K I/O modules and RS-485 Remote |
|
| |
I/O modules¡GI-7000 or expansion units (I-87Kn or RU-87Pn) plugged with I-87K serial I/O modules. |
|
| |
|
|
| |
W-8xx7 series support Modbus RTU Slave protocol, Modbus TCP/IP Slave protocol, Modbus Master RTU/ASCII protocol, Remote I/O, |
|
| |
Fbus, Ebus, SMS: Short Message Service, Modem Link, MMICON/LCD and user defined protocol. |
|
| |
|
|
| |
 |
|
| |
|
|
| |
 for "Performance Comparison Table of ISaGRAF PACs" |
|
| |
|
|
|
|
|
| |
 Stress Monitoring Application of Constructions |
 ICP DAS releases effective VW sensor solution (Vibration Wire solution). It¡¦s useful for measuring the stress of constructions like
building, bridge, dam, etc.... |
| This solution has been successfully applied in some water dams monitoring system near the city Wuhan in China. |
| Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 091 for more information. |
| |
 |
| |
|
|

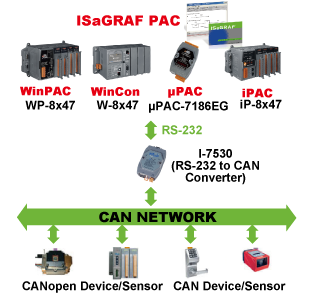

| Integrate with CAN/CANopen Devices and Sensors |
| W-8xx7 supports max. ten I-7530 (RS-232 to CAN) converters. |
| Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 086 for more information. |
| |
 |
| |
|
|
| |

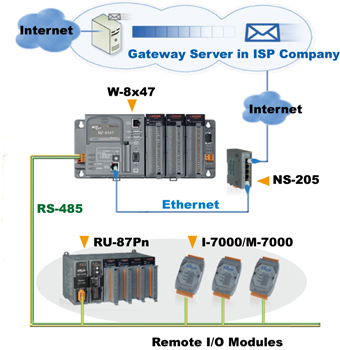

| Send Email with One Attached File |
| Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 067 for more information. |
| |
 |
| |
|
|
| Data Acquisition and Auto-Report System ( How to use ? ) |
| VC++ 6.0, VB 6.0 and ISaGRAF demo programs are available. |
| The W-8347/8747 can use UDP/IP Client protocol to auto-report acquisition data & control data to local or to remote
Internet PC/Server. |
| |
| Advantage: Every PAC in the different location doesn't need a fixed Internet IP. |
| Please Click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 065 for more information. |
| |
| Please Click for Application Figure |
| |
|
|
| |

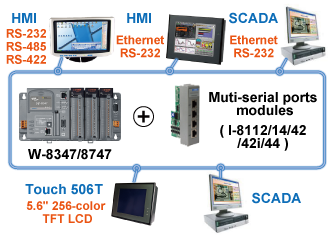

| Modbus RTU/TCP Slave Ports ( How to use ? ) |
| Modbus RTU (RS-232/485/422): max. 5 Modbus RTU Slave ports. |
| Modbus TCP/IP: max. 32 PC/HMI/SCADA connections. |
( The W-8xx7 with driver version 4.02 or older version only supports 8 Modbus TCP/IP connections, while supports up to 32 Modbus
TCP/IP connections since the version 4.03.) |
| |
 |
| |

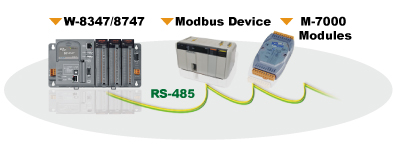

| Modbus RTU/ASCII Master Ports ( How to use ? ) |
| Modbus RTU/ASCII (RS-232/485/422): max. 10 Modbus RTU/ASCII Master ports. |
| |
| Please Click for Application Figure |
| |
|
|
| |

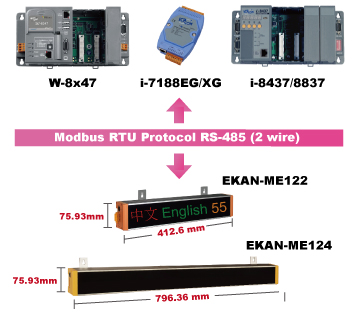

| EKAN - Modview LED Display ( How to use ? ) |
ICP DAS ISaGRAF PACs, The WP-8x47, W-8x47/8x46, iP-8x47, I-8xx7, I-7188EG/XG, £gPAC-7186EG can display Message, Real, Integer, Boolean value, Local language in Bitmap format, Bitmap picture to EKAN - Modview LED display by Modbus RTU protocol via RS-485 port.
|
|
| |
| Please Click for Application Figure |
| |
|
|
| |

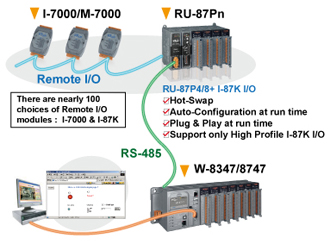

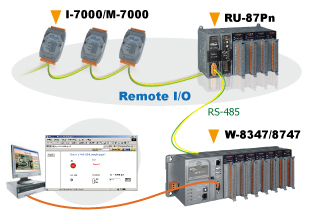

| Remote I/O modules |
There are about 100 choices of Local I/O boards ( I-8K, I-87K ) and Remote I/O modules ( I-7K, M-7K »P RU-87P1/2/4/8 + I-87K High
Profile cards ). |
| |
|
| |
|
|

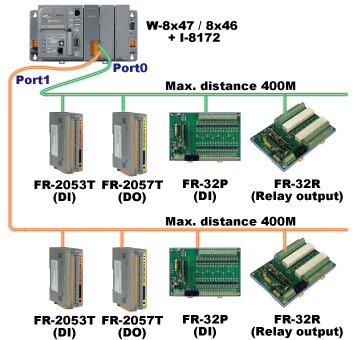

| FRnet I/O ( How to use ? ) |
Fast Scan, about 3 ms per FRnet scan. (This depends on your ISaGRAF PLC program's scan time, if the ISaGRAF PLC scan time is 8 ms, then the scan time for all will be 8 ms, instead of 3 ms.)
The max. I/O channel number can be 7 x 256 = 1792 Ch. of Digital Inputs plus 1792 Ch. of Digital Outputs (if all 7 slots are plug-in I-8172). |
|
| |
 |
| |
|
|
| |
| New Redundant System with Ethernet I/O |
| If one Ethernet cable of W-8347/8747 is broken or damaged, the other one will still work. |
| The scan of Ethernet I/O is much faster than that of RS-485 I-7000 or I-87K I/O. |
| If one controller is dead, the other one will take over the control of the Ethernet I/O. |
| PC/HMI can connect to this redundant system by one or two active IP. |
| More at www.icpdas.com> FAQ > Software > ISaGRAF Ver.3 (English) - 093, 042. |
| |
 |
| |
|
|
| |
| New Hot-Swap and Redundant System |
| If one Ethernet cable of W-8347/8747 is broken or damaged, the other one will still work. |
| If one controller is dead, the other one will take over the control of the RS-485 I/O. |
| PC/HMI can connect to this redundant system by one or two active IP. |
| Hot Swap I/O (Apply to RU-87P1/2/4/8 with I-87K High profile I/O cards only). |
| More at www.icpdas.com> FAQ > Software > ISaGRAF Ver.3 (English) - 093. |
| |
 |
| |
|
|
| |

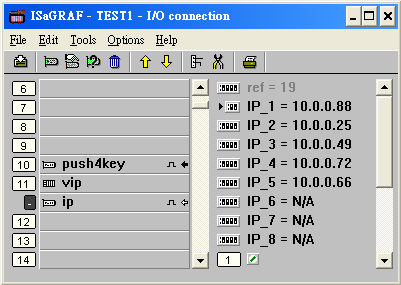

| Ethernet Communication Security |
The W-8xx7 supports Modbus TCP/IP protocol in its Ethernet ports. For safety reason, user may add security features in the Modbus TCP/IP protocol. By this way, only authorized PCs or devices with permissive IPs will be allowed to connect to W-8xx7 via Modbus TCP/IP. ( How to use ? ) |
| |
| Please Click for Application Figure |
|
| |
|
|
| |
| Web HMI |
The Web HMI is a free software mechanism coming with some ICP DAS¡¦s PAC (Programmable Automation Controller). The Web HMI offers functions that you could monitor or control the local or remote controller via the Internet Explorer running on your PC.
( How to use ? ) ( Download Manual, Driver & ... ) |
|
| |
 |
| |
|
|
| |

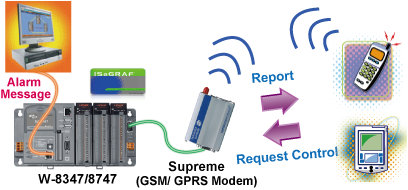

| SMS: Short Message Service |
The ISaGRAF PACs can integrate with a GSM Modem to support SMS: Short Message Service. This allows user to request information or perform control tasks for the ISaGRAF PAC via his personal cellular phone. In addition, the controller can also send information and alarms to user¡¦s cellular phone. ( How to use ? ) |
| |
| Please Click for Application Figure |
|
| |
|
|

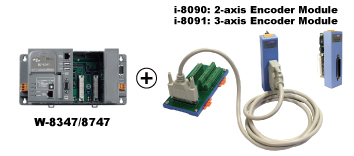

| Motion Control ( How to use ? ) |
| One I-8091 can control 2-axis: X-Y plane, or 2 independent axes. |
| Two I-8091 can control 4-axis: X-Y plane + 2 independent axes or 4 independent axes. |
| |
| Please Click for Application Figure |
| |
|
|

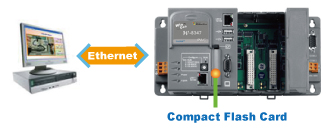

| Data Log |
|
| |
|
| back |

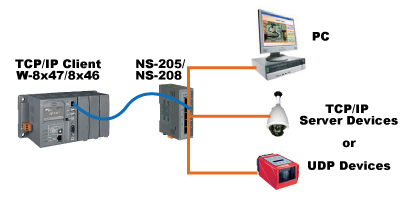

| Communicate with Other TCP/IP Server Devices or UDP Devices |
|
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
| Development Software |
|
| ISaGRAF Software |

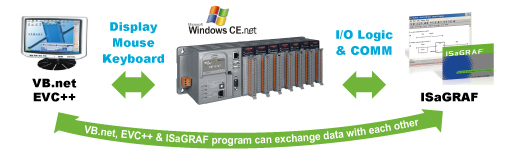

ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC |
| Max. Code Size |
W-8347/8747 accepts max. 1 MB ISaGRAF code size (Appli.x8m must < 1 MB) |
| Non-ISaGRAF |
Options: Microsoft EVC++4.0 or VS.NET 2003 (VB.NET2003, C#.NET2003) |
| Web Service |
|
| Web HMI |
Supports Web HMI function, PC running Internet Explorer can access to the WinCon-8347/8747 via Local Ethernet or Internet or dial Modem, monitoring and control. |
| Security |
Web HMI supports three levels user name and password protection |
| Power Supply |
|
| Input Range |
10 ~ 30 VDC (unregulated), 20 W (when I/O slots are empty ) |
| Protection |
Built-in power protection & network protection circuit |
| General Environment |
Operating: -25 ¢XC ~ +75 ¢XC ( -13 ¢X F ~ +167 ¢X F) ,
Storage : -30 ¢XC ~ +85 ¢XC ( -40 ¢X F ~ +176 ¢X F)
Humidity: 5 % ~ 95 % (non-condensed) |
| System |
|
| CPU & Watchdog Timer |
Intel Strong ARM CPU, 206 MHz, or compatible. Watchdog: Yes |
| RTC (Real Time Clock) |
Gives hour, minute, sec, day of week, day of month, month & year |
| SRAM & FLASH Memory |
SRAM: 64 MB, FLASH Memory: 32 MB for OS image |
| Compact Flash Card |
One Compact Flash slot: CF memory card is 128 MB or more |
| EEPROM |
16 KB, retention > 100 years. 1,000,000 erase/write cycles |
| I/O Slots |
I/O slots: W-8347: 3 , W-8747: 7, accept I-8K parallel & I-87K serial I/O boards |
| VGA Port |
1 VGA port: resolution: 320x240x16 to 1024x768x16, default is 640x480x16 |
| Two USB Port |
two USB 1.1 Host ports for USB mouse, keyboard or USB drive |
| Reset Button, LED, NET ID |
1 reset button & 1 power LED. NET ID: From 1 ~ 255, set by software |
| Unique Serial Number |
64-bit hardware unique serial number |
| Serial Ports |
|
| COM1 |
Internal use for I-87K serial I/O boards of W-8347 & W-8747. |
| COM2 |
RS-232: full modem signals, Speed: 115200 bps max. |
| COM3 |
RS-485, Speed: 115200 bps max. D+, D- |
| Two Ethernet Ports |
LAN1 & LAN2, 10/100 Mbps, NE2000 compatible, 10 Base-T, Programs download port.
Please use NS-205/NS-208 Industrial Ethernet Switch. |
| Motion |
|
| Motion Control |
W-8347/8747 integrate with one I-8091 (2-axes) or two I-8091 (4-axes) can do motion control |
| PWM Output |
|
| PWM Output |
8-ch. max. 250 Hz max. For Off=2 & On=2 ms . Output square curve: Off: 2 ~ 32766 ms, On: 2 ~ 32766 ms. Optional DO boards: I-8037, 8041, 8042, 8054, 8055, 8056, 8057, 8060, 8063, 8064, 8065, 8066,8068, 8069 (Relay boards cannot generate fast square pulse) |
| Counters |
|
| Parallel DI Counter |
8-ch. max. For 1 controller. Counter val: 32-bit. 250 Hz max. Min. ON & OFF width must > 2 ms. Optional DI boards: I-8040, 8042, 8051, 8052, 8053, 8054, 8055, 8058, 8063, 8077 |
| Serial DI Counter |
Counter input: 100 Hz max. Counter value: 0 ~ 65535 (16-bit)
Optional serial I-87K DI boards: I-87051, 87052, 87053, 87054, 87055, 87058, 87063 |
| Remote DI Counter |
All remote I-7000 & I-87K DI modules support counters. 100 Hz max. value: 0 ~ 65535 |
| High Speed Counter |
I-87082: 100 kHz max. 32-bit, I-8080: 450 kHz max. 32-bit |
| Protocols |
|
Modbus RTU/ASCII Master
(multi-port) |
Supports multi-ports of Modbus RTU/ASCII Master protocol to connect to other Modbus Slave devices. COM2, COM3, (or COM4 ~ COM14 if I-8112/8114/8142/8144 is found) Max. 10 ports. |
Modbus Serial Protocol
(RTU Slave) |
Up to 5 COM Ports (one of COM2, 3 and 5, 6, 7, 8) can support Modbus RTU Slave protocol for connecting ISaGRAF, PC/HMI/OPC Server & HMI panels. |
| Modbus TCP/IP Slave Protocol |
Ethernet port supports Modbus TCP/IP Slave protocol for connecting ISaGRAF & PC/HMI. |
| Web HMI Protocol |
Ethernet port for connecting PC running Internet Explorer. |
| I-7000 & I-87K Remote I/O |
COM3 supports I-7000 I/O modules & (I-87K base + I-87K serial I/O boards or RU-87P1/2/4/8 with I-87K High Profile I/O cards) as Remote I/O. Max. 255 pcs. of I-7000/87K Remote I/O modules for one controller. |
| M-7000 Series Modbus I/O |
Max. 10 RS-485 ports ¡V COM3 & (COM5 ~ COM14 if I-8142/8142i/8144 is found) can support M-7000 series Modbus I/O. Each port can connect up to 32 M-7000 Modules. |
| Modbus TCP/IP I/O |
LAN2 supports ICP DAS Ethernet I/O : I-8KE4-MTCP and I-8KE8-MTCP listed at www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-042. |
| FRnet I/O |
W-8xx7 can support max 7 pcs. I-8172 boards in slot 1 ~ 7 to connect to FRnet I/O modules, like FR-2053, FR-2057 FR-32R, FR-32P, more at www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-048. Each I-8172 board can connect up to 256 DI plus 256 DO channel. |
| Send Email |
Supports mail_snd and mail_set functions to send email with one attached file via Ethernet port. |
| Ebus |
To exchange data between ICP DAS¡¦s ISaGRAF Ethernet controllers via Ethernet port. |
| SMS: Short Message Service |
One of COM2 (or COM5 if I-8112 is found) can link to a GSM modem to support SMS. User can request data/control the controller by cellular phone. The controller can also send data & alarms to user¡¦s cellular phone. Optional GSM modems: Supreme ( 850/900/1800/1900 GSM/GPRS External Modem) . |
| User Defined Protocol |
User can write his own protocol applied at COM2, COM3, (& COM4 ~ COM14 if multi-serial port boards are plugged) by serial communication function blocks. |
| Modem_Link |
COM2 supports PC to remotely download & monitor the controller through a normal modem. |
| MMICON/LCD |
COM2 (or COM5 if I-8112/8114 is found) supports ICP DAS¡¦s MMICON. The MMICON is featured with a 240 x 64 dot LCD & a 4 x 4 Keyboard to display picture, string, integer, float, & input a char, string, integer & float. |
UDP Server & UDP Client
(Exchange Message& Auto-Report) |
LAN1 or LAN2 support UDP Server and UDP/IP Client protocol to send/receive message to/from PC/HMI or other devices. For example, to automatically report data to InduSoft ¡¥s RXTX driver. |
TCP Client
(Exchange message & Auto-report) |
LAN1 or LAN2 support TCP Client protocol to send/receive message to/from PC/HMI or other devices which support TCP server protocol. For example, to automatically report data to InduSoft ¡¥s RXTX driver, or to connect a location camera. |
New Hot-Swap and
Redundant System |
This redundant system has setup two ¡§Active IP¡¨ address point to the active W-8x47's LAN1 and LAN2 ports always. One or two or more PC/HMI/SCADA can communicate with this redundant system via one of the two given active IP. So the PC/HMI/SCADA can access to the system easily without any notice about which W-8x47 is currently active. Moreover, the new redundant system can integrate with the RU-87P4 and RU-87P8 expansion unit plus the I-87K high-profile I/O cards to support the hot-swap application. If the I/O card is damaged, the maintenance person just takes one good-card with same model name to hot-swap the damaged one without stopping this redundant system. Please refer to www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-093. |
| CAN/CANopen |
W-8xx7 can use its COM2 or COM5 ~ COM14 (resides at the I-8112/8114 RS-232 expansion board) to connect one I-7530 : the RS-232 to CAN converter to support CAN and CANopen devices and sensors. One W-8xx7 supports max.10 RS-232 port to connect max.10 I-7530. Please refer to www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-086. |
| Battery Backup SRAM |
|
| W-8347/8747 supports up to 4096 retain variables with a S256/S512 plug in the socket of the new back-plane ( ver. 3-slot: 2.6 , 7-slot: 2.8 ). Optional: S256: 256 KB, S512: 512 KB |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| ISaGRAF PAC |
W-8347 (blue)
W-8347-G (gray) |
3-slot Ethernet ISaGRAF WinCon PAC
Dual-LAN: 10/100 Mbps |
W-8747 (blue)
W-8747-G (gray) |
7-slot Ethernet ISaGRAF WinCon PAC
Dual-LAN: 10/100 Mbps |
| Upgrade |
W-GUP-01 |
Upgrade WinCon-8x41 to become
WinCon-8x47 to support ISaGRAF
(Upgrade WinCon-8x49 to become WinCon-8x46 to support ISaGRAF) |
| Development
Software |
ISaGRAF-256-E
ISaGRAF-256-C |
ISaGRAF Workbench Software Ver.3 (256 I/O Tags)
with application book (E: English book; C: Chinese book) |
ISaGRAF-32-E
ISaGRAF-32-C |
ISaGRAF Workbench Software Ver.3 (32 I/O Tags) ReadMe
with application book (E: English book; C: Chinese book)
Note: ISaGRAF-32 cannot upgrade to become ISaGRAF-256 |
| Application
Book |
ISaGRAF Book-E |
ISaGRAF Application Book (English) |
| ISaGRAF Book-C |
ISaGRAF Application Book (Traditional Chinese) |
| Optional |
| Ethernet Switch |
NS-205 CR |
Unmanaged 5-Port Industrial Ethernet Switch (RoHS) |
| NS-208 CR |
Unmanaged 8-Port Industrial 10/100 Base-T Ethernet Switch (RoHS) |
| Remote I/O Unit |
RU-87Pn |
Remote intelligent I/O expansion unit
( It used to expand I-87K series I/O modules over the RS-485 ) |
| FRnet I/O |
FR-2053T |
16-channel Isolated Sink Digital Input Module |
| FR-2057T |
16-channel Isolated Sink Digital Output Module |
| FR-32P |
32-channel Isolated Digital Input Module |
| FR-32R |
32-channel Relay Output Module |
| I-8172 |
FRnet Master Card; 2-Port FRnet Module |
| Monitor |
ADP-1080T-R |
8" Color Industrial Display Monitor with Sealed Touch Screen, RS-232 Interface |
| HMI |
Touch 500 |
Touch LCD Monitor (RS-232/RS-485) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| DP-660 |
24 V/2.5 A , 5 V/0.5 A Dual Output Power Supply |
| DP-665 |
24 V/2.5 A , 5 V/0.5 A Dual Output Power Supply |
| DP-1200 CR |
24 V/5 A Power Supply (RoHS) |
Note1:
The I-7000 & I-87K series provides cost-effective protection and signals conversion for a wide range of valuable industrial control signals and control systems. Our product line includes RS-232 to RS-485 Converter, Digital I/O, Timer/Counter, Data Display, and application programs. I-7000 modules are good for a small amount of I/O channels, while I-87K I/O expansion units are good for medium amount of channels. |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
