| Model: iP-8447 |
|
| Model: iP-8847 |
|
|
|
|
|
|
|
 |
|
|
|
| |
|
|
| |
|
|
| |
iPAC-8x47 Series (iP-8447/8847) is the Dual Ethernet ISaGRAF SoftLogic PAC (Programmable Automation Controller) of ICP DAS iPAC-8000 series. It equips an 80186-80 MHz CPU running a MiniOS7 operating system, variant connectivity (Dual 10/100 Base-TX Ethernet Ports, one RS-232/485 port, one RS-485 port and two RS-232 ports) and 4/8 slots for high performance Parallel I/O modules (High profile I-8K series) and high performance Serial-type I/O modules (Hot-Swap high profile I-87K I/O modules). Users can also choose RS-485 Remote I/O modules (I-7000 series) or expansion units (RU-87Pn or I-87Kn) plugged with high profile I-87K serial I/O modules. Compared with I-8xx7, iPAC-8x47 series is 2 ~ 4 times faster! |
|
| |
|
|
| |
|
|
| |
 for "Performance Comparison Table of ISaGRAF PACs" |
|
| |
|
|
|
|
|
| |
 Constructions Monitoring Application |
 ICP DAS release effective VW sensor solution (Vibration Wire solution). Itˇ¦s useful for measuring the stress of constructions like
building, bridge, dam, etc...
|
| This solution has been successfully applied in some water dams monitoring system near the city Wuhan in China.. |
| Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 091 for more information |
| |
 |
| |
|
|
| |
| Integrate with CAN / CANopen Devices and Sensors |
| iP-8x47 Supports max. 3 I-7530 (RS-232 to CAN) Converters |
| Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 086 for more information |
| |
 |
| |
|
|
| |
| Send Email with One Attached File |
| Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) ˇV 067 for more information |
| |
 |
| |
|
|
| |
| Data Acquisition Auto-Report System |
| VC++ 6.0, VB 6.0 and ISaGRAF demo program are available |
| iP-8x47 can use UDP Client protocol to auto-report acquisition data & control data to local or to remote internet PC/Server. |
| |
| Advantage: Each iP-8x47 in the different location doesnˇ¦t need a fixed Internet IP. |
| Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English)- 065 for more information |
| |
|
| |
|
|
| |

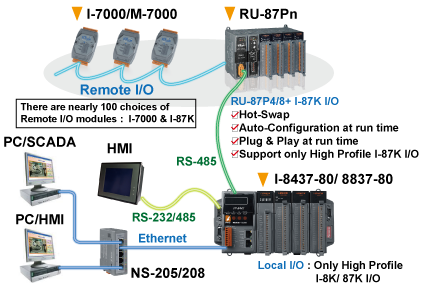

| Local/Remote I/O Expansion & Multi-HMI |
| iP-8447/ 8847 only support I-8K, I-87K High Profile I/O modules plugged on (local) slot. |
Users can choose RS-485 Remote I/O modules (I-7000 series) or expansion units (RU-87Pn or I-87Kn) plugged with high profile
I-87K serial I/O modules. |
Each iP-8447/ 8847 has a fixed Ethernet port No. of 502. With Modbus TCP/IP protocol, up to 6 PCs can link to one iP-8447/ 8847.
With Modbus RTU Slave protocol, another PC or MMI can link to the COM1 (RS-232) or one of COM2 (RS-485), COM3 (RS-232/
485) port of the iP-8447/ 8847. Therefore, the maximum number of clients that can be linked is 8. |
| |
|
| |
|
|
| |
| Detect Hot-Swap I-87K (High Profile) I/O Status |
In ISaGRAF Workbench, you must connect the I/O board to the "I/O connection" windows correctly and select the "io_state" board
then you can observe the I/O status. When you Hot-Swap the I-87K (High Profile) I/O, the message will show on the front panel of
iP-8x47. |
| |
|
| |
|
|
| |
| FRnet I/O ( How to use ? ) |
Fast Scan, about 3 ms/per FRnet scan. (This depends on your ISaGRAF PLC program's scan time, if the ISaGRAF PLC scan time
is 8ms, then the scan time for all will be 8 ms, not 3 ms.) |
| iP-8447/ 8847 support max. 4 pcs. of I-8172W ( Max. channel 1024 D/I and 1024 D/O) |
| |
|
| |
|
|
| |
| Ethernet Redundancy for HMI / PC / SCADA |
| If one Ethernet cable is broken or damaged, the other one will still handle the Ethernet data exchange for HMI / PC / SCADA. |
| |
|
| |
|
|
| |
| Modbus RTU/TCP Slave Ports ( How to use ? ) |
| Modbus RTU (RS-232/485/422): max. 2 Modbus RTU Slave ports |
| Can use COM1 (RS-232) or one of COM2 (RS-485) and COM3 (RS-232/ 485) |
| Modbus TCP/IP: max. 6 Modbus TCP Slave connections |
| |
 |
| |
| |
| Modbus RTU/ASCII Master Ports ( How to use ? ) |
| Modbus RTU/ASCII (RS-232/485/422): max. 2 Modbus RTU/ASCII Master ports |
| Can use COM1, COM2, COM3, COM4 or (COM5, if plugged one I-8112iW/ 14W/ 14iW/ 42iW/ 44iW RS232/485 expansion board) |
| Can link to Modbus PLC or M-7000 I/O or Modbus devices (Power meter, temperature controller, inverterˇK) |
| |
|
| |
|
|
| |
| SMS: Short Message Service ( How to use ? ) |
The ISaGRAF PACs can integrate with a GSM Modem to support SMS: Short Message Service. This allows user to request information or control something from his own cellular phone to the ISaGRAF PAC. Beside, the PAC can also send information and alarms to user's cellular phone.
|
|
|
|
| |
|
|
| |
| Wireless Communication |
| SST-2450 is a spread spectrum radio modem with controlling an RS-232/RS-485 interface port. |
| RF-87K1/2 is a radio remote I/O unit with 1or 2 slot of i-87k series I/O modules. |
User can use iP-8447/ 8847 with two or more SST-2450 wireless communication modules to data acquisition and control
applications between a host and remote I/O modules. |
| |
|
| |
|
|
| |
| Data Exchange: Fbus & Ebus |
| Fbus ( RS-485 Network ) |
| Each iP-8447/ 8847 can use its other RS-485 port (COM3) to talk to each other via the Fbus communication mechanism. Fbus can be used to broadcast data to each controller or each controller can request to send or receive data from any other controller on the same Fbus network. |
| Ebus ( Ethernet Network) |
| Each iP-8447/ 8847 can use its Ethernet port (LAN2) to talk to each other via the Ebus communication mechanism. When the PC is talking with controllers via Ethernet, the controllers can also talk to each other via the same Ethernet; It makes the configuration more flexible and faster. |
|
| |
|
| |
|
|
| |

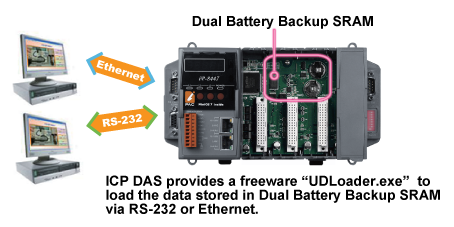

| Data Log |
| Data, date & time can be stored at Dual Battery Backup SRAM, and then PC can load these data via RS-232 or Ethernet. |
| |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| Power Supply |
|
| Power Input |
+10 ~ +30 VDC , 20 W (when I/O slots are empty) |
| Isolation |
1 kV |
| Redundant Power Input |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
iP-8447: 0.85 A, 5 V supply to CPU; 5.51 A, 5 V supply to I/O expansion slots, total 30 W
iP-8847: 0.9 A, 5 V supply to CPU; 5.1 A, 5 V supply to I/O expansion slots, total 30 W |
| Consumption |
iP-8447: 6.7 W (0.28 A @ 24 V), iP-8847: 7.2 W (0.3 A @ 24 V) |
| General Environment |
|
| Temperature |
Operating: -25 ˘XC ~ +75 ˘XC (-13 ˘XF ~ +167 ˘XF)
Storage : -30 ˘XC ~ +85 ˘XC (-40 ˘XF ~ +176 ˘XF) |
| Humidity |
5 ~ 95 % (non-condensed) |
| System |
|
| CPU |
80186, 80 MHz (16-bit) or compatible |
| Watchdog Timer |
Yes, Default = 0.8 second |
| RTC (Real Time Clock) |
Gives seconds, minutes, hours, day of week, day of month, month &, valid up from 1980 ~ 2079 |
| SRAM |
768 KB |
| Dual Battery Backup SRAM |
512 KB (for 5 years data retain), support up to 1024 retain variables |
| FLASH Memory |
512 KB, 100,000 erase/write cycles with Flash protection switch |
| NVRAM |
31 bytes, battery backup, data valid up to 5 years |
| Expansion Flash |
Micro SD socket (can support up to 2GB Micro SD card) |
| EEPROM |
16K, retention > 40 years; 1,000,000 erase/write cycles |
| Serial Number |
Yes, 64-bit Hardware Serial Number |
| SMMI |
Yes, on the front panel. 4 push buttons, 3 green programmable LEDs, 1 red power LED and 5-digit 7-Seg. LED (Display message, value, input value, simulate input & output.) |
| NET ID |
8 dip switch to set NET ID as 1 ~ 255 |
| I/O Expansion Slots |
|
| Slot Number |
iP-8447: 4 empty slots, iP-8847: 8 empty slots. For high profile parallel (I-8K) & serial (I-87K) I/O boards |
| Hot-Swap |
Support Hot-Swap I-87K high profile I/O module on the slot 0~7 if the module need to be replaced. |
| Serial ports |
|
| Dual Ethernet |
10/ 100 Mbps x 2, Program download port. |
| USB1.1 |
1 (use for update firmware, donˇ¦t use with COM1) |
| COM1 |
RS-232: TXD, RXD, GND; Speed: 115200 bps max. Program downloads port. |
| COM2 |
RS-485: D+, D-; Speed: 115200 bps max.; 3000 VDC isolation |
| COM3 |
RS-232/485; RS-232: TXD,RXD,RTS,CTS,GND, RS-485: D+, D-;
Speed: 115200 bps max. Program downloads port. |
| COM4 |
RS-232: TXD,RXD,RTS,CTS,DSR,DTR,CD,RI,GND. Speed: 115200 bps max. Full modem signals |
| Motion control |
|
| |
Can integrate with one I-8091W (2-axes) or two I-8091W (4-axes) to do motion control. Ethernet communication is also available when doing motion control. |
| PWM Output |
|
| Pulse Width Modulation |
8-channels max. for one controller. 500Hz max. For Off=1 & On=1 ms Output Square Curve: Off: 1 ~ 32767 ms, On: 1 ~ 32767 ms. Optional D/O Boards: I-8037W, 8041W, 8041AW, 8042W, 8050W, 8054W, 8055W, 8056W, 8057W, 8060W, 8063W, 8064W, 8068W, 8069W (Relay Output boards can not generate fast square pulse ) |
| Counters |
|
| Parallel D/I Counter |
8-channels. max. for 1 controller. Counter Val: 32-bit.; 500 Hz max. Min. ON & OFF width must >1ms Optional D/I boards: I-8040W, 8040PW, 8042W, 8048W, 8050W, 8051W, 8052W, 8053W, 8053PW, 8054W, 8055W, 8058W, 8063W. |
| Serial D/I Counter |
Counter input: 100 Hz max. Counter value: 0 ~ 65535 (16-bit)
Optional serial I-87K D/I boards: I-87040W, 87046W, 87051W, 87052W, 87053W, 87053W-A5, 87054W, 87055W, 87058W, 87059W, 87063W. |
| Remote D/I Counter |
All remote I-7000 & I-87K D/I modules support counters. 100 Hz max. value: 0 ~ 65535 |
| High Speed Counter |
I-87082W, 87088W: 500 kHz max. 32-bit; I-8080W: 450 kHz max. 32-bit |
| Protocols |
|
| Modbus Master Protocol |
Up to 2 COM Ports, COM1 ~ (COM5 in multi serial port board) can support Modbus RTU Master or ASCII Master protocol to connect to other Modbus Slave devices. Max. Modbus_xxx Function Block amount for 2 ports: 128. |
| Modbus Slave Protocol |
Up to 2 COM Ports, COM1 and one of (COM2, COM3) can support Modbus RTU Slave protocol for connecting ISaGRAF, PC/HMI/OPC Server & MMI panels. |
| Modbus TCP/IP Protocol |
2 Ethernet ports support Modbus TCP/IP Slave Protocol for connecting ISaGRAF & PC/HMI.(Max. 6 connections) |
| Remote I/O |
One of COM2 or COM3 or COM4 supports I-7000 I/O modules & [(I-87Kn base or RU-87P1/2/4/8)+ I-87K High Profile I/O boards] as Remote I/O. Max. 64 Remote I/O module for one PAC |
| Fbus |
Built-in COM3 Port to exchange data between ICP DASˇ¦s ISaGRAF PACs. |
| Ebus |
To exchange data between ICP DASˇ¦s ISaGRAF Ethernet PACs via Ethernet port. (The LAN2: upper port ONLY) |
SMS:
Short Message Service |
One of COM4 or (COM5 in multi serial port board) can link to a GSM modem to support SMS. User can request data/control the controller by cellular phone. The controller can also send data & alarms to userˇ¦s cellular phone. Optional GSM/GPRS modem: Supreme (850/900/1800/1900 GSM/GPRS External Modem) or visit to http://www.icpdas.com/products/GSM_GPRS/wireless/GSM_GPRS_modem.htm
for recommended GSM/GPRS modem |
| User Defined Protocol |
User can write his own protocol applied at COM1, COM2, COM3, COM4 (& COM5 ~ COM20 if multi-serial port boards are plugged) by serial communication function blocks. |
| Modem_Link |
COM4 can connect a general Modem. Supports PC remotely download & monitor the controller. |
| MMICON / LCD |
One of COM3 or COM4 supports ICP DASˇ¦s MMICON. The MMICON is featured with a 240 x 64 dot LCD and a 4 x 4 Keyboard. User can use it to display picture, string, integer, float, and input a character, string, integer and float. |
| Redundant Bus7000 |
Two ISaGRAF PACs can link to remote I-7000 & I-87K High profile I/O modules at the same time. Only one controller is active to control these Remote I/Os. If one is dead, the other one will take over the control of Remote I/Os. |
| CAN / CANopen |
iP-8x47 can use its COM1,3,4 or (COM5 ~ COM12 resides at the I-8112iW / 8114W/8114iW RS-232 expansion board) to connect one I-7530 : the RS-232 to CAN converter to support CAN and CANopen devices and sensors. One iP-8x47 supports max.3 RS-232 ports to connect max.3 I-7530. Please refer to www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-086. |
| FRnet I/O |
Support Max.4 I-8172W FRnet Master cards to connect FRnet I/O modules (Max. 1024-ch. D/I + 1024-ch. D/O) |
| Sending E-mail |
Actively or passively sending E-mail via Ethernet port through internet. Max.10 receivers for each sending and can send E-mail with an attached file.?(Max. file size is about 488 KB) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
Ethernet
ISaGRAF iPAC |
iP-8447-G
iP-8847-G |
4/ 8 slots Faster CPU (80 MHz) Dual Ethernet ISaGRAF PAC
80186, 80MHz, 10/100 Mbps |
Development
Software |
ISaGRAF-256-E
ISaGRAF-256-C |
ISaGRAF Workbench Software Ver.3 (256 I/O Tags)
with application book (E: English book; C: Chinese book) |
ISaGRAF-32-E
ISaGRAF-32-C |
ISaGRAF Workbench Software Ver.3 (32 I/O Tags) ReadMe
with application book (E: English book; C: Chinese book
Note: ISaGRAF-32 can not upgrade to become ISaGRAF-256 |
Application
Book |
ISaGRAF Book-E |
ISaGRAF Application Book (English) |
| ISaGRAF Book-C |
ISaGRAF Application Book (Traditional Chinese) |
| Optional |
| Ethernet Switch |
NS-205 CR |
Unmanaged 5-Port Industrial Ethernet Switch (RoHS) |
| NS-208 CR |
Unmanaged 8-Port Industrial 10/100 Base-T Ethernet Switch (RoHS) |
| Remote I/O Unit |
RU-87Pn |
Remote intelligent I/O expansion unit
( It used to expand I-87K series I/O modules over the RS-485 ) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| PWR-24/110 |
Wall-plug power Adapter / 110 VAC, 60 Hz, 4.8 W |
| PWR-24/220F |
Wall-plug power Adapter / 220 VAC, 60 Hz, 2.4 W |
| DIN-KA52F |
24 V / 1 Amp. DIN-Rail Mounting Power supply |
Note1:
The I-7000 & I-87K series provides cost-effective protection and signals conversion for a wide range of valuable industrial control signals and control systems. Our product line includes RS-232 to RS-485 converter, digital I/O, timer/counter, Data Display, and application programs. I-7000 modules are good for a small amount of I/O channels, while i-87kn I/O expansion units are good for medium amount of channels. |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| I-8x17 & I-8x37-80 |
ISaGRAF PAC (80188, 40 MHz ) &
Faster CPU Ethernet ISaGRAF PAC (80186, 80 MHz, 10 Mbps) |
| WP-8x47 |
Ethernet ISaGRAF PAC ( PXA270 CPU, 520 MHz, Dual-LAN: 10/100 Mbps) |
| WinCon-8x47 |
Ethernet ISaGRAF PAC (Intel Strong ARM CPU, 206 MHz, Dual-LAN: 10/100 Mbps) |
| ŁgPAC-7186EG |
Advanced Ethernet ISaGRAF Palm-Size PAC (80186, 80 MHz, 10/100M Base-TX) |
| I-7188EG |
Ethernet ISaGRAF Palm-Size PAC (80188, 40 MHz, 10M Base-T) |
| I-7188XG |
ISaGRAF Palm-Size PAC (80188, 40 MHz) |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
