WP-5000 Series (Win-GRAF based)
WP-5238-CE7



WP-5238-CE7


  Cortex A8,1 GHz CPU
  512 MB SDRAM and 256 MB Flash
  Windows CE 7.0 Professional
  Embedded Win-GRAF SoftLogic (IEC 61131-3)
  Hard Real-Time Capability
  64-bit Hardware Serial Number for Software Protection
  I/O Expansion Bus
  10/100/1000M Ethernet Port
  4 Serial Ports (RS-232/485)
  Operating Temperature: -25 ~ +75 °C












The Win-GRAF WP-5000 Series (WP-5238-CE7) is the new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS. This series PAC is equipped an Cortex A8 CPU (1 GHz) and running a windows CE.NET 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in micro SD, the Win-GRAF WP-5000 series can save application program, image file and data.

The benefits of running Windows CE on a WinPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.

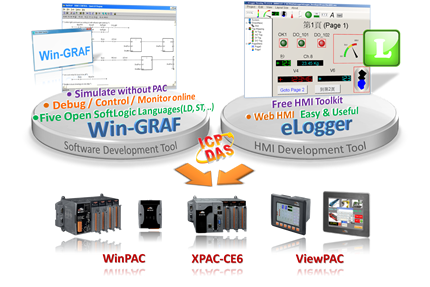

Win-GRAF is a powerful, PLC-like, softlogic development software.It is installed on PC with windows 7 or 8 (or later version). It supports the international PLC language standard - IEC 61131-3 - Ladder Diagram (LD), Function Block Diagram (FBD), Sequential Function Chart (SFC), Structured Text (ST), Instruction Set (IL), suitable to develop applications for the full range of Win-GRAF PACs from ICP DAS.

IEC 61131-3 Standard Open PLC Syntax (LD, FBD, SFC, ST, IL)
Using ST Syntax in the FBD or LD Program
Event Triggered Data Binding (Exchange Data between PACs)
Online Debugging/Control/Monitoring, Offline Simulation
On Line Change
Various Protocols:
    - Modbus TCP/UDP, Modbus RTU/ASCII Master
    - Modbus TCP, RTU Slave
    - DCON ...
Plenty of Functions, Function Blocks, I/O Boards
Redundancy (For XP-8x38-CE6 PAC only)


TOP | HOME
 Note: Except for specially noted items, all applications are applicable to the Win-GRAF PAC (i.e., WP-8xx8, WP-5xx8-CE7,
           WP-8xx8-CE7, WP-9xx8-CE7, VP-x2x8-CE7, XP-8x38-CE6 PAC).

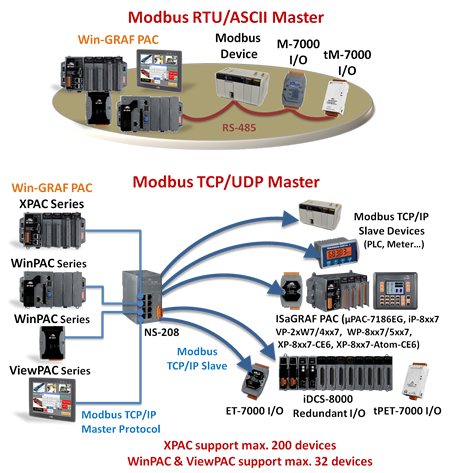

Schedule Control  Modbus Master Ports



On Line Change
Replace the current running project to a new modified one without stopping the project.

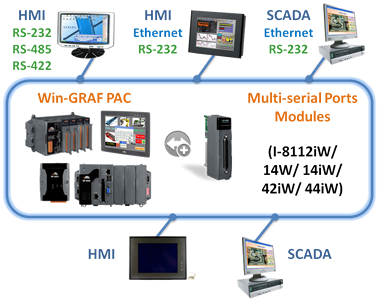

  eLogger HMI Modbus RTU/TCP Slave Ports

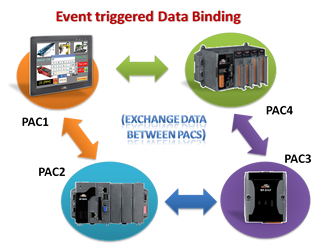

  Event Triggered Data Binding DCON Remote I/O
Exchange data between PACs.
  Intelligent Win-GRAF 3G Solution
Only the WG-Communication Server (behavior like a Cloud Server) needs a public IP (support Domain Name).
   Other PACs and PCs that connect to this Server no need a public IP.
The user can monitor the remote PAC by using a 3G wireless network or an intranet.
The user can use the Win-GRAF Workbench to connect to a remote PAC to debug/update the Win-GRAF program or
   update the Win-GRAF PAC Driver.
The PAC can actively send a Log File to a PC (WG-Communication-Server).

  Support VS 2008 Development
The Win-GRAF PACs support to use VS 2008 (VB.net, C#) to develop user own HMI and data management
   programs, and can exchange variables with the Win-GRAF control programs.


  Create Your Own Functions and Function Blocks
For some reason (like business protection, integration with your own product protocol, and etc.), you can develop your
   own functions and function blocks by VS 2008. Then, you can use these functions and function blocks in
   the Win-GRAF project.

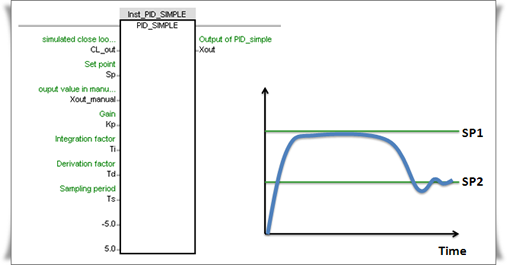

  PID Control
Can Control more than 200 PID in one PAC.



TOP | HOME
Models
WP-5238-CE7
System Software
OS Windows CE 7.0 Core
.Net Compact Framework 3.5
Embedded Service FTP server, Web server
SDK Provided Dll for Visual Studio .Net 2008
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
Development Software
Win-GRAF
Software
Win-GRAF IEC 61131-3 standard
Languages LD, ST, FBD, SFC, IL
Max. Code Size 2 MB
Scan Time 3 ~ 15 ms for normal program;
15 ~ 50 ms for complex or large program
Non-Win-GRAF Options: VS.NET 2008 (VB.NET, C#.NET, C)
CPU Module
CPU Cortex A8, 1 GHz
DDR3 SDRAM 512 MB
Flash 256 MB
FRAM 64 KB (for retain variables)
Expansion Flash Memory microSD socket with a 4 GB microSD card (support up to 32 GB)
RTC (Real Time Clock) Provides seconds, minutes, hours, day of week, month, year
64-bit Hardware Serial Number Yes, for Software Copy Protection
Dual Watchdog Timers Yes
LED Indicators 1 LED for Power and Running; 2 LED for user defined
Rotary Switch Yes (0 ~ 9)
VGA & Communication Ports
VGA Yes. Resolution: 640 × 480, 800 × 480, 800 × 600, 1024 × 768
Ethernet RJ-45 x 1, 10/100/1000 Base-T ( Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host) 1
COM 1 RS-232 (RxD, TxD and GND); Non-isolated
COM 2 RS-232 (RxD, TxD and GND); Non-isolated
COM 3 RS-485 (Data+, Data-); Non-isolated
COM 4 RS-485 (Data+, Data-); 2500 VDC isolated
I/O Expansion
I/O Expansion Bus Yes, one optional XV-board
Mechanical
Dimensions (W x L x H) 91 mm x 132 mm x 52 mm
Installation DIN-Rail Mounting
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -40 ~ +80°C
Ambient Relative Humidity 10 ~ 90% RH (non-condensing)
Power
Input Range +10 ~ +30 VDC
Consumption 4.8 W

TOP | HOME
Protocols (Note that certain protocols require optional devices)
NET ID 1 ~ 255, for Modbus TCP/RTU Slave, user-assigned.
Modbus TCP Master A max. of 200 IP links to access/control the devices supporting Standard Modbus TCP Slave protocol.
Modbus RTU/ASCII Master A max. of 4 ports: COM1 ~ 4 to connect other Modbus Slave devices(Like M-7000).
Recommend connecting no more than 32 devices in each port for better scan rate.
Modbus RTU Slave A max. of 4 ports: COM1 ~ 4 for connecting SCADA/HMI.
Modbus TCP Slave Two Ethernet port (LAN1) support up to 64 connections. If the PAC uses 1 connection to connect each PC/HMI, it can connect up to 64 PCs/HMIs; If the PAC uses 2 connections to connect each PC/HMI, it can connect up to 32 PCs/HMIs; If one of the Ethernet port malfunctions, the other one can still be used to connect the PC/HMI.
User-defined Protocol Custom protocols can be applied at COM1~ 4by using Serial communication functions or function blocks.
DCON Remote I/O A max. of 4 RS-485 ports: COM1 ~ 4. Each port can connect max. 50 nos I-7000 series modules or 50 nos I-87xxxW I/O modules in expansion units (I-87K4, I-87K8, I-87K9, RU-87P8, RU-87P4).
Recommend connecting no more than 32 modules in each port for better scan rate.
Local I/O Modules Supports one I/O XV-board. (Refer Optional I/O XV-board List) (*)
App Protection Using the unique 64-bit (8 bytes) PAC serial number to generate a protection password by your own algorithm to protect your Win-GRAF application. Then, if someone intend to copy your application in the PAC to another new PAC with the same PAC model, this application will not work properly in that new PAC.
Data Binding Exchange data between ICP DAS Win-GRAF PAC via Ethernet port (LAN1). The data transmission is event triggered. It is much efficient than polling way.
On Line Change For application field that not allowed to stop the Win-GRAF program and wish to run a new program modified a little from the original program.
Modbus RTU I/O When software enables Modbus RTU Master function, the PAC can connect ICP DAS M-7000 and tM series and LC series I/O modules which support Modbus RTU protocol.
Modbus TCP I/O When software enable Modbus TCP Master function, the PAC can connect ICP DAS I-8KE4/8-MTCP, PETL-7000, tPET/tET series I/O modules which support Modbus TCP protocol.

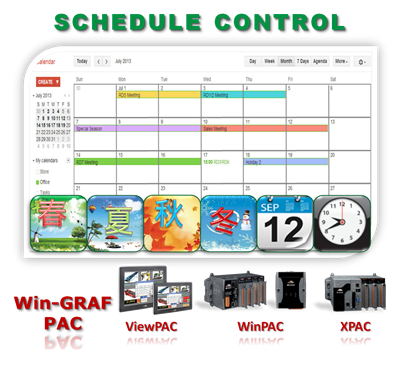

Schedule Control Supports the "Schedule-Control Utility" (free) to implement schedule control. Each PAC can control max. 10 Targets (devices) with different schedule settings in each day / holiday / special day / season / year.
Retain Variables Built-in the fast retain memory that can retain up to 12,000 Win-GRAF variables.
File Access and Data Log The Win-GRAF supports file operation functions to read/write files in the PAC's micro_SD or flash memory to do data log or file access.
eLogger HMI Support to run HMI program (developed by the eLogger) together with the Win-GRAF logic-control program in the same PAC.
Optional I/O XV-board List (Go to XV-board Selection Guide)
Digital Input (DI) XV110
Digital Input/Output (DIO) XV107, XV107A
Digital Output (DO) XV111, XV111A
Relay Output XV116
Multifunction (DIO, AIO) XV308, XV310
GPS GPS-721
* Note: The expansion I/O is located in the optional XV-board series if it is installed inside the WP-5xx8-CE7.

TOP | HOME
WP-5238-CE7 CR Win-GRAF based WP-5000 PAC with WinCE 7.0 and one LAN port (RoHS)

Win-GRAF Development Software
Win-GRAF Workbench Win-GRAF Workbench Software (Large I/O Tags) with one USB Dongle.

XV-board Add-on I/O Expansion Board
Power Supply 24 VDC Power Supply with DIN-Rail Mounting (RoHS)
Ethernet Switch 5 to 8 Ports Real-time Redundant Ring Ethernet Switch (RoHS)
5 to 16 Ports Unmanaged Industrial Ethernet Switch (RoHS)
Converter RS-232/422/485 Converter (RoHS)
USB to RS-232/422/485 Converter (RoHS)
TPM-4100 / TP-4100 10.4" (800 x 600) resistive touch panel monitor with RS-232 or USB interface
